PM20C05H Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

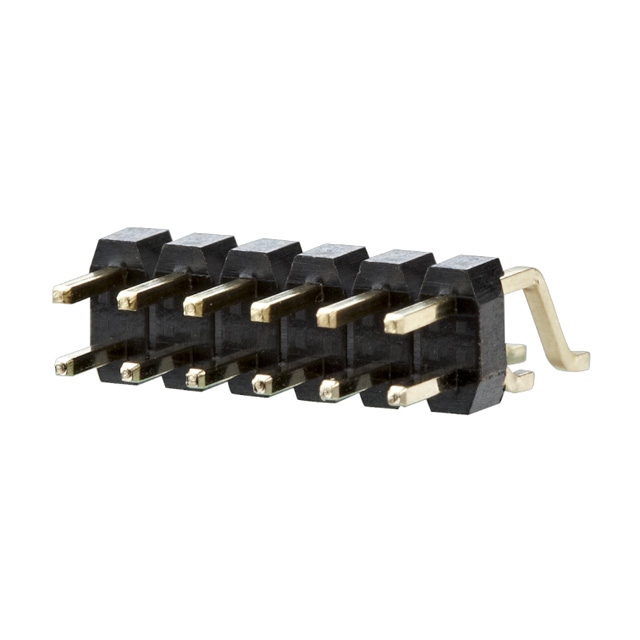

PIN HEADER, SMT, DUAL ROW, 2.00
| Part | Contact Finish Thickness - Mating | Number of Positions | Insulation Material | Number of Positions Loaded | Termination | Contact Type | Insulation Height [z] | Insulation Height [z] | Insulation Color | Contact Finish - Mating | Mounting Type | Row Spacing - Mating | Row Spacing - Mating | Contact Length - Mating | Contact Length - Mating | Fastening Type | Number of Rows [custom] | Contact Material | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Pitch - Mating | Pitch - Mating | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Flash | 10 | Polyethylene | All | Solder | Male Pin | 4 mm | 0.157 in | Black | Gold | Right Angle Surface Mount | 2 mm | 0.079 in | 0.12 in | 3.05 mm | Push-Pull | 2 | Copper Alloy | Header | -40 C | 105 ░C | Unshrouded | 0.079 " | 2 mm | Square |
