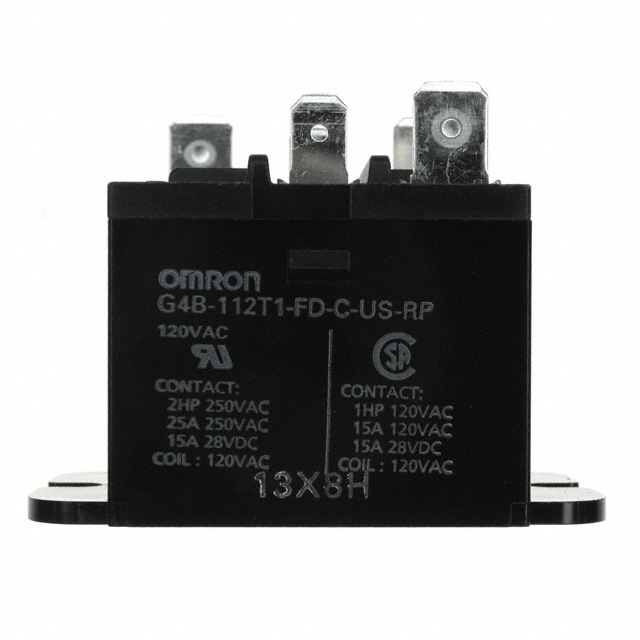

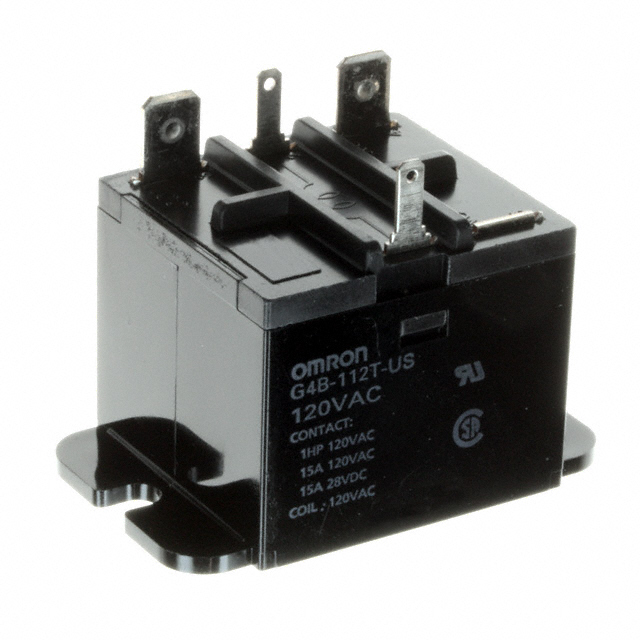

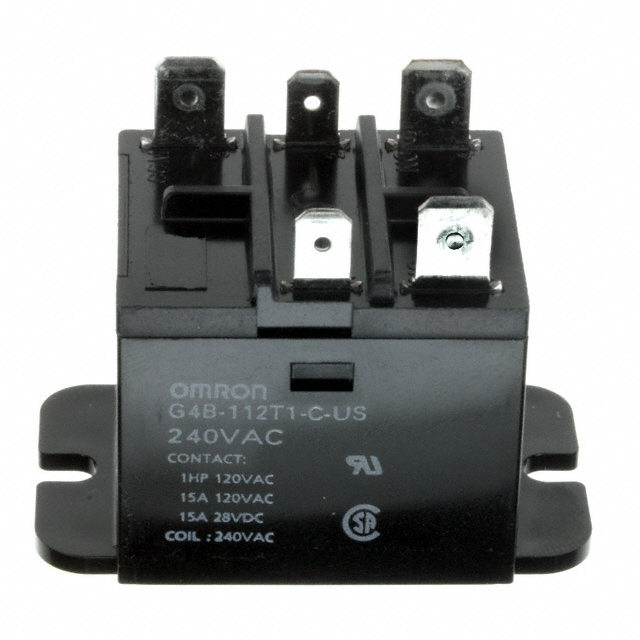

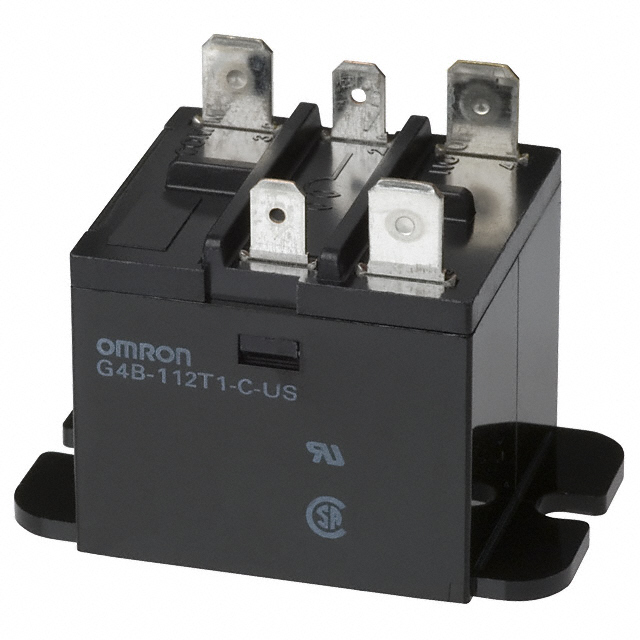

G4B-112 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE SPST 15A 120V
| Part | Contact Rating (Current) | Approval Agency | Coil Current | Termination Style | Contact Material | Must Release Voltage | Coil Type | Must Operate Voltage | Load - Max Switching | Operating Temperature [Max] [custom] | Operating Temperature [Min] [custom] | Switching Voltage | Mounting Type | Contact Form | Relay Type | Release Time | Coil Resistance | Coil Voltage | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 15 A | CSA UR | 10.8 mA | Quick Connect - 0.187"/0.250" | Silver Cadmium Oxide (AgCdO) | 36 VAC | Non Latching | 96 VAC | 1875 W 3750 VA | 55 °C | -10 °C | 125 VDC 250 VAC | Chassis Mount | SPST-NO (1 Form A) | General Purpose | 20 ms | 11.1 kOhms | 120 VAC | 20 ms |
 Omron Electronics Inc-EMC Div | 25 A | CSA UR | 108 mA | Quick Connect - 0.187"/0.250" | Silver Indium Tin (AgInSn) | 3.6 VAC | Non Latching | 9.6 VAC/DC | 3125 W 6250 VA | 55 °C | -10 °C | 125 VDC 250 VAC | Chassis Mount | SPDT (1 Form C) | General Purpose | 20 ms | 111.1 Ohms | 12 VAC/DC | 20 ms |
 Omron Electronics Inc-EMC Div | 15 A | CSA UR | 10.8 mA | Quick Connect - 0.110"/0.250" | Silver Cadmium Oxide (AgCdO) | 36 VAC | Non Latching | 96 VAC | 1875 W 3750 VA | 55 °C | -10 °C | 125 VDC 250 VAC | Chassis Mount | SPDT (1 Form C) | General Purpose | 20 ms | 11.1 kOhms | 120 VAC | 20 ms |
Omron Electronics Inc-EMC Div | 25 A | CSA UR | 54 mA | Quick Connect - 0.187"/0.250" | Silver Indium Tin (AgInSn) | 7.2 VAC | Non Latching | 19.2 VAC | 3125 W 6250 VA | 55 °C | -10 °C | 125 VDC 250 VAC | Chassis Mount | SPST-NO (1 Form A) | General Purpose | 20 ms | 444.4 Ohms | 24 VAC | 20 ms |
Omron Electronics Inc-EMC Div | 25 A | CSA UR | 54 mA | Quick Connect - 0.187"/0.250" | Silver Indium Tin (AgInSn) | 7.2 VAC | Non Latching | 19.2 VAC | 3125 W 6250 VA | 55 °C | -10 °C | 125 VDC 250 VAC | Chassis Mount | SPDT (1 Form C) | General Purpose | 20 ms | 444.4 Ohms | 24 VAC | 20 ms |
Omron Electronics Inc-EMC Div | 15 A | CSA UR | 10.8 mA | Quick Connect - 0.187"/0.250" | Silver Cadmium Oxide (AgCdO) | 36 VAC | Non Latching | 96 VAC | 1875 W 3750 VA | 55 °C | -10 °C | 125 VDC 250 VAC | Chassis Mount | SPDT (1 Form C) | General Purpose | 20 ms | 11.1 kOhms | 120 VAC | 20 ms |
Omron Electronics Inc-EMC Div | 15 A | CSA UR | 5.4 mA | Quick Connect - 0.187"/0.250" | Silver Cadmium Oxide (AgCdO) | 72 VAC/DC | Non Latching | 192 VAC | 1875 W 3750 VA | 55 °C | -10 °C | 125 VDC 250 VAC | Chassis Mount | SPST-NO (1 Form A) | General Purpose | 20 ms | 44.4 kOhms | 240 VAC | 20 ms |
 Omron Electronics Inc-EMC Div | 15 A | CSA UR | 5.4 mA | Quick Connect - 0.187"/0.250" | Silver Cadmium Oxide (AgCdO) | 72 VAC/DC | Non Latching | 192 VAC | 1875 W 3750 VA | 55 °C | -10 °C | 125 VDC 250 VAC | Chassis Mount | SPDT (1 Form C) | General Purpose | 20 ms | 44.4 kOhms | 240 VAC | 20 ms |
Omron Electronics Inc-EMC Div | 15 A | CSA UR | 54 mA | Quick Connect - 0.110"/0.250" | Silver Cadmium Oxide (AgCdO) | 7.2 VAC | Non Latching | 19.2 VAC | 1875 W 3750 VA | 55 °C | -10 °C | 125 VDC 250 VAC | Chassis Mount | SPDT (1 Form C) | General Purpose | 20 ms | 444.4 Ohms | 24 VAC | 20 ms |
Omron Electronics Inc-EMC Div | 25 A | CSA UR | 10.8 mA | Quick Connect - 0.187"/0.250" | Silver Indium Tin (AgInSn) | 36 VAC | Non Latching | 96 VAC | 3125 W 6250 VA | 55 °C | -10 °C | 125 VDC 250 VAC | Chassis Mount | SPDT (1 Form C) | General Purpose | 20 ms | 11.1 kOhms | 120 VAC | 20 ms |
