1N4007 Series

Catalog

DIODE GEN PURP 1KV 1A DO41

Part	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Mounting Type	Technology	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Package / Case	Current - Average Rectified (Io)	Capacitance @ Vr, F	Speed [Min]

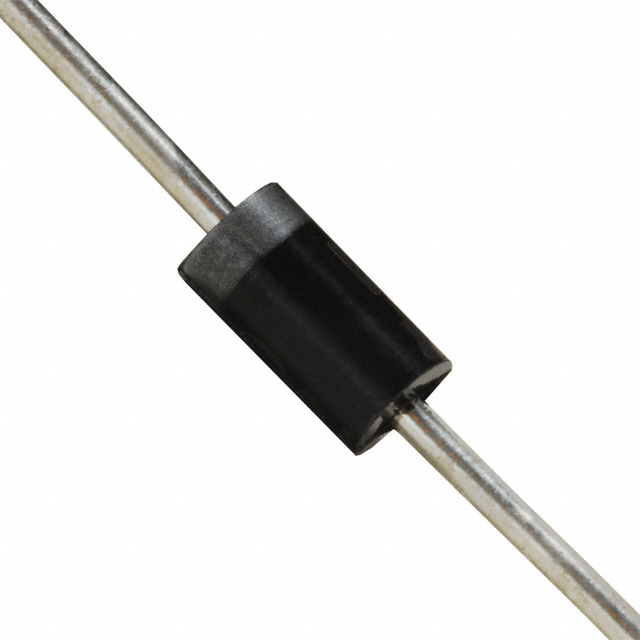

Central Semiconductor Corp 1N4007GPP TR	1.1 V	DO-41	Through Hole	Standard	5 µA	175 ░C	-65 C	2 µs	1000 V	Axial DO-204AL DO-41	1 A	8 pF	200 mA 500 ns

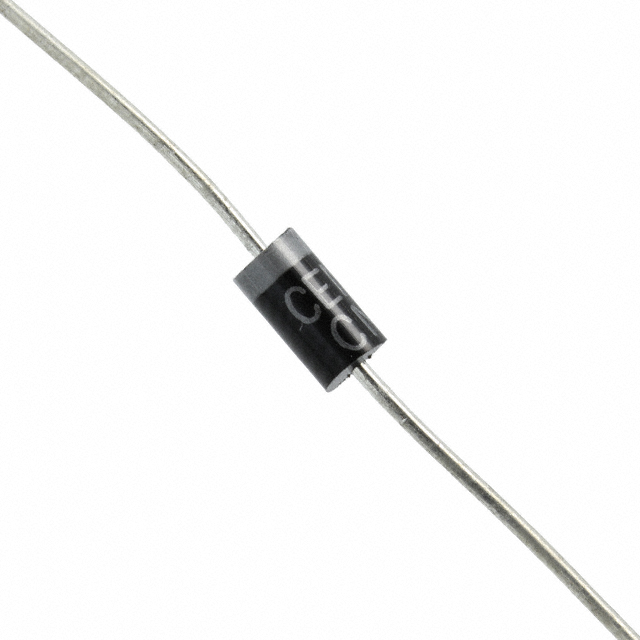

Central Semiconductor Corp 1N4007 BK	1.1 V	DO-41	Through Hole	Standard	5 µA	175 ░C	-65 C		1000 V	Axial DO-204AL DO-41	1 A		200 mA 500 ns
