EP53A7 Series
Manufacturer: Altera
Beta
⌘K
DC DC CONVERTER 1.8-3.3V 3W
| Part | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Voltage - Input (Min) [Min] | Type | Features | Voltage - Input (Max) [Max] | Control Features | Efficiency | Current - Output (Max) [Max] | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Package / Case | Supplier Device Package | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

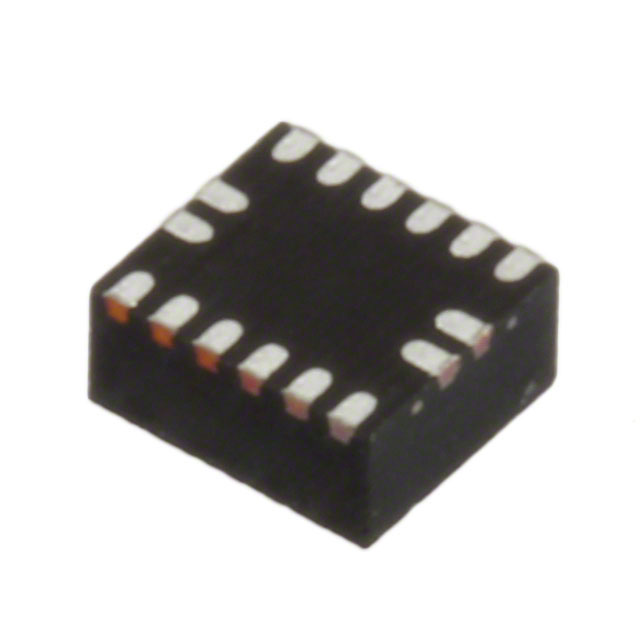

 Altera | 3.3 V | 1.8 V | 0.12 in | 3 mm | 3 mm | 1.1 mm | 0.04 in | 0.12 inches | 2.4 V | Non-Isolated PoL Module | OCP OTP Remote On/Off SCP UVLO | 5.5 V | Active High Enable | 94 % | 1 A | 1 | 85 °C | -40 C | ITE (Commercial) | 16-PowerTFQFN Module | 16-QFN (3x3) | Surface Mount |
Altera | 3.3 V | 1.8 V | 0.12 in | 3 mm | 3 mm | 1.1 mm | 0.04 in | 0.12 inches | 2.4 V | Non-Isolated PoL Module | OCP OTP Remote On/Off SCP UVLO | 5.5 V | Active High Enable | 94 % | 1 A | 1 | 85 °C | -40 C | ITE (Commercial) | 16-PowerTFQFN Module | 16-QFN (3x3) | Surface Mount |
