T38112 Series

Catalog

CONN BARRIER STRIP 9CIRC 0.375"

Part	Material Flammability Rating	Top Termination	Bottom Termination	Current Rating (Amps)	Material - Insulation	Mounting Type	Terminal Screw Finish	Number of Rows	Barrier Type	Number of Wire Entries	Pitch [x]	Pitch [x]	Operating Temperature	Wire Gauge [Min]	Wire Gauge [Max]	Voltage Rating	Terminal Block Type	Terminal Screw Material	Number of Circuits	Number of Wire Entries [custom]	Number of Circuits [custom]
Curtis Industries T38112-09-0	UL94 V-0	Screws	PC Pin	20 A	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	1	2 Wall (Dual)	9	9.53 mm	0.375 in	105 C	12 AWG	22 AWG	300 VDC	Barrier Block	Brass

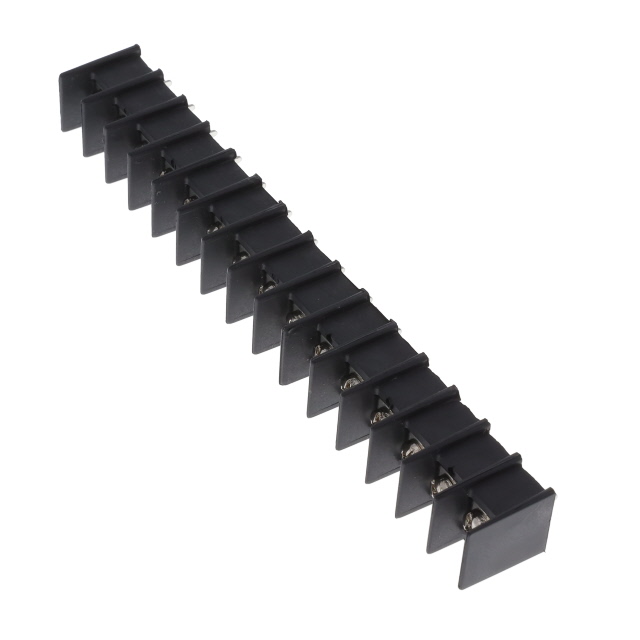

Curtis Industries T38112-15-0	UL94 V-0	Screws	PC Pin	20 A	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	1	2 Wall (Dual)	15	9.53 mm	0.375 in	105 C	12 AWG	22 AWG	300 VDC	Barrier Block	Brass	15
Curtis Industries T38112-19-0	UL94 V-0	Screws	PC Pin	20 A	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	1	2 Wall (Dual)	19	9.53 mm	0.375 in	105 C	12 AWG	22 AWG	300 VDC	Barrier Block	Brass	19
Curtis Industries T38112-22-0	UL94 V-0	Screws	PC Pin	20 A	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	1	2 Wall (Dual)		9.53 mm	0.375 in	105 C	12 AWG	22 AWG	300 VDC	Barrier Block	Brass	22	22
Curtis Industries T38112-26-0	UL94 V-0	Screws	PC Pin	20 A	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	1	2 Wall (Dual)	26	9.53 mm	0.375 in	105 C	12 AWG	22 AWG	300 VDC	Barrier Block	Brass	26
Curtis Industries T38112-25-0	UL94 V-0	Screws	PC Pin	20 A	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	1	2 Wall (Dual)	25	9.53 mm	0.375 in	105 C	12 AWG	22 AWG	300 VDC	Barrier Block	Brass	25
Curtis Industries T38112-14-0	UL94 V-0	Screws	PC Pin	20 A	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	1	2 Wall (Dual)	14	9.53 mm	0.375 in	105 C	12 AWG	22 AWG	300 VDC	Barrier Block	Brass	14
Curtis Industries T38112-08-0	UL94 V-0	Screws	PC Pin	20 A	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	1	2 Wall (Dual)	8	9.53 mm	0.375 in	105 C	12 AWG	22 AWG	300 VDC	Barrier Block	Brass			8
Curtis Industries T38112-21-0	UL94 V-0	Screws	PC Pin	20 A	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	1	2 Wall (Dual)	21	9.53 mm	0.375 in	105 C	12 AWG	22 AWG	300 VDC	Barrier Block	Brass	21
Curtis Industries T38112-23-0	UL94 V-0	Screws	PC Pin	20 A	Polypropylene (PP)	Chassis Panel Through Hole	Nickel	1	2 Wall (Dual)		9.53 mm	0.375 in	105 C	12 AWG	22 AWG	300 VDC	Barrier Block	Brass	23	23
