78938 Series

Catalog

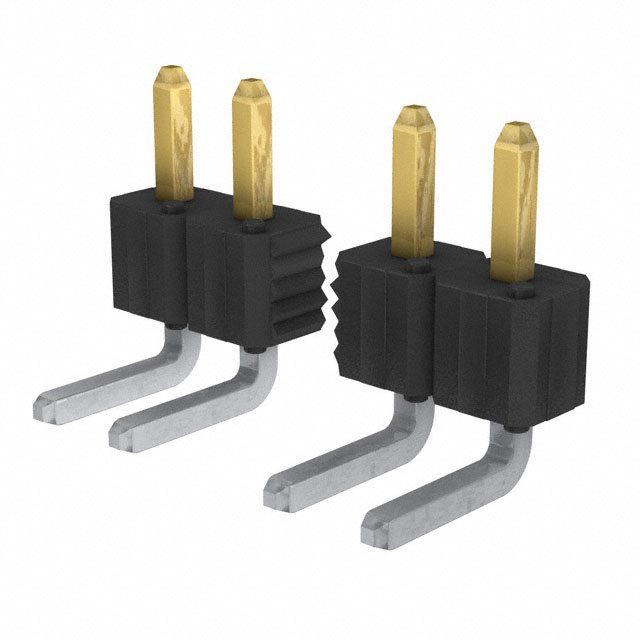

CONN HEADER R/A 16POS 2.54MM

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Shape	Mounting Type	Insulation Height [z]	Insulation Height [z]	Number of Rows	Shrouding	Current Rating (Amps)	Contact Type	Insulation Color	Number of Positions Loaded	Operating Temperature [Max]	Operating Temperature [Min]	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Contact Material	Number of Positions	Contact Finish - Mating	Connector Type	Material Flammability Rating	Contact Length - Mating	Contact Length - Mating	Fastening Type	Number of Positions	Contact Finish - Post
Amphenol ICC (FCI) 78938-116HLF	30 Áin	0.76 Ám	Solder	Square	Through Hole Right Angle	0.095 in	2.41 mm	1	Unshrouded	3 A	Male Pin	Black	All	125 °C	-65 ░C	0.1 in	2.54 mm	0.12 in	3.05 mm	Phosphor Bronze	16	Gold or Gold GXT™	Header	UL94 V-0	3.05 mm	0.12 in	Push-Pull
Amphenol ICC (FCI) 78938-119HLF	30 Áin	0.76 Ám	Solder	Square	Through Hole Right Angle	0.095 in	2.41 mm	1	Unshrouded	3 A	Male Pin	Black	All	125 °C	-65 ░C	0.1 in	2.54 mm	0.12 in	3.05 mm	Phosphor Bronze		Gold or Gold GXT™	Header	UL94 V-0	3.05 mm	0.12 in	Push-Pull	19
Amphenol ICC (FCI) 78938-410HLF	100 çin	2.54 çm	Solder	Square	Through Hole Right Angle	0.095 in	2.41 mm	1	Unshrouded	3 A	Male Pin	Black	All	125 °C	-65 ░C	0.1 in	2.54 mm	0.12 in	3.05 mm	Phosphor Bronze			Header	UL94 V-0	3.05 mm	0.12 in	Push-Pull	10	Tin

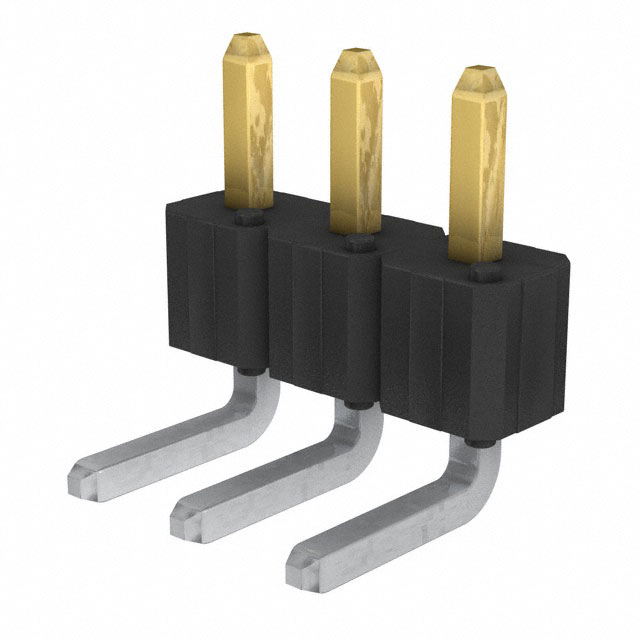

Amphenol ICC (FCI) 78938-103HLF	30 Áin	0.76 Ám	Solder	Square	Through Hole Right Angle	0.095 in	2.41 mm	1	Unshrouded	3 A	Male Pin	Black	All	125 °C	-65 ░C	0.1 in	2.54 mm	0.12 in	3.05 mm	Phosphor Bronze		Gold or Gold GXT™	Header	UL94 V-0	3.05 mm	0.12 in	Push-Pull
Amphenol ICC (FCI) 78938-135HLF	30 Áin	0.76 Ám	Solder	Square	Through Hole Right Angle	0.095 in	2.41 mm	1	Unshrouded	3 A	Male Pin	Black	All	125 °C	-65 ░C	0.1 in	2.54 mm	0.12 in	3.05 mm	Phosphor Bronze		Gold or Gold GXT™	Header	UL94 V-0	3.05 mm	0.12 in	Push-Pull	35

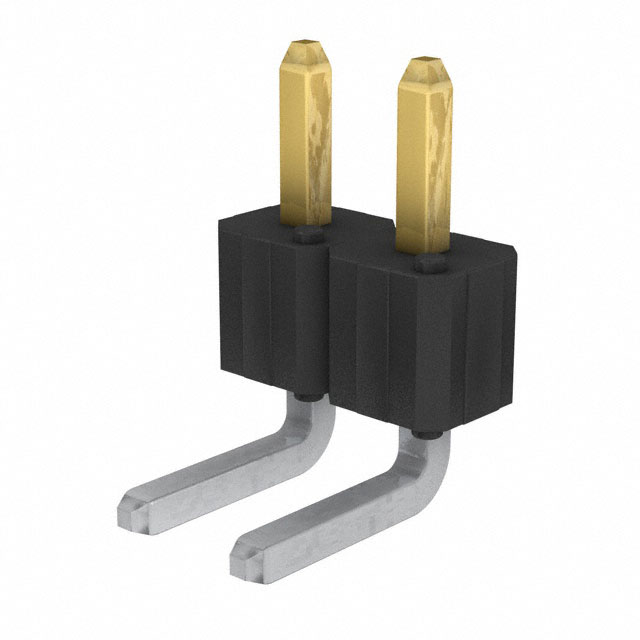

Amphenol ICC (FCI) 78938-202HLF	15 µin	0.38 µm	Solder	Square	Through Hole Right Angle	0.095 in	2.41 mm	1	Unshrouded	3 A	Male Pin	Black	All	125 °C	-65 ░C	0.1 in	2.54 mm	0.12 in	3.05 mm	Phosphor Bronze		Gold or Gold GXT™	Header	UL94 V-0	3.05 mm	0.12 in	Push-Pull	2
Amphenol ICC (FCI) 78938-404HLF	100 çin	2.54 çm	Solder	Square	Through Hole Right Angle	0.095 in	2.41 mm	1	Unshrouded	3 A	Male Pin	Black	All	125 °C	-65 ░C	0.1 in	2.54 mm	0.12 in	3.05 mm	Phosphor Bronze			Header	UL94 V-0	3.05 mm	0.12 in	Push-Pull	4	Tin
Amphenol ICC (FCI) 78938-123HLF	30 Áin	0.76 Ám	Solder	Square	Through Hole Right Angle	0.095 in	2.41 mm	1	Unshrouded	3 A	Male Pin	Black	All	125 °C	-65 ░C	0.1 in	2.54 mm	0.12 in	3.05 mm	Phosphor Bronze		Gold or Gold GXT™	Header	UL94 V-0	3.05 mm	0.12 in	Push-Pull	23
Amphenol ICC (FCI) 78938-413HLF	100 çin	2.54 çm	Solder	Square	Through Hole Right Angle	0.095 in	2.41 mm	1	Unshrouded	3 A	Male Pin	Black	All	125 °C	-65 ░C	0.1 in	2.54 mm	0.12 in	3.05 mm	Phosphor Bronze			Header	UL94 V-0	3.05 mm	0.12 in	Push-Pull	13	Tin
Amphenol ICC (FCI) 78938-134HLF	30 Áin	0.76 Ám	Solder	Square	Through Hole Right Angle	0.095 in	2.41 mm	1	Unshrouded	3 A	Male Pin	Black	All	125 °C	-65 ░C	0.1 in	2.54 mm	0.12 in	3.05 mm	Phosphor Bronze		Gold or Gold GXT™	Header	UL94 V-0	3.05 mm	0.12 in	Push-Pull	34
