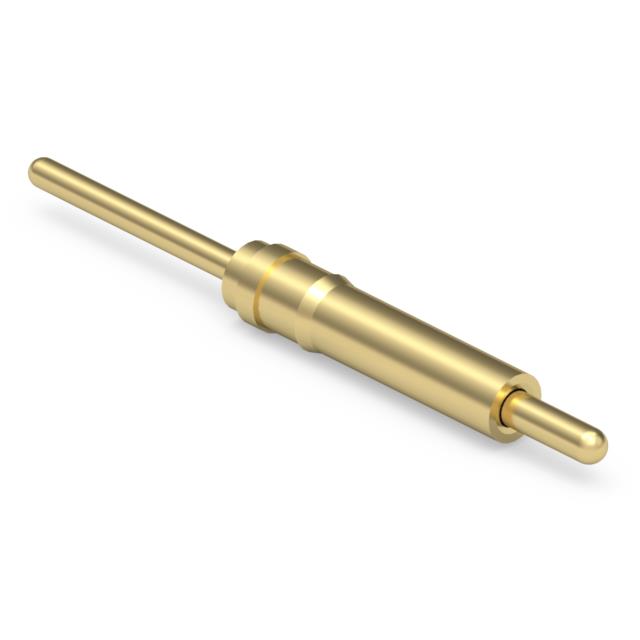

0985-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Maximum Working Height [Max] | Maximum Working Height [Max] | Mounting Type | Contact Material | Plunger Size [diameter] | Plunger Size [diameter] | Pad Layout Dimension | Pad Layout Dimension | Pad Layout Dimension | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Mating Cycles | Operating Force - Mid Compression | Contact Finish | Recommended Working Height | Recommended Working Height | Contact Type | Minimum Working Height | Minimum Working Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | 0.247 in | 6.27 mm | Through Hole | Brass Alloy | 0.019 in | 0.48 mm | 1.09 mm | 0.043 " | Circular | 5.2 A | 20 µin | 0.51 µm | 1000000 | 60 gf | Gold | 0.219 in | 5.57 mm | Sleeve & Plunger (Pogo Pins) | 0.192 in | 4.87 mm |
