044769 Series

Manufacturer: Molex

Catalog

HEADERS & WIRE HOUSINGS MICRO-FIT BMI VT HDR F DR 30AU 10CKT

Part	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Contact Type	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Applications	Mated Stacking Heights	Contact Shape	Style	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Termination	Number of Rows	Mounting Type	Voltage Rating	Insulation Color	Insulation Height	Insulation Height	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Current Rating (Amps)

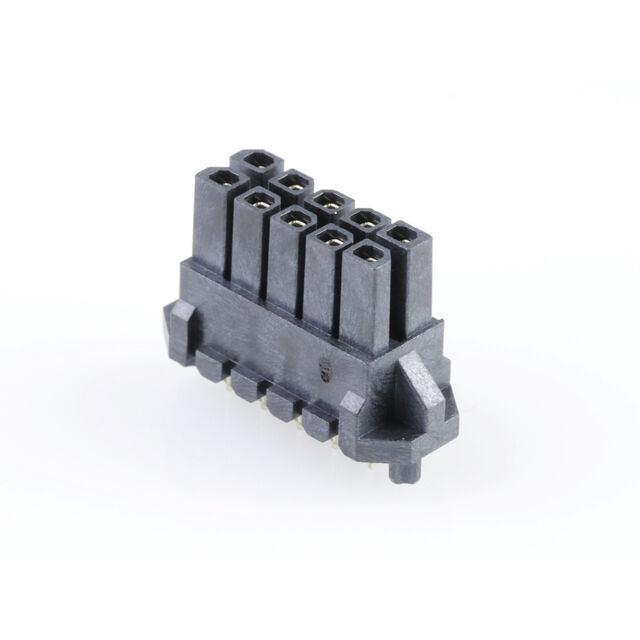

Molex 0447691003	Receptacle	0.134 in	3.4 mm	30 Áin	0.76 Ám	Phosphor Bronze	Female Socket	All	0.118 in	3 mm	UL94 V-0	General Purpose Telecommunications	16.86 mm	Square	Board to Board Cable	Gold	-40 °C	105 ░C	10	Solder	2	Through Hole	250 VAC	Black	13.6 mm	0.535 in	Tin	3 mm	0.118 in	Push-Pull	2.54 µm	100 µin	Blind Mating Board Guide	5 A

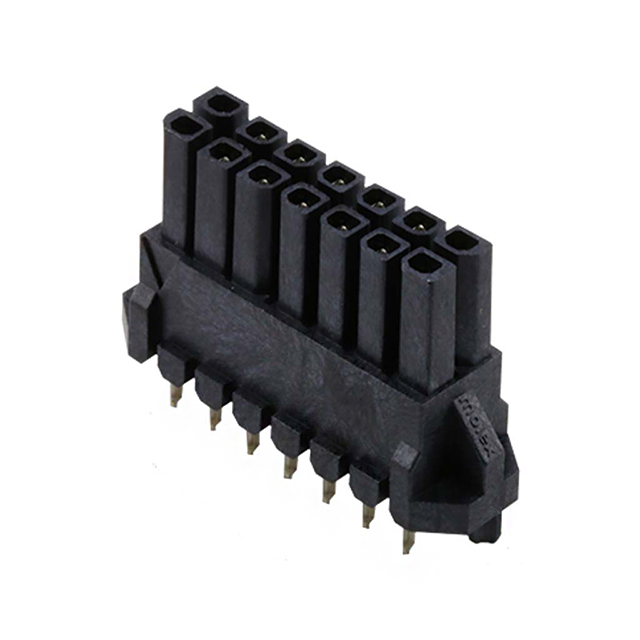

Molex 0447691401	Receptacle	0.134 in	3.4 mm	100 çin	2.54 çm	Phosphor Bronze	Female Socket	All	0.118 in	3 mm	UL94 V-0	General Purpose Telecommunications	16.86 mm	Square	Board to Board Cable		-40 °C	105 ░C	14	Solder	2	Through Hole	250 VAC	Black	13.6 mm	0.535 in	Tin	3 mm	0.118 in	Push-Pull	2.54 µm	100 µin	Blind Mating Board Guide	5 A

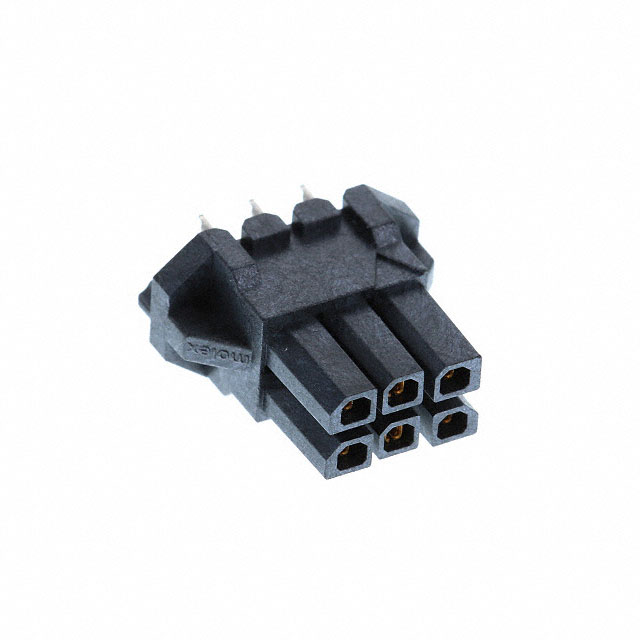

Molex 0447690602	Receptacle	0.134 in	3.4 mm	15 µin	0.38 µm	Phosphor Bronze	Female Socket	All	0.118 in	3 mm	UL94 V-0	General Purpose Telecommunications	16.86 mm	Square	Board to Board Cable	Gold	-40 °C	105 ░C	6	Solder	2	Through Hole	250 VAC	Black	13.6 mm	0.535 in	Tin	3 mm	0.118 in	Push-Pull	2.54 µm	100 µin	Blind Mating Board Guide	5 A

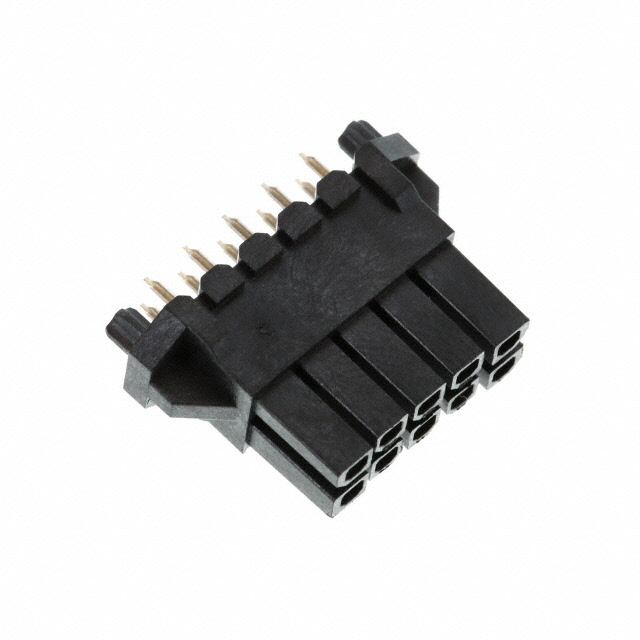

Molex 0447691002	Receptacle	0.134 in	3.4 mm	15 µin	0.38 µm	Phosphor Bronze	Female Socket	All	0.118 in	3 mm	UL94 V-0	General Purpose Telecommunications	16.86 mm	Square	Board to Board Cable	Gold	-40 °C	105 ░C	10	Solder	2	Through Hole	250 VAC	Black	13.6 mm	0.535 in	Tin	3 mm	0.118 in	Push-Pull	2.54 µm	100 µin	Blind Mating Board Guide	5 A

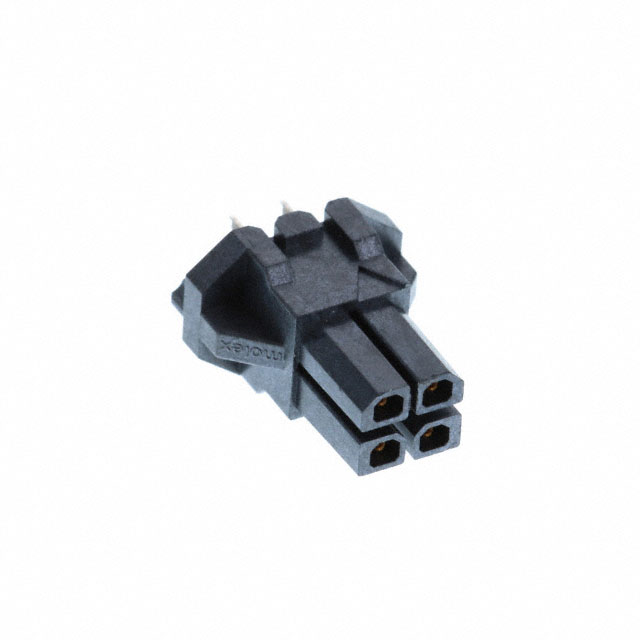

Molex 0447690402	Receptacle	0.134 in	3.4 mm	15 µin	0.38 µm	Phosphor Bronze	Female Socket	All	0.118 in	3 mm	UL94 V-0	General Purpose Telecommunications	16.86 mm	Square	Board to Board Cable	Gold	-40 °C	105 ░C	4	Solder	2	Through Hole	250 VAC	Black	13.6 mm	0.535 in	Tin	3 mm	0.118 in	Push-Pull	2.54 µm	100 µin	Blind Mating Board Guide	5 A
Molex 0447691403	Receptacle	0.134 in	3.4 mm	30 Áin	0.76 Ám	Phosphor Bronze	Female Socket	All	0.118 in	3 mm	UL94 V-0	General Purpose Telecommunications	16.86 mm	Square	Board to Board Cable	Gold	-40 °C	105 ░C	14	Solder	2	Through Hole	250 VAC	Black	13.6 mm	0.535 in	Tin	3 mm	0.118 in	Push-Pull	2.54 µm	100 µin	Blind Mating Board Guide	5 A
Molex 0447690601	Receptacle	0.134 in	3.4 mm	100 çin	2.54 çm	Phosphor Bronze	Female Socket	All	0.118 in	3 mm	UL94 V-0	General Purpose Telecommunications	16.86 mm	Square	Board to Board Cable		-40 °C	105 ░C	6	Solder	2	Through Hole	250 VAC	Black	13.6 mm	0.535 in	Tin	3 mm	0.118 in	Push-Pull	2.54 µm	100 µin	Blind Mating Board Guide	5 A
Molex 0447691801	Receptacle	0.134 in	3.4 mm	100 çin	2.54 çm	Phosphor Bronze	Female Socket	All	0.118 in	3 mm	UL94 V-0	General Purpose Telecommunications	16.86 mm	Square	Board to Board Cable		-40 °C	105 ░C	18	Solder	2	Through Hole	250 VAC	Black	13.6 mm	0.535 in	Tin	3 mm	0.118 in	Push-Pull	2.54 µm	100 µin	Blind Mating Board Guide	5 A

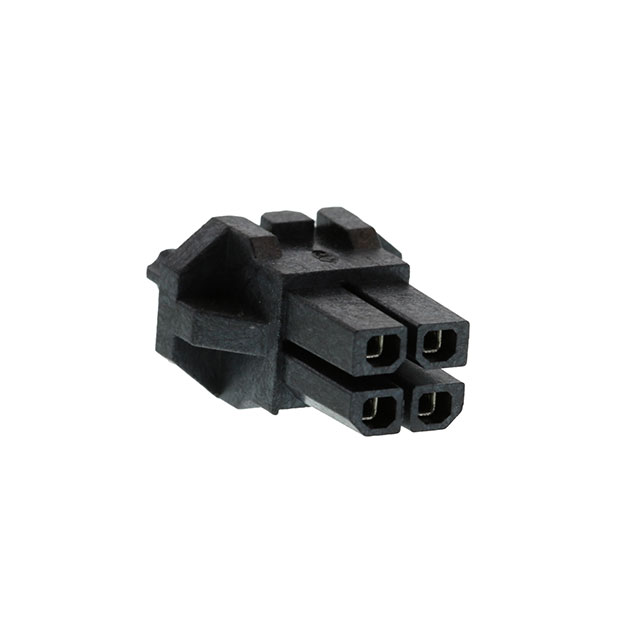

Molex 0447690401	Receptacle	0.134 in	3.4 mm	100 çin	2.54 çm	Phosphor Bronze	Female Socket	All	0.118 in	3 mm	UL94 V-0	General Purpose Telecommunications	16.86 mm	Square	Board to Board Cable		-40 °C	105 ░C	4	Solder	2	Through Hole	250 VAC	Black	13.6 mm	0.535 in	Tin	3 mm	0.118 in	Push-Pull	2.54 µm	100 µin	Blind Mating Board Guide	5 A

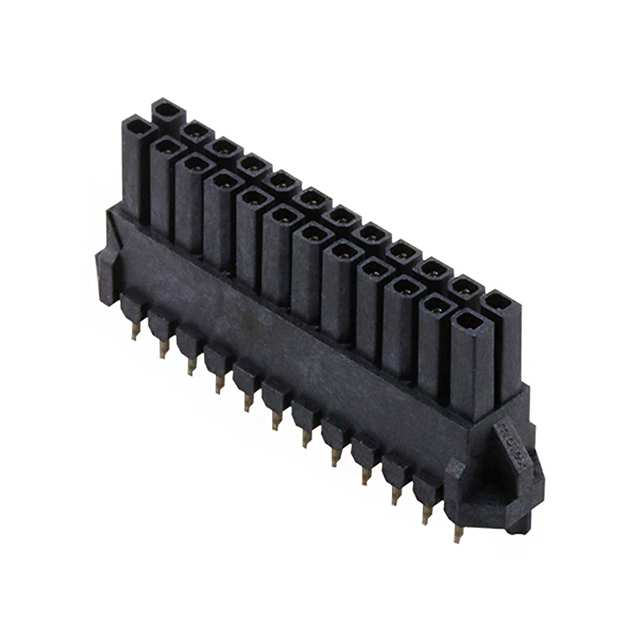

Molex 0447692403	Receptacle	0.134 in	3.4 mm	30 Áin	0.76 Ám	Phosphor Bronze	Female Socket	All	0.118 in	3 mm	UL94 V-0	General Purpose Telecommunications	16.86 mm	Square	Board to Board Cable	Gold	-40 °C	105 ░C	24	Solder	2	Through Hole	250 VAC	Black	13.6 mm	0.535 in	Tin	3 mm	0.118 in	Push-Pull	2.54 µm	100 µin	Blind Mating Board Guide	5 A
