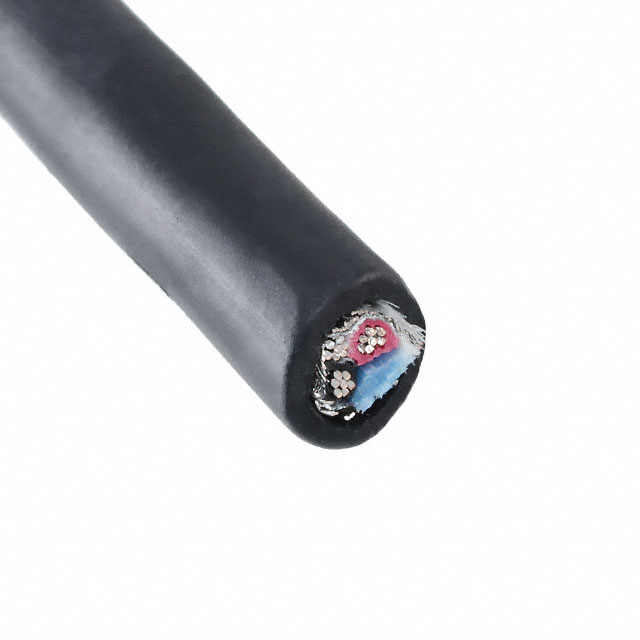

25152 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 2COND 20AWG SHLD 1000'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Material | Voltage | Number of Conductors | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Features | Length | Length | Jacket Color | Wire Gauge | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Shield Type | Length [x] | Length [x] | Spool Size [x] | Spool Size [x] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 0.236 " | 5.99 mm | Copper Tinned | 300 VDC | 2 | Multi-Conductor | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | -30 ░C | 90 °C | Biological Compatibility Drain Wire Rip Cord | 304.8 m | 1000 ft | Slate | 20 AWG | ISO 10993 UL Style 20668 | 0.813 mm | 0.032 in | Polyurethane (PU) | Braid Foil | |||||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 0.236 " | 5.99 mm | Copper Tinned | 300 VDC | 2 | Multi-Conductor | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | -30 ░C | 90 °C | Biological Compatibility Drain Wire Rip Cord | 304.8 m | 1000 ft | Red | 20 AWG | ISO 10993 UL Style 20668 | 0.813 mm | 0.032 in | Polyurethane (PU) | Braid Foil | |||||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 0.236 " | 5.99 mm | Copper Tinned | 300 VDC | 2 | Multi-Conductor | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | -30 ░C | 90 °C | Biological Compatibility Drain Wire Rip Cord | Black | 20 AWG | ISO 10993 UL Style 20668 | 0.813 mm | 0.032 in | Polyurethane (PU) | Braid Foil | 100 ft | 30.5 m | |||||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | 0.236 " | 5.99 mm | Copper Tinned | 300 VDC | 2 | Multi-Conductor | 28 AWG | 7 | Poly-Vinyl Chloride (PVC) | -30 ░C | 90 °C | Biological Compatibility Drain Wire Rip Cord | Black | 20 AWG | ISO 10993 UL Style 20668 | 0.813 mm | 0.032 in | Polyurethane (PU) | Braid Foil | 304.8 m | 1000 ft | Enter Number of Feet in Order Quantity |
