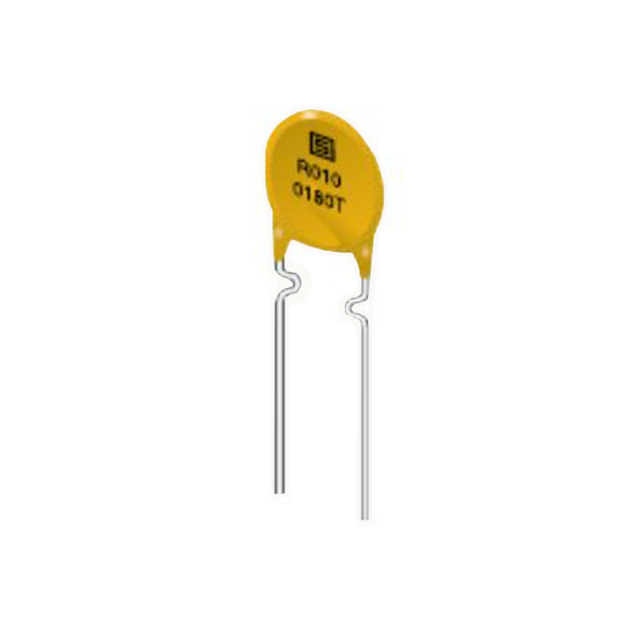

PFRA.090 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
PTC RESET FUSE 60V 900MA RADIAL
| Part | Approval Agency | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Resistance - Initial (Ri) (Min) [Min] | Lead Spacing | Lead Spacing | Voltage - Max [Max] | Current - Max [Max] | Mounting Type | Resistance - Post Trip (R1) (Max) [Max] | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [diameter] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Current - Trip (It) | Type | Package / Case | Time to Trip | Current - Hold (Ih) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | cURus TUV | 16.7 mm | 0.657 in | 140 mOhms | 0.201 in | 5.1 mm | 60 V | 40 A | Through Hole | 470 mOhms | 3.1 mm | 11.7 mm | 0.461 " | 0.122 in | 85 °C | -40 C | 1.8 A | Polymeric | Disc Radial | 7.2 s | 900 mA |
 SCHURTER Inc. | CSA TUV UL | 16.7 mm | 0.657 in | 70 mOhms | 0.201 in | 5.1 mm | 30 V | 40 A | Through Hole | 220 mOhms | 3.1 mm | 11.7 mm | 0.461 " | 0.122 in | 85 °C | -40 C | 1.8 A | Polymeric | Disc Radial | 5.9 s | 900 mA |
