726-011 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SGL FMALE 11POS 0.125
| Part | Material - Insulation | Termination Rows | Termination | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Pitch | Pitch | Read Out | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Number of Rows | Color | Card Thickness [Max] | Card Thickness [Min] | Contact Material | Card Type | Number of Positions | Gender | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

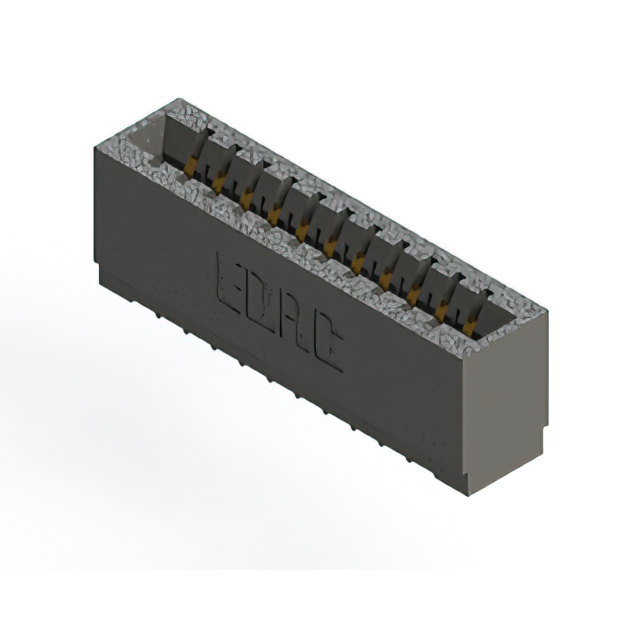

 EDAC Inc. | Polyester Thermoplastic | 1 | Press-Fit | 30 Áin | 0.76 Ám | Gold | 3.18 mm | 0.125 in | Single | Cantilever | -40 C | 105 ░C | 11 | 1 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Non Specified - Single Edge | 11 | Female | Through Hole |

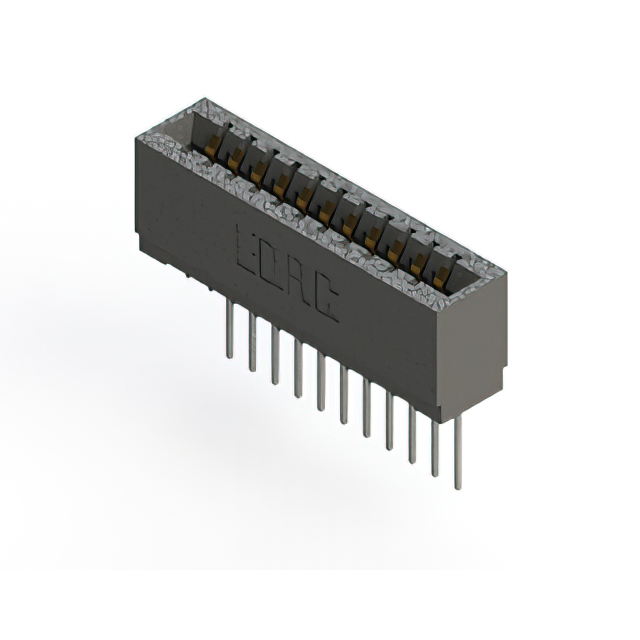

 EDAC Inc. | Polyester Thermoplastic | 1 | Press-Fit Wire Wrap | 30 Áin | 0.76 Ám | Gold | 3.18 mm | 0.125 in | Single | Cantilever | -40 C | 105 ░C | 11 | 1 | Black | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Copper Alloy | Non Specified - Single Edge | 11 | Female | Through Hole |
