CJ150 Series

Catalog

CONN TRS JACK STR SOLDER

Part	Voltage Rating	Body Material	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Center Contact Plating	Fastening Type	Connector Type	Number of Ports	Shield Termination	Cable Group	Center Contact Material	Impedance	Features	Frequency - Max [Max]	Connector Style	Mounting Type	Contact Termination	Housing Color
Cinch Connectivity Solutions Trompeter CJ150-47	400 V	Brass	Nickel	-65 ░C	200 °C	500	Gold	Bayonet Lock	Jack Female Socket (Concentric)	1	Wrench Clamp	M17/176-00002	Beryllium Copper	Non-Constant	Three Lug	500 MHz	TRS Twinaxial/Triaxial	Free Hanging (In-Line)	Solder	Silver

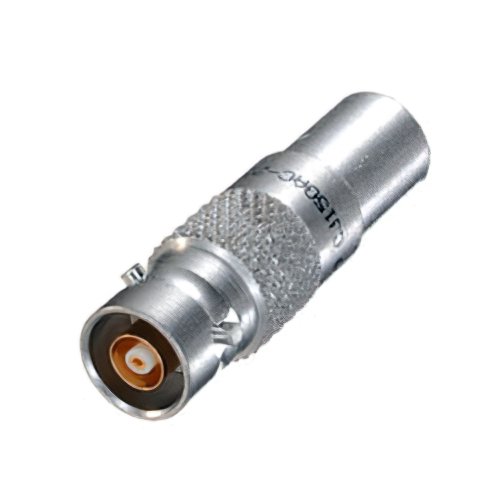

Cinch Connectivity Solutions Trompeter CJ150AC-201	400 V	Brass	Nickel	-65 ░C	200 °C	500	Gold	Bayonet Lock	Jack Female Socket (Concentric)	1	Crimp	M17/176-00002	Beryllium Copper	Non-Constant	Three Lug	500 MHz	TRS Twinaxial/Triaxial	Free Hanging (In-Line)	Crimp	Silver
Cinch Connectivity Solutions Trompeter CJ150-29	400 V	Brass	Nickel	-65 ░C	200 °C	500	Gold	Bayonet Lock	Jack Female Socket (Concentric)	1	Wrench Clamp	TWC-124-1A TWC-78-1	Beryllium Copper	Non-Constant	Three Lug	500 MHz	TRS Twinaxial/Triaxial	Free Hanging (In-Line)	Solder	Silver
