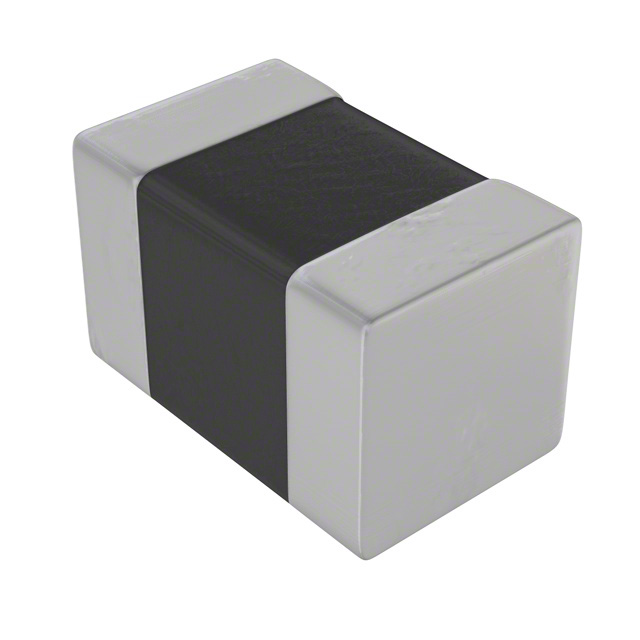

L0805C Series

Manufacturer: KEMET

Catalog

FIXED IND 1.5UH 800MA 200MOHM SM

Part	Current Rating (Amps)	Mounting Type	Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	Supplier Device Package	Inductance Frequency - Test	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Inductance	DC Resistance (DCR)	Shielding	Tolerance	DC Resistance (DCR) [Max]	Q @ Freq	Frequency - Self Resonant	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]
KEMET L0805C1R5MDMIT	800 mA	Surface Mount	Multilayer	2 mm	1.25 mm	0.049 "	0.079 in	85 °C	-40 C	Ferrite	0805	1 MHz	0805	1.25 mm	0.049 in	1.5 µH	200 mOhm	Shielded	20 %
KEMET L0805C4R7MDMIT	700 mA	Surface Mount	Multilayer	2 mm	1.25 mm	0.049 "	0.079 in	85 °C	-40 C	Ferrite	0805	1 MHz	0805	1.25 mm	0.049 in	4.7 ÁH		Shielded	20 %	280 mOhm
KEMET L0805C1R8KSMST	50 mA	Surface Mount	Multilayer	2 mm	1.25 mm	0.049 "	0.079 in	85 °C	-40 C	Ferrite	0805 (2125 Metric)	10 MHz	0805			1.8 µH		Shielded	10 %		10 MHz 45	55 MHz
KEMET L0805C470MDWIT	120 mA	Surface Mount	Drum Core Wirewound	2.11 mm	1.5 mm			105 ░C	-40 C	Ferrite	0805 (2012 Metric)	2.52 MHz	0805			47 µH	5.8 Ohm	Unshielded	20 %			11 MHz	1.04 mm	0.041 in	0.059 "	0.083 "
KEMET L0805C1R0MDMIT	1 A	Surface Mount	Multilayer	2 mm	1.25 mm	0.049 "	0.079 in	85 °C	-40 C	Ferrite	0805	1 MHz	0805	1.25 mm	0.049 in	1 µH		Shielded	20 %	140 mOhm
KEMET L0805C1R0MPWST	0.3 A	Surface Mount	Drum Core Wirewound	2 mm	1.25 mm	0.049 "	0.079 in	105 ░C	-40 C	Ferrite	0805	7.96 MHz	0805			1 µH	150 mOhm	Unshielded	20 %			100 MHz	0.057 in				1.45 mm
KEMET L0805C2R2MDWIT	0.64 A	Surface Mount	Drum Core Wirewound	2 mm	1.25 mm	0.049 "	0.079 in	105 ░C	-40 C	Ferrite	0805 (2012 Metric)	7.96 MHz	0805			2.2 µH	330 mOhm	Unshielded	20 %				0.057 in				1.45 mm
KEMET L0805C3R3MDMIT	700 mA	Surface Mount	Multilayer	2 mm	1.25 mm	0.049 "	0.079 in	85 °C	-40 C	Ferrite	0805	1 MHz	0805	1.25 mm	0.049 in	3.3 µH		Shielded	20 %	240 mOhm
