SF Series

Manufacturer: RFMi

Catalog

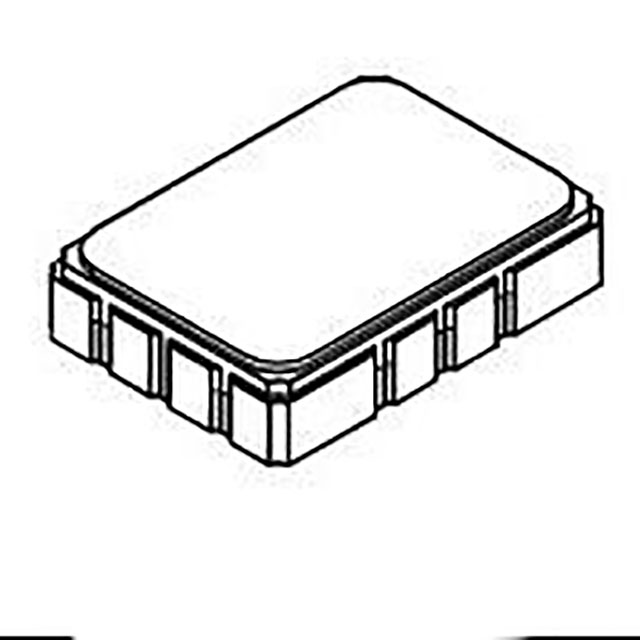

SIGNAL CONDITIONING 30V 80.46 MHZ 175 // 1000 OHMS SMD/SMT SMP03-10 4 MHZ 12 DB - 40 C TO + 105 C AEC-Q200

Part	Frequency - Center	Applications	Ratings	Package / Case	Mounting Type	Insertion Loss	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [z]	Bandwidth	Height (Max) [z]	Height (Max) [Max] [z]	Height (Max) [z]
RFMi SF2040B-2	80.46 MHz	IF SDARS	AEC-Q200	10-SMD No Lead	Surface Mount	9.5 dB	5 mm	7 mm	0.197 "	0.276 "	0.079 in 2 mm	4.1 MHz 6.6 MHz 7.6 MHz
RFMi SF2316H-1	1.588656 GHz	General Purpose	AEC-Q200	4-SMD No Lead	Surface Mount	1.65 dB	1.6 mm	2 mm	0.063 "	0.079 in	0.75 mm	4 MHz 34.47 MHz	0.03 in
RFMi SF2395H	1.224 GHz	GPS	AEC-Q200	4-SMD No Lead	Surface Mount	3 dB	1.65 mm	2.05 mm	0.065 in	0.081 in		52 MHz
RFMi SF2471E	915 MHz	General Purpose	AEC-Q200	8-SMD No Lead	Surface Mount	2.7 dB	3 mm	3 mm	0.118 in	0.118 "	1.1 mm			0.043 in
RFMi SF1141B	75 MHz	IF SDARS	AEC-Q200	10-SMD No Lead	Surface Mount	12.5 dB	5 mm	7 mm	0.197 "	0.276 "	0.079 in 2 mm	14.86 MHz
RFMi SF2063A	156 MHz	General Purpose		12-SMD No Lead	Surface Mount	15.5 dB	6.5 mm	13.31 mm	0.256 "	0.524 "	0.079 in 2 mm	10 MHz
RFMi SF2188D	340 MHz	General Purpose	AEC-Q200	8-SMD No Lead	Surface Mount	2 dB					1.4 mm	8 MHz	0.055 in
RFMi SF2170D	165 MHz	General Purpose	AEC-Q200	6-SMD No Lead	Surface Mount	9 dB					0.067 in				1.7 mm
RFMi SF2085A	96 MHz	General Purpose		10-SMD No Lead	Surface Mount	17 dB	6.5 mm	13.3 mm	0.256 "	0.524 "	0.079 in 2 mm	30 MHz
RFMi SF2316H-1	1.588656 GHz	General Purpose	AEC-Q200	4-SMD No Lead	Surface Mount	1.65 dB	1.6 mm	2 mm	0.063 "	0.079 in	0.75 mm	4 MHz 34.47 MHz	0.03 in
