M2024TN Series

Catalog

SWITCH ROCKER SP3T 6A 125V

Part	Mechanical Life	Electrical Life	Approval Agency	Actuator Marking	Color - Actuator/Cap	Features	Voltage Rating - DC	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Termination Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - AC	Current Rating (Amps)	Mounting Type	Switch Function

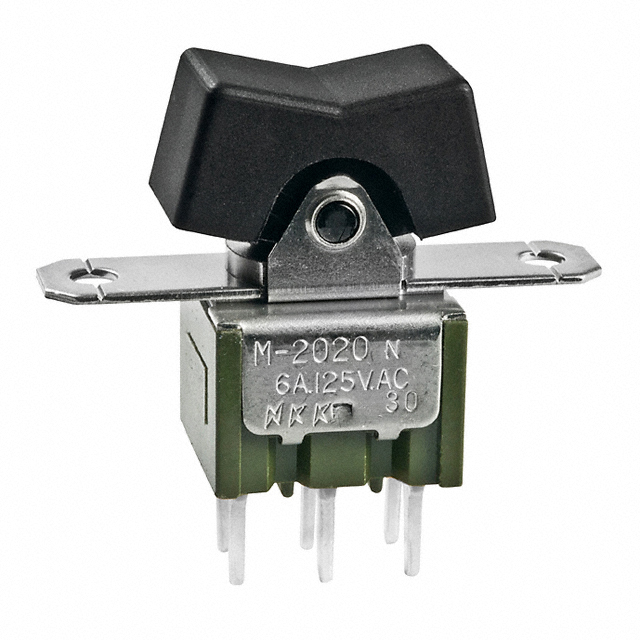

NKK Switches M2024TNW03-DA	50000 Cycles	25000 Steps	CSA UL	No Marking	Black	Jumper needed to achieve triple throw	30 V	SP3T	85 °C	-30 ░C	Concave	PC Pin	10.1 mm	17.8 mm	125 V	3 A 6 A	Flange Panel Mount	On-On-On
NKK Switches M2024TNW01-DH	50000 Cycles	25000 Steps	CSA UL	No Marking		Jumper needed to achieve triple throw	30 V	SP3T	85 °C	-30 ░C	Concave	Solder Lug	10.1 mm	17.8 mm	125 V	3 A 6 A	Flange Panel Mount	On-On-On
NKK Switches M2024TNW03-DH	50000 Cycles	25000 Steps	CSA UL	No Marking		Jumper needed to achieve triple throw	30 V	SP3T	85 °C	-30 ░C	Concave	PC Pin	10.1 mm	17.8 mm	125 V	3 A 6 A	Flange Panel Mount	On-On-On
NKK Switches M2024TNW03	50000 Cycles	25000 Steps	CSA UL	Varies by Cap		Jumper needed to achieve triple throw	30 V	SP3T	85 °C	-30 ░C	Actuator Arm Cap Required	PC Pin			125 V	3 A 6 A	Flange Panel Mount	On-On-On
NKK Switches M2024TNW01-GA	50000 Cycles	25000 Steps	CSA UL	No Marking	Black	Jumper needed to achieve triple throw	30 V	SP3T	85 °C	-30 ░C	Paddle	Solder Lug	12.4 mm	0.5 in	125 V	3 A 6 A	Flange Panel Mount	On-On-On
NKK Switches M2024TNW01-DA	50000 Cycles	25000 Steps	CSA UL	No Marking	Black	Jumper needed to achieve triple throw	30 V	SP3T	85 °C	-30 ░C	Concave	Solder Lug	10.1 mm	17.8 mm	125 V	3 A 6 A	Flange Panel Mount	On-On-On
