LC709203 Series
Manufacturer: ON Semiconductor
Beta
⌘K

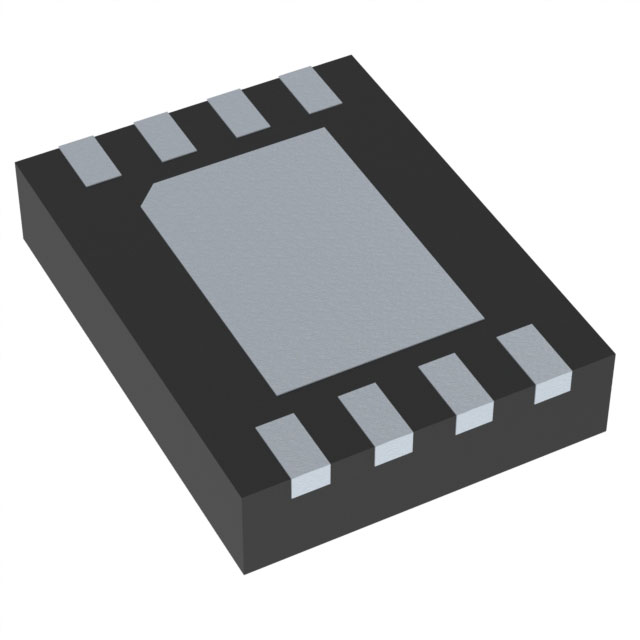

IC BATT MON LI-ION 1CELL 8WDFN
| Part | Package / Case | Battery Chemistry | Number of Cells | Supplier Device Package | Function | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Interface | Supplied Contents | Type | Primary Attributes | Secondary Attributes | Utilized IC / Part | Embedded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ON Semiconductor | 8-WDFN Exposed Pad | Lithium Ion | 1 | 8-VDFN (3x4) | Battery Monitor | 85 °C | -40 °C | Surface Mount | I2C | ||||||
ON Semiconductor | 9-UFBGA WLCSP | Lithium Ion/Polymer | 1 | Battery Monitor | 85 °C | -40 °C | Surface Mount | I2C | |||||||
ON Semiconductor | 8-WDFN Exposed Pad | Lithium Ion | 1 | 8-VDFN (3x4) | Battery Monitor | 85 °C | -40 °C | Surface Mount | I2C | ||||||
 ON Semiconductor | Battery Gauge | Board(s) | Power Management | Li-Ion (1 Cell) | On-Board LEDs | LC709203F | |||||||||
ON Semiconductor | 8-WDFN Exposed Pad | Lithium Ion | 1 | 8-VDFN (3x4) | Battery Monitor | 85 °C | -40 °C | Surface Mount | I2C |
