084 Series

Catalog

LINE FILTER 250VAC 10A CHASSIS

Part	Frequency - Operating [Max]	Frequency - Operating [Min]	Voltage - Rated AC	Current	Applications	Approval Agency	Voltage - Rated AC (Phase to Phase)	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Filter Type	Configuration	Mounting Type
Astrodyne TDI 084.01001.00-RSI	60 Hz	50 Hz	250 V	10 A	General Purpose	cURus VDE	1.45 kV	IEC 320-C14 Quick Connect	85 °C	-25 °C	Single Phase	Single Stage	Chassis Mount
Astrodyne TDI 084.00301.00	60 Hz	50 Hz	250 V	3 A	General Purpose	cURus VDE	1.45 kV	IEC 320-C14 Quick Connect	85 °C	-25 °C	Single Phase	Single Stage	Chassis Mount
Astrodyne TDI 084.00301.00-RSI	60 Hz	50 Hz	250 V	3 A	General Purpose	cURus VDE	1.45 kV	IEC 320-C14 Quick Connect	85 °C	-25 °C	Single Phase	Single Stage	Chassis Mount
Astrodyne TDI 084.00101.00-RS	60 Hz	50 Hz	250 V	1 A	General Purpose	cURus VDE	1.45 kV	IEC 320-C14 Quick Connect	85 °C	-25 °C	Single Phase	Single Stage	Chassis Mount

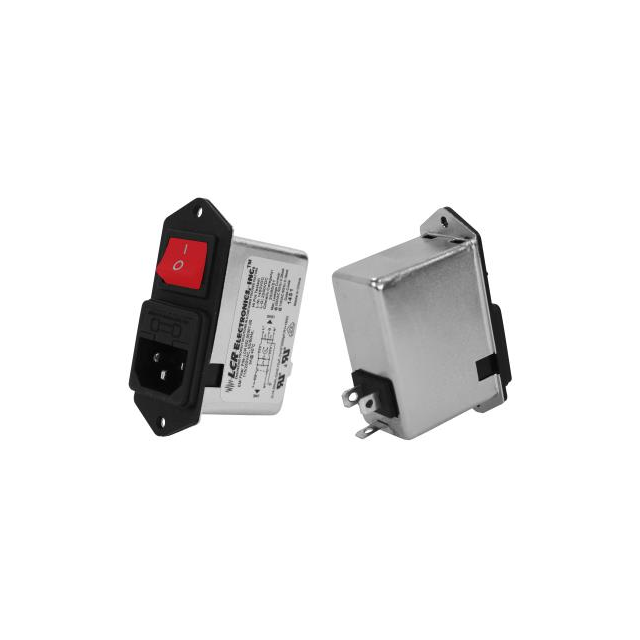

Astrodyne TDI 084.00101.00-LS	60 Hz	50 Hz	250 V	1 A	General Purpose	cURus VDE	1.45 kV	IEC 320-C14 Quick Connect	85 °C	-25 °C	Single Phase	Single Stage	Chassis Mount
Astrodyne TDI 084.00101.00	60 Hz	50 Hz	250 V	1 A	General Purpose	cURus VDE	1.45 kV	IEC 320-C14 Quick Connect	85 °C	-25 °C	Single Phase	Single Stage	Chassis Mount
Astrodyne TDI 084.00601.00-LS	60 Hz	50 Hz	250 V	6 A	General Purpose	cURus VDE	1.45 kV	IEC 320-C14 Quick Connect	85 °C	-25 °C	Single Phase	Single Stage	Chassis Mount
Astrodyne TDI 084.00301.00-LS	60 Hz	50 Hz	250 V	3 A	General Purpose	cURus VDE	1.45 kV	IEC 320-C14 Quick Connect	85 °C	-25 °C	Single Phase	Single Stage	Chassis Mount
Astrodyne TDI 084.00101.00-RSI	60 Hz	50 Hz	250 V	1 A	General Purpose	cURus VDE	1.45 kV	IEC 320-C14 Quick Connect	85 °C	-25 °C	Single Phase	Single Stage	Chassis Mount
Astrodyne TDI 084.00601.00-RS	60 Hz	50 Hz	250 V	6 A	General Purpose	cURus VDE	1.45 kV	IEC 320-C14 Quick Connect	85 °C	-25 °C	Single Phase	Single Stage	Chassis Mount
