DV5214 Series

Catalog

DC AXIAL FAN, 24 V, SQUARE, 127 MM, 38 MM, BALL BEARING, 158.9 CFM

Part	Material - Frame	Air Flow	Air Flow	Material - Blade	Voltage Range [Max]	Voltage Range [Min]	Termination	Power (Watts)	Weight [custom]	Weight [custom]	Size / Dimension [z]	Size / Dimension [x]	RPM	Voltage - Rated	Width [y]	Noise	Fan Type	Approval Agency	Operating Temperature	Operating Temperature [Min]	Operating Temperature [Max]	Bearing Type	Ingress Protection	Lifetime @ Temp.	Weight [custom]	Weight [custom]	Features

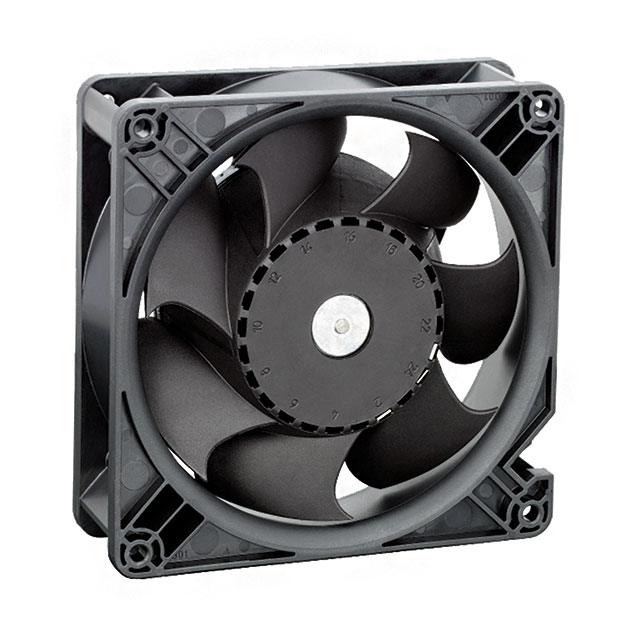

ebm-papst Inc. DV5214NU	Aluminum	158.9 CFM	4.45 m³/min	Polyamide (PA) Nylon Fiberglass Reinforced	26.4 VDC	18 VDC	2 Wire Leads	19.8 W	544.3 g	1.2 lbs	5 in	5 "	4930 RPM	24 VDC	38 mm	56 dB	Tubeaxial	UL	(-20 ~ 65°C)	-20 ░C	65 °C	Ball	IP68 - Dust Tight Waterproof

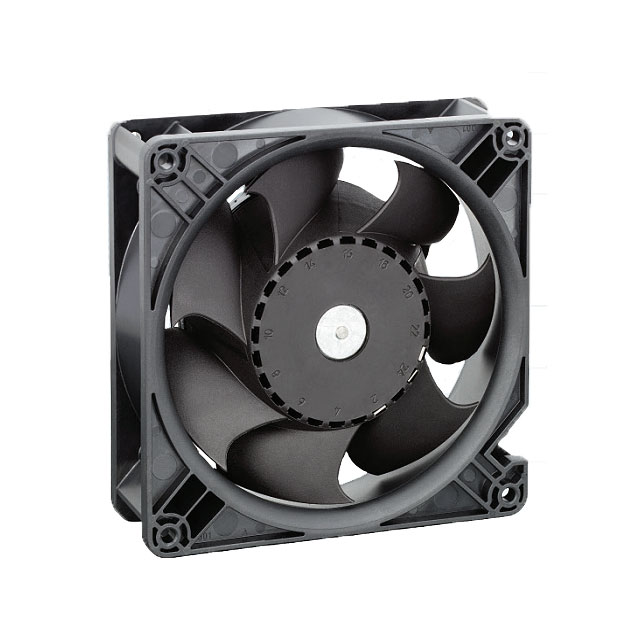

ebm-papst Inc. DV5214N	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	158.9 CFM	4.45 m³/min	Polyamide (PA) Nylon Fiberglass Reinforced	30 V	16 VDC	2 Wire Leads	19 W			5 in	5 "	5000 RPM	24 VDC	38 mm	56 dB	Tubeaxial	CE CSA UL VDE	(-20 ~ 65°C)	-20 ░C	65 °C	Ball		70000 Hrs	415.04 g	0.915 lb
ebm-papst Inc. DV5214/2N	Fiberglass Reinforced Polybutylene Terephthalate (PBT)	159 CFM	4.45 m³/min	Polyamide (PA) Nylon Fiberglass Reinforced	30 V	16 VDC	3 Wire Leads	20.4 W			5 in	5 "	5000 RPM	24 VDC	38 mm	56 dB	Tubeaxial		(-20 ~ 65°C)	-20 ░C	65 °C	Ball	IP54 - Dust Protected Water Resistant	70000 Hrs			Speed Sensor (Tach)
