CMLB041B Series
Manufacturer: Delta Electronics/Cyntec
Beta
⌘K

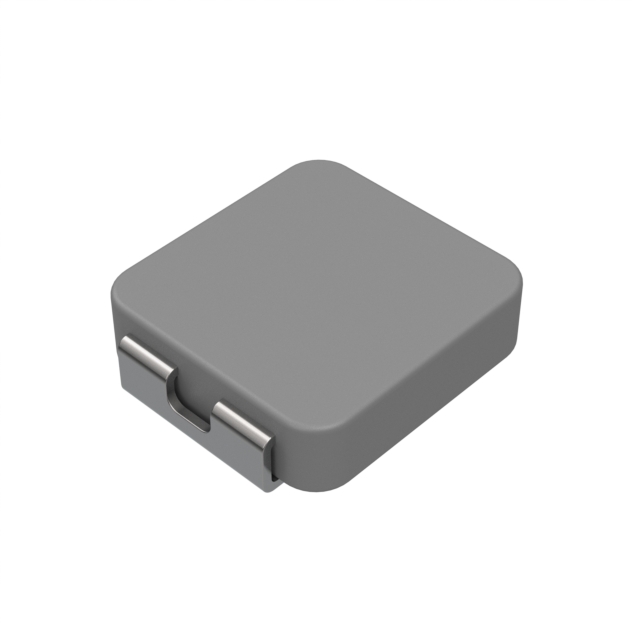

FIXED IND 1UH 5A 46.5 MOHM SMD
| Part | Inductance Frequency - Test | Shielding | Package / Case | Material - Core | DC Resistance (DCR) | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Tolerance | Current - Saturation (Isat) | Inductance | DC Resistance (DCR) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics/Cyntec | 100 kHz | Shielded | Nonstandard | Metal | 46.5 mOhm | -55 C | 125 °C | 5 A | 1.2 mm | 0.047 " | Surface Mount | 0.165 in | 0.173 in | 4.4 mm | 4.2 mm | 20 % | 5 A | 1 µH | |
Delta Electronics/Cyntec | 100 kHz | Shielded | Nonstandard | Metal | -55 C | 125 °C | 5.5 Amps | 1.2 mm | 0.047 " | Surface Mount | 0.165 in | 0.173 in | 4.4 mm | 4.2 mm | 20 % | 6.5 A | 0.68 µH | 36 mOhm |
