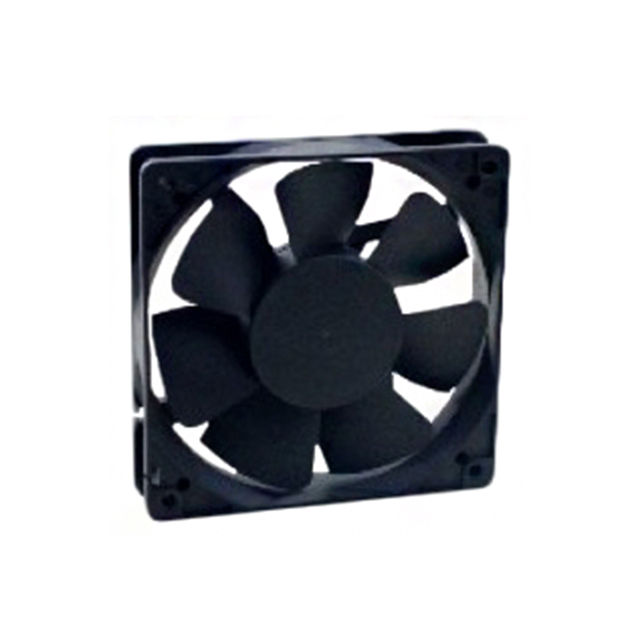

MR1225 Series

Catalog

FAN AXIAL 120X25MM 24VDC WIRE

Part	Air Flow	Air Flow	Material - Frame	Current Rating (Amps)	Material - Blade	Static Pressure	Static Pressure	Weight [custom]	Weight [custom]	Termination	Bearing Type	RPM	Fan Type	Noise	Approval Agency	Width [y]	Voltage - Rated	Features	Size / Dimension [z]	Size / Dimension [x]
Mechatronics Fan Group MR1225H24B1-FSR	3.81 mł/min	136 CFM	Plastic	0.41 A	Plastic	119.6 Pa	0.48 in H2O	124.74 g	0.275 lb	3 Wire Leads	Ball	4500 RPM	Tubeaxial	53.8 dB(A)	CE cUL TUV UL	25 mm	24 VDC	Auto Restart Speed Sensor (Tach)	120 mm	120 mm
Mechatronics Fan Group MR1225L24B-FSR	3 m³/min	107 CFM	Plastic	0.3 A	Plastic	72.2 Pa	0.29 in H2O	124.74 g	0.275 lb	2 Wire Leads	Ball	3500 RPM	Tubeaxial	47.2 dB(A)	CE cUL TUV UL	25 mm	24 VDC	Auto Restart	120 mm	120 mm
Mechatronics Fan Group MR1225M24B2-FSR	3.42 m³/min	122.1 CFM	Plastic	0.38 A	Plastic	94.6 Pa	0.38 in H2O	124.74 g	0.275 lb	3 Wire Leads	Ball	4000 RPM	Tubeaxial	50.5 dB(A)	CE cUL TUV UL	25 mm	24 VDC	Auto Restart Locked Rotor Sensor	120 mm	120 mm
Mechatronics Fan Group MR1225E24B1+6-FSR	4.23 m³/min	151 CFM	Plastic	600 mA	Plastic	147 Pa	0.59 in H2O	124.74 g	0.275 lb	4 Wire Leads	Ball	5000 RPM	Tubeaxial	56.6 dB(A)	CE cUL TUV UL	25 mm	24 VDC	Auto Restart PWM Control Speed Sensor (Tach)	120 mm	120 mm
Mechatronics Fan Group MR1225L24B1+6-FSR	3 m³/min	107 CFM	Plastic	0.3 A	Plastic	72.2 Pa	0.29 in H2O	124.74 g	0.275 lb	4 Wire Leads	Ball	3500 RPM	Tubeaxial	47.2 dB(A)	CE cUL TUV UL	25 mm	24 VDC	Auto Restart PWM Control Speed Sensor (Tach)	120 mm	120 mm
Mechatronics Fan Group MR1225E24B2-FSR	4.23 m³/min	151 CFM	Plastic	600 mA	Plastic	147 Pa	0.59 in H2O	124.74 g	0.275 lb	3 Wire Leads	Ball	5000 RPM	Tubeaxial	56.6 dB(A)	CE cUL TUV UL	25 mm	24 VDC	Auto Restart Locked Rotor Sensor	120 mm	120 mm
Mechatronics Fan Group MR1225M24B-FSR	3.42 m³/min	122.1 CFM	Plastic	0.38 A	Plastic	94.6 Pa	0.38 in H2O	124.74 g	0.275 lb	2 Wire Leads	Ball	4000 RPM	Tubeaxial	50.5 dB(A)	CE cUL TUV UL	25 mm	24 VDC	Auto Restart	120 mm	120 mm
Mechatronics Fan Group MR1225M24B1-FSR	3.42 m³/min	122.1 CFM	Plastic	0.38 A	Plastic	94.6 Pa	0.38 in H2O	124.74 g	0.275 lb	3 Wire Leads	Ball	4000 RPM	Tubeaxial	50.5 dB(A)	CE cUL TUV UL	25 mm	24 VDC	Auto Restart Speed Sensor (Tach)	120 mm	120 mm
Mechatronics Fan Group MR1225H24B1+6-FSR	3.81 mł/min	136 CFM	Plastic	0.41 A	Plastic	119.6 Pa	0.48 in H2O	124.74 g	0.275 lb	4 Wire Leads	Ball	4500 RPM	Tubeaxial	53.8 dB(A)	CE cUL TUV UL	25 mm	24 VDC	Auto Restart PWM Control Speed Sensor (Tach)	120 mm	120 mm
Mechatronics Fan Group MR1225M24B1+6-FSR	3.42 m³/min	122.1 CFM	Plastic	0.38 A	Plastic	94.6 Pa	0.38 in H2O	124.74 g	0.275 lb	4 Wire Leads	Ball	4000 RPM	Tubeaxial	50.5 dB(A)	CE cUL TUV UL	25 mm	24 VDC	Auto Restart PWM Control Speed Sensor (Tach)	120 mm	120 mm
