TDA1748 Series
Manufacturer: Delta Electronics
Beta
⌘K

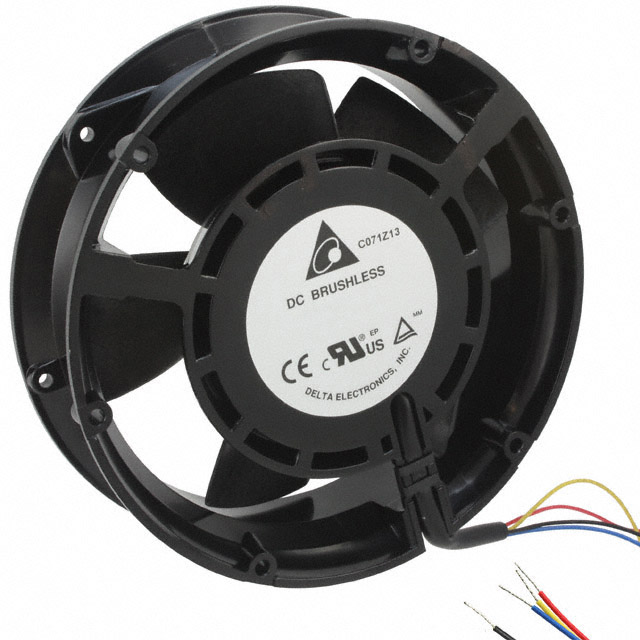

FAN AXIAL 172X50.8MM 48VDC WIRE
| Part | Material - Blade | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Current Rating (Amps) | Material - Frame | Noise | Width [y] | Fan Type | Static Pressure | Static Pressure | Features | Operating Temperature [Max] | Operating Temperature [Min] | RPM | Approval Agency | Power (Watts) | Termination | Weight | Weight | Voltage - Rated | Air Flow | Air Flow | Size / Dimension [diameter] | Size / Dimension | Bearing Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | 80000 Hrs | 30 VDC | 60 V | 1.85 A | Aluminum | 71 dB(A) | 50.8 mm | Tubeaxial | 2.82 in H2O | 702.5 Pa | Locked Rotor Protection PWM Control Speed Sensor (Tach) | 70 °C | -10 °C | 5400 RPM | CE CSA UL VDE | 88.8 W | 4 Wire Leads | 800 g | 1.8 lbs | 48 VDC | 11.56 m³/min | 413 CFM | 172 mm | Round | Ball |
