RF6G035BG Series

Nch 40V 3.5A, TUMT6, Power MOSFET

Catalog

Nch 40V 3.5A, TUMT6, Power MOSFET

Part	Operating Temperature	Technology	Current - Continuous Drain (Id) @ 25°C	FET Type	Vgs (Max)	Mounting Type	Vgs(th) (Max) @ Id [Max]	Drive Voltage (Max Rds On, Min Rds On)	Power Dissipation (Max) [Max]	Drain to Source Voltage (Vdss)	Package / Case	Rds On (Max) @ Id, Vgs	Supplier Device Package	Gate Charge (Qg) (Max) @ Vgs [Max]	Input Capacitance (Ciss) (Max) @ Vds

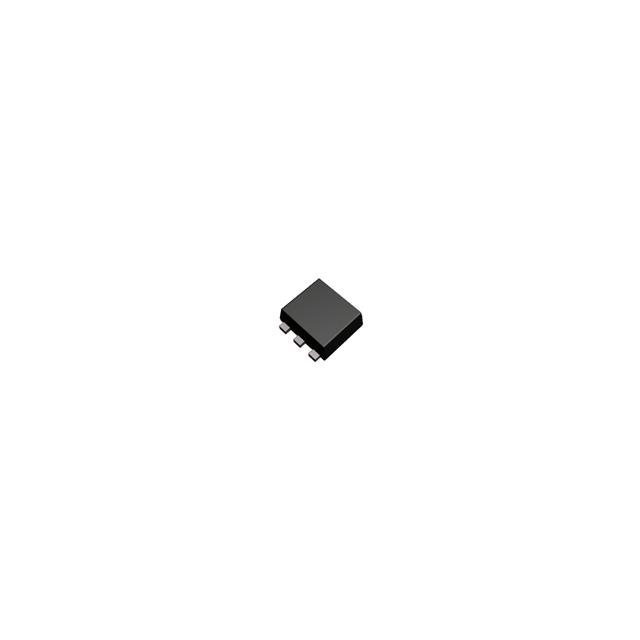

Rohm Semiconductor RF6G035BGTCR	150 °C	MOSFET (Metal Oxide)	3.5 A	N-Channel	20 V	Surface Mount	2.5 V	4.5 V 10 V	910 mW	40 V	6-SMD Flat Leads	46 mOhm	TUMT6	3.5 nC	150 pF

Catalog

Nch 40V 3.5A, TUMT6, Power MOSFET

Key Features

• Low on - resistance, Small surface mount package (TUMT6), Pb-free lead plating; RoHS compliant, Halogen Free

Description

RF6G035BG is a power MOSFET with low on-resistance and high power small mold package, suitable for Switching, Motor drives, and DC/DC converter applications.
