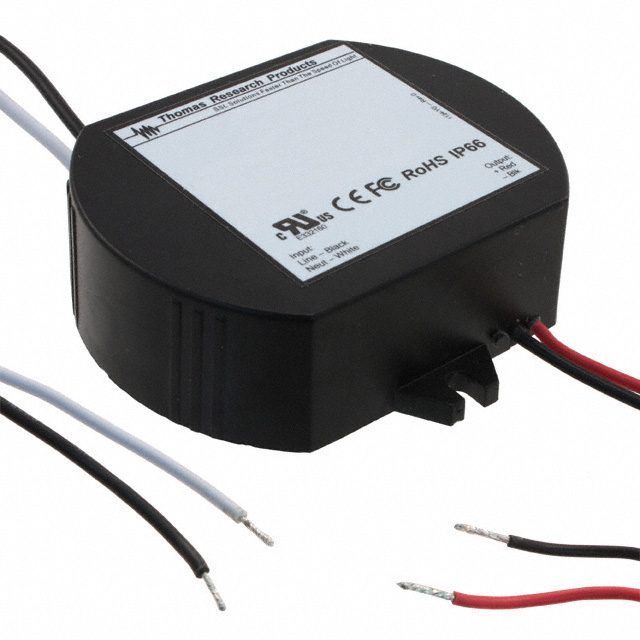

LED25W Series

Catalog

LED DRIVER CV AC/DC 24V 1.04A

Part	Mounting Type	Weight	Weight	Current - Output (Max) [Max]	Topology	Voltage - Input (Max) [Max]	Termination Style	Features	Voltage - Input (Min) [Min]	Voltage - Output	Efficiency	Power (Watts)	Number of Outputs	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Approval Agency	Ratings	Voltage - Output [Min]	Voltage - Output [Max]
Thomas Research Products LED25W-24	Chassis Mount	0.437 lb	198 g	1.04 A	AC DC Converter	305 VAC	Wire Leads	OCP OVP SCP	90 VAC	24 V	83 %	25 W	1	Constant Voltage	3.07 in	80 mm	3.15 "	25.2 mm	78 mm	0.99 "	CE cULus	IP66
Thomas Research Products LED25W-36-C0620	Chassis Mount	0.437 lb	198 g	620 mA	AC DC Converter	305 VAC	Wire Leads	OCP OVP SCP	90 VAC		84 %	25 W	1	Constant Current	3.07 in	80 mm	3.15 "	25.2 mm	78 mm	0.99 "	CE cULus	IP66	12 V	36 V
Thomas Research Products LED25W-12-C2080	Chassis Mount	0.437 lb	198 g	2.08 A	AC DC Converter	305 VAC	Wire Leads	OCP OVP SCP	90 VAC		81 %	25 W	1	Constant Current	2.44 "	80 mm	3.15 "	25.2 mm	62 mm	0.99 "	CE cURus	IP66	6 V	12 V
