KMDLAX Series

Catalog

CIRCULAR DIN CONNECTORS 4P SNAP N LOCK PLUG ASSEMBLY

Part	Number of Positions	Shielding	Contact Finish - Mating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Fastening Type	Primary Material	Shell Size - Insert	Color	Features	Mounting Type	Voltage Rating	Shell Material	Material Flammability Rating	Cable Opening	Cable Opening	Contact Material	Insert Material [custom]	Insert Material [custom]	Applications	Backshell Material, Plating
Kycon, Inc. KMDLAX-4P	4	Shielded	Silver	Plug Male Pins	-25 °C	80 °C	Keyed	Snap-In	Plastic	Mini DIN	Black	Backshell Strain Relief	Free Hanging (In-Line)	12 VDC 100 VAC	Polyacrylonitrile Butadiene Styrene (ABS)	UL94 HB	0.217 in	5.5 mm
Kycon, Inc. KMDLAX-8P	8	Shielded	Silver	Plug Male Pins	-25 °C	80 °C	Keyed	Snap-In	Plastic	Mini DIN	Black	Backshell Strain Relief	Free Hanging (In-Line)	12 VDC 100 VAC	Polyacrylonitrile Butadiene Styrene (ABS)	UL94 HB	0.217 in	5.5 mm
Kycon, Inc. KMDLAX-7P-KPPSR	7	Shielded	Silver	Plug Male Pins	-25 °C	80 °C	Keyed	Snap-In	Plastic	Mini DIN	Black	Backshell Strain Relief	Free Hanging (In-Line)	12 VDC 100 VAC	Polyacrylonitrile Butadiene Styrene (ABS)	UL94 HB	0.25 in	6.35 mm	Brass	Nylon	Polyamide (PA)	Audio Video	Polyacrylonitrile Butadiene Styrene (ABS)

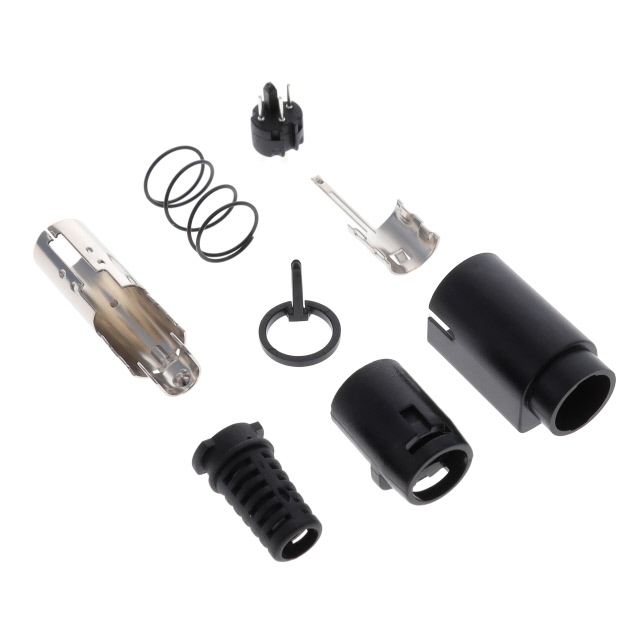

Kycon, Inc. KMDLAX-3P		Shielded	Silver	Plug Male Pins	-25 °C	80 °C	Keyed	Snap-In	Plastic	Mini DIN	Black	Backshell Strain Relief	Free Hanging (In-Line)	12 VDC 100 VAC	Polyacrylonitrile Butadiene Styrene (ABS)	UL94 HB	0.217 in	5.5 mm	Brass	Nylon	Polyamide (PA)	Audio Video	Polyacrylonitrile Butadiene Styrene (ABS)
