LZP-D0 Series

Catalog

LED MOD LZP WM WH STARBRD 3500K

Part	CRI (Color Rendering Index)	Light Emitting Surface (LES) [diameter]	Lens Type	Height [z]	Viewing Angle	Current - Max [Max]	Type	Current - Test	Current - Test [custom]	Voltage - Forward (Vf) (Typ)	Size / Dimension [diameter]	CCT (K)	Lumens/Watt @ Current - Test	Configuration	Temperature - Test	Luminous Flux @ Current/Temperature [Min]	Luminous Flux @ Current/Temperature	Luminous Flux @ Current/Temperature [Max]	Color	Wavelength	Wavelength [Max]	Wavelength [Min]	CCT (K)	CCT (K) [Max]	CCT (K) [Min]
ams-OSRAM USA INC. LZP-D0WW0R-0235	83	10.45 mm	Domed	8.1 mm	110 °	1 A	LED Module	700 mA	4	18.9 V	28 mm	3500 K	68 lm/W	Starboard	25 °C	2900 lm	3600 lm	3800 lm	Warm White
ams-OSRAM USA INC. LZP-D0UB00-00U7		10.5 mm	Domed	8.1 mm	130 °	1 A	LED Module	700 mA	4		28.3 mm			Starboard	25 °C				Violet	403 nm	405 nm	400 nm
ams-OSRAM USA INC. LZP-D0GW00-0030	98	10.45 mm	Domed	8.1 mm	110 °	1 A	LED Module	700 mA	4	19.4 V	28.3 mm	3000 K		Starboard	25 °C	2350 lm		3200 lm	Warm White				3-Step MacAdam Ellipse
ams-OSRAM USA INC. LZP-D0GW00-0430	95	10.5 mm	Domed	8.1 mm	110 °		LED Module	700 mA	4	19.4 V	28 mm	3000 K	49 lm/W	Starboard	25 °C	2120 lm	2650 lm	2900 lm	Warm White

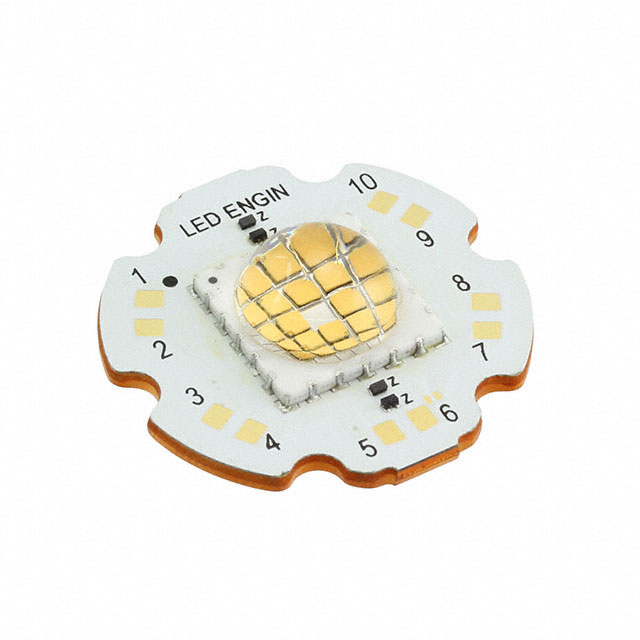

ams-OSRAM USA INC. LZP-D0GW00-0230	95	10.5 mm	Domed	8.1 mm	110 °	1 A	LED Module	700 mA	4	19.4 V	28 mm	3000 K	49 lm/W	Starboard	25 °C	2120 lm	2650 lm	2900 lm	Warm White

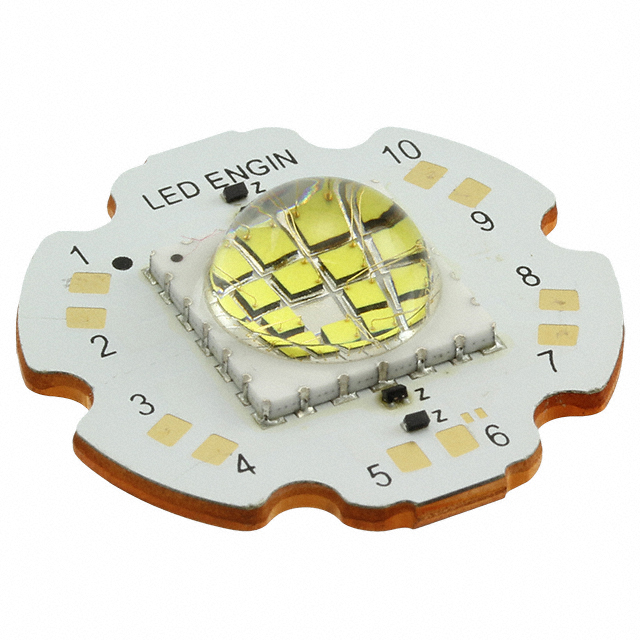

ams-OSRAM USA INC. LZP-D0WW0R-0030	83	10.45 mm	Domed	8.1 mm	110 °	1 A	LED Module	700 mA	4	18.9 V	28.3 mm	3000 K	68 lm/W	Starboard	25 °C	2900 lm	3600 lm	3800 lm	Warm White
ams-OSRAM USA INC. LZP-D0WW0R-0427	83	10.45 mm	Domed	8.1 mm	110 °	1 A	LED Module	700 mA	4	18.9 V	28 mm	2700 K	68 lm/W	Starboard	25 °C	2900 lm	3600 lm	3800 lm	Warm White
ams-OSRAM USA INC. LZP-D0WW0R-0027	83	10.45 mm	Domed	8.1 mm	110 °	1 A	LED Module	700 mA	4	18.9 V	28 mm	2700 K	68 lm/W	Starboard	25 °C	2900 lm	3600 lm	3800 lm	Warm White

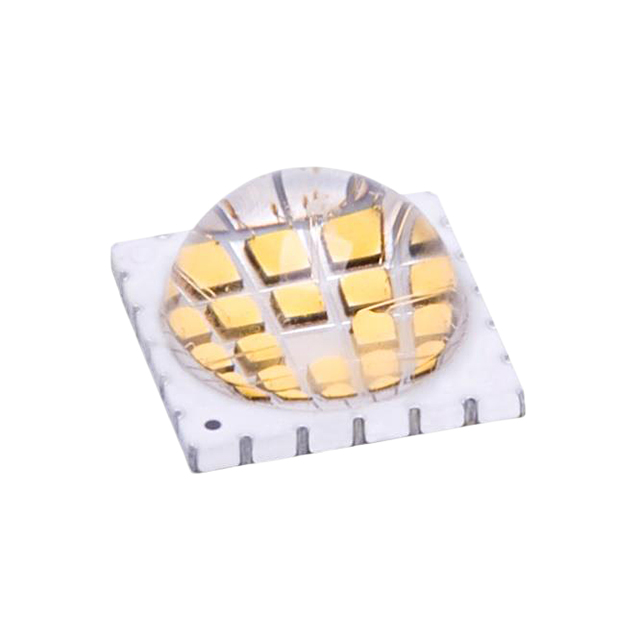

ams-OSRAM USA INC. LZP-D0CW0R-0000	75	10.45 mm	Domed	8.1 mm	110 °	1 A	LED Module	700 mA	4	18.9 V	28.3 mm		83 lm/W	Starboard	25 °C		4400 lm		Cool White					6500 K	5000 K
ams-OSRAM USA INC. LZP-D0WW0R-0230	83	10.45 mm	Domed	8.1 mm	110 °	1 A	LED Module	700 mA	4	18.9 V	28 mm	3000 K	68 lm/W	Starboard	25 °C	2900 lm	3600 lm	3800 lm	Warm White
