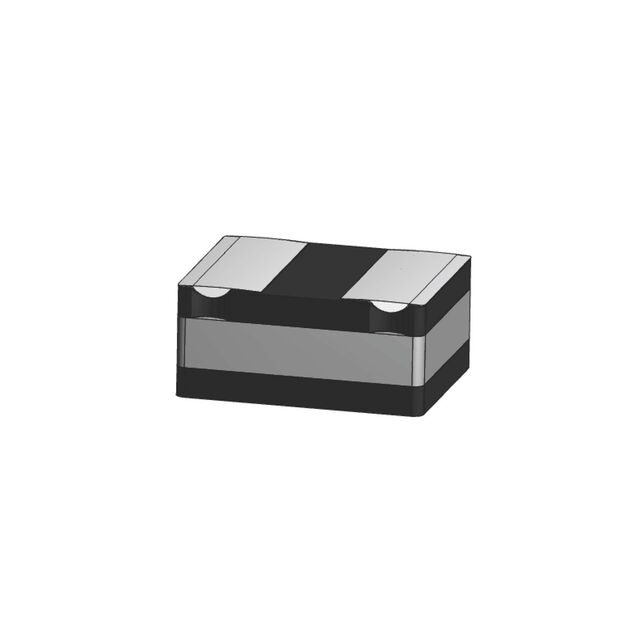

SDER031T Series
Manufacturer: Delta Electronics/Cyntec
Beta
⌘K
FIXED IND 10UH 850MA 438MOHM SMD
| Part | Inductance Frequency - Test | DC Resistance (DCR) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Current - Saturation (Isat) | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Inductance | Package / Case | Current Rating (Amps) | Mounting Type | DC Resistance (DCR) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics/Cyntec | 1 MHz | 438 mOhm | 3 mm | 0.118 in | 3 mm | 0.118 " | 0.68 A | Shielded | -55 C | 125 °C | 20 % | 0.039 in | 1 mm | 10 µH | Nonstandard | 0.85 A | Surface Mount | |
Delta Electronics/Cyntec | 1 MHz | 3 mm | 0.118 in | 3 mm | 0.118 " | 900 mA | Shielded | -55 C | 125 °C | 20 % | 0.039 in | 1 mm | 4.7 ÁH | Nonstandard | 1.3 A | Surface Mount | 199 mOhm | |
Delta Electronics/Cyntec | 1 MHz | 850 mOhm | 3 mm | 0.118 in | 3 mm | 0.118 " | 430 mA | Shielded | -55 C | 125 °C | 20 % | 0.039 in | 1 mm | 22 µH | Nonstandard | 600 mA | Surface Mount | |
Delta Electronics/Cyntec | 1 MHz | 107 mOhm | 3 mm | 0.118 in | 3 mm | 0.118 " | 1.44 A | Shielded | -55 C | 125 °C | 20 % | 0.039 in | 1 mm | 2.2 µH | Nonstandard | 1.7 A | Surface Mount |
