2842282 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

48P,2MM,SHRD HDR,DRVT,0.1AU,TB

Part	Insulation Height	Insulation Height	Number of Positions	Contact Shape	Insulation Material	Number of Positions Loaded	Style	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Voltage Rating	Contact Finish - Post	Termination	Contact Type	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating	Contact Length - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Number of Rows	Connector Type	Fastening Type	Contact Material	Mounting Type	Shrouding	Current Rating (Amps)	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Applications
TE Connectivity Raychem Cable Protection 4-2842282-8	6.05 mm	0.238 in	48	Square	Thermoplastic	All	Board to Board Cable	Black	3.94 µin	0.1 µm	125 VAC	Tin	Solder	Male Pin	0.11 in	2.8 mm	3.7 mm	0.146 in	0.079 in	2 mm	Gold	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	2	Header	Detent Lock	Copper Alloy	Through Hole	Shrouded - 2 Wall	2 A	2 çm	78.7 çin

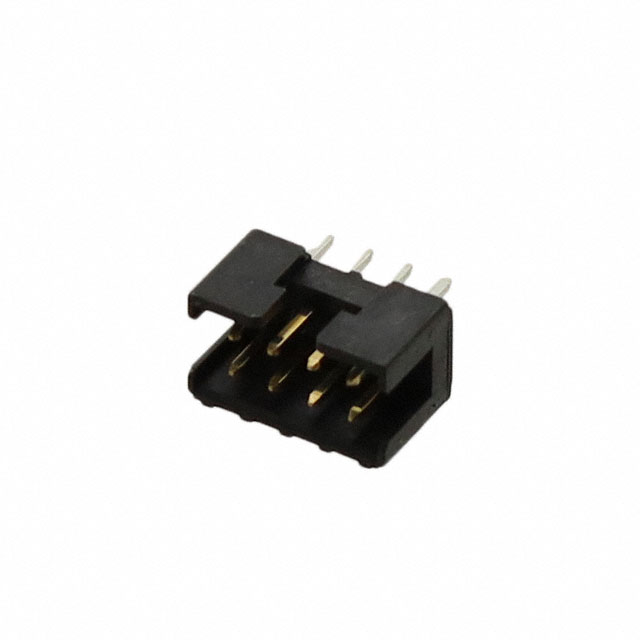

TE Connectivity Raychem Cable Protection 2842282-8	6.05 mm	0.238 in	8	Square	Thermoplastic	All	Board to Board Cable	Black	3.94 µin	0.1 µm	125 VAC	Tin	Solder	Male Pin	0.11 in		3.7 mm	0.145 in	0.079 in	2 mm	Gold	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	2	Header	Detent Lock	Copper Alloy	Through Hole	Shrouded - 2 Wall	2 A	2 çm	78.7 çin	2.79 mm	General Purpose Industrial
TE Connectivity Raychem Cable Protection 1-2842282-4	6.05 mm	0.238 in	14	Square	Thermoplastic	All	Board to Board Cable	Black	3.94 µin	0.1 µm	125 VAC	Tin	Solder	Male Pin	0.11 in	2.8 mm	3.7 mm	0.146 in	0.079 in	2 mm	Gold	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	2	Header	Detent Lock	Copper Alloy	Through Hole	Shrouded - 2 Wall	2 A	2 çm	78.7 çin
TE Connectivity Raychem Cable Protection 4-2842282-2	6.05 mm	0.238 in	42	Square	Thermoplastic	All	Board to Board Cable	Black	3.94 µin	0.1 µm	125 VAC	Tin	Solder	Male Pin	0.11 in	2.8 mm	3.7 mm	0.146 in	0.079 in	2 mm	Gold	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	2	Header	Detent Lock	Copper Alloy	Through Hole	Shrouded - 2 Wall	2 A	2 çm	78.7 çin
TE Connectivity Raychem Cable Protection 4-2842282-6	6.05 mm	0.238 in	46	Square	Thermoplastic	All	Board to Board Cable	Black	3.94 µin	0.1 µm	125 VAC	Tin	Solder	Male Pin	0.11 in	2.8 mm	3.7 mm	0.146 in	0.079 in	2 mm	Gold	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	2	Header	Detent Lock	Copper Alloy	Through Hole	Shrouded - 2 Wall	2 A	2 çm	78.7 çin
TE Connectivity Raychem Cable Protection 2-2842282-6	6.05 mm	0.238 in	26	Square	Thermoplastic	All	Board to Board Cable	Black	3.94 µin	0.1 µm	125 VAC	Tin	Solder	Male Pin	0.11 in	2.8 mm	3.7 mm	0.146 in	0.079 in	2 mm	Gold	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	2	Header	Detent Lock	Copper Alloy	Through Hole	Shrouded - 2 Wall	2 A	2 çm	78.7 çin
TE Connectivity Raychem Cable Protection 3-2842282-2	6.05 mm	0.238 in		Square	Thermoplastic	All	Board to Board Cable	Black	3.94 µin	0.1 µm	125 VAC	Tin	Solder	Male Pin	0.11 in	2.8 mm	3.7 mm	0.146 in	0.079 in	2 mm	Gold	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	2	Header	Detent Lock	Copper Alloy	Through Hole	Shrouded - 2 Wall	2 A	2 çm	78.7 çin
TE Connectivity Raychem Cable Protection 2-2842282-0	6.05 mm	0.238 in	20	Square	Thermoplastic	All	Board to Board Cable	Black	3.94 µin	0.1 µm	125 VAC	Tin	Solder	Male Pin	0.11 in	2.8 mm	3.7 mm	0.146 in	0.079 in	2 mm	Gold	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	2	Header	Detent Lock	Copper Alloy	Through Hole	Shrouded - 2 Wall	2 A	2 çm	78.7 çin
TE Connectivity Raychem Cable Protection 4-2842282-4	6.05 mm	0.238 in	44	Square	Thermoplastic	All	Board to Board Cable	Black	3.94 µin	0.1 µm	125 VAC	Tin	Solder	Male Pin	0.11 in	2.8 mm	3.7 mm	0.146 in	0.079 in	2 mm	Gold	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	2	Header	Detent Lock	Copper Alloy	Through Hole	Shrouded - 2 Wall	2 A	2 çm	78.7 çin
TE Connectivity Raychem Cable Protection 4-2842282-0	6.05 mm	0.238 in	40	Square	Thermoplastic	All	Board to Board Cable	Black	3.94 µin	0.1 µm	125 VAC	Tin	Solder	Male Pin	0.11 in	2.8 mm	3.7 mm	0.146 in	0.079 in	2 mm	Gold	0.079 in	2 mm	125 °C	-40 °C	UL94 V-0	2	Header	Detent Lock	Copper Alloy	Through Hole	Shrouded - 2 Wall	2 A	2 çm	78.7 çin
