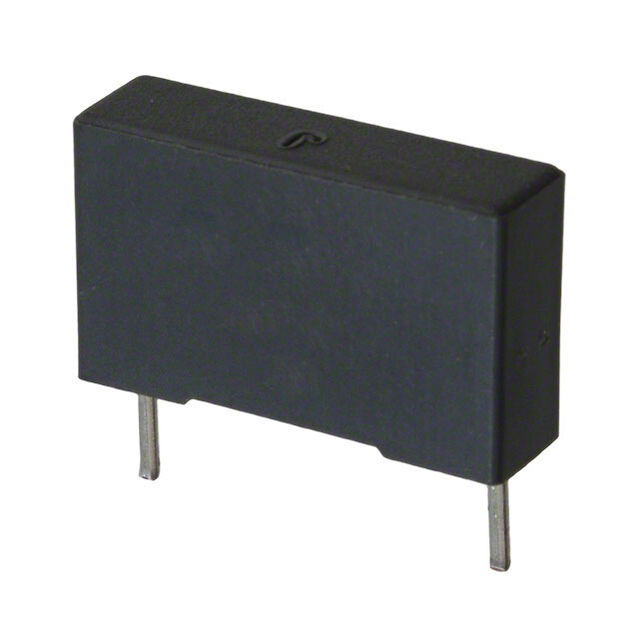

R75PI Series

Manufacturer: KEMET

Catalog

POWER FILM CAPACITOR, METALLIZED PP, RADIAL BOX - 2 PIN, 0.039 ΜF, ± 5%, HIGH FREQUENCY

Part	Capacitance	Termination	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Tolerance	Lead Spacing	Lead Spacing	Ratings	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Voltage Rating - AC	Height - Seated (Max)	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET R75PI239050H3J	0.039 µF	PC Pins	0.709 in	5 mm	18 mm	0.197 "	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	-55 C	125 °C	Polypropylene (PP) Metallized	5 %	15 mm	0.591 in	AEC-Q200	28.6 mOhms	11.1 mm	0.437 in	Radial	250 V
KEMET R75PI318050H7J	0.18 µF	PC Pins	0.709 in		18 mm	0.512 "	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	-55 C	125 °C	Polypropylene (PP) Metallized	5 %	15 mm	0.591 in	AEC-Q200	13.3 mOhms		0.476 "	Radial	250 V	12.1 mm	13 mm
KEMET R75PI256050H3J	56000 pF	PC Pins	0.709 in	5 mm	18 mm	0.197 "	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	-55 C	125 °C	Polypropylene (PP) Metallized	5 %	15 mm	0.591 in	AEC-Q200	28.4 mOhms	11.1 mm	0.437 in	Radial	250 V
KEMET R75PI2470AA30J		PC Pins	0.709 in	5 mm	18 mm	0.197 "	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	-55 C	105 ░C	Polypropylene (PP) Metallized	5 %	15 mm	0.591 in	AEC-Q200				Radial	250 V			11 mm	0.433 in
KEMET R75PI247050H3J		PC Pins	0.709 in	5 mm	18 mm	0.197 "	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	-55 C	125 °C	Polypropylene (PP) Metallized	5 %	15 mm	0.591 in	AEC-Q200	23.7 mOhms	11.1 mm	0.437 in	Radial	250 V
KEMET R75PI3330AA30K	0.33 µF	PC Pins	0.709 in		18 mm	0.433 in	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	-55 C	105 ░C	Polypropylene (PP) Metallized	10 %	15 mm	0.591 in	AEC-Q200	14 mOhms		0.752 "	Radial	250 V	19.1 mm	11 mm
KEMET R75PI322050H3J	0.22 µF	PC Pins	0.709 in		18 mm	0.394 in	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	-55 C	125 °C	Polypropylene (PP) Metallized	5 %	15 mm	0.591 in	AEC-Q200	10.9 mOhms			Radial	250 V	16.1 mm	10 mm		0.634 "
KEMET R75PI3330AA30J	0.33 µF	PC Pins	0.709 in		18 mm	0.433 in	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	-55 C	105 ░C	Polypropylene (PP) Metallized	5 %	15 mm	0.591 in	AEC-Q200	14 mOhms		0.752 "	Radial	250 V	19.1 mm	11 mm
KEMET R75PI315050H3J	0.15 ÁF	PC Pins	0.709 in		18 mm	0.335 in	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	-55 C	125 °C	Polypropylene (PP) Metallized	5 %	15 mm	0.591 in	AEC-Q200	10.6 mOhms	14.6 mm		Radial	250 V		8.5 mm		0.575 in
KEMET R75PI3150AA30K	0.15 ÁF	PC Pins	0.709 in		18 mm	0.335 in	Through Hole	Automotive High Frequency Switching High Pulse DV/DT	-55 C	105 ░C	Polypropylene (PP) Metallized	10 %	15 mm	0.591 in	AEC-Q200		14.6 mm		Radial	250 V		8.5 mm		0.575 in
