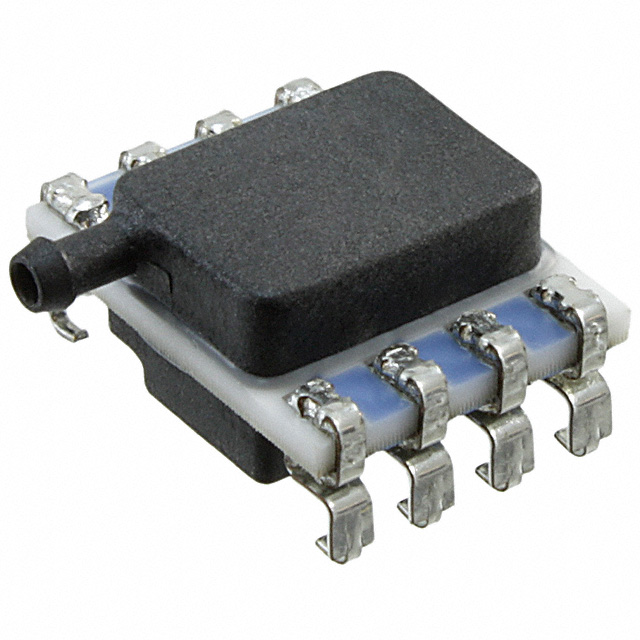

HSCMRND Series

Catalog

TRUSTABILITY PRESSURE SENSOR

Part	Package / Case	Applications	Accuracy	Maximum Pressure [Max]	Maximum Pressure [Max]	Port Style	Port Size [x]	Port Size	Port Size [x]	Operating Pressure	Operating Pressure	Output	Termination Style	Mounting Type	Supplier Device Package	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type	Pressure Type	Output [Max]	Output [Min]	Maximum Pressure	Maximum Pressure
Honeywell Sensing and Productivity Solutions HSCMRND100MGSA5
Honeywell Sensing and Productivity Solutions HSCMRND001BA2A5	8-SMD J-Lead Side Port	Board Mount	0.25 %	200 kPa	29.01 PSI	Barbed	1.93 mm	Male	0.08 "	100 kPa	14.5 PSI	12 b	J Lead	Surface Mount	8-SMD	Amplified Output Temperature Compensated	85 °C	-20 C	4.75 V	5.25 V	I2C
Honeywell Sensing and Productivity Solutions HSCMRND100PGSA3	8-SMD J-Lead Side Port	Board Mount	0.25 %	1723.69 kPa	250 PSI	Barbed	1.93 mm	Male	0.08 "	689.48 kPa	100 PSI	12 b	J Lead	Surface Mount	8-SMD	Amplified Output Temperature Compensated	85 °C	-20 C	3 V	3.6 V	SPI	Vented Gauge
Honeywell Sensing and Productivity Solutions HSCMRND030PA2A3	8-SMD J-Lead Side Port	Board Mount	0.25 %	413.69 kPa	60 PSI	Barbed	1.93 mm	Male	0.08 "	206.84 kPa	30 PSI	12 b	J Lead	Surface Mount	8-SMD	Amplified Output Temperature Compensated	85 °C	-20 C	3 V	3.6 V	I2C
Honeywell Sensing and Productivity Solutions HSCMRND100MDAB5	8-SMD J-Lead Side Port	Board Mount	0.25 %			Barbed	1.93 mm	Male	0.08 "	10 kPa	1.45 PSI		J Lead	Surface Mount	8-SMD	Amplified Output Temperature Compensated	85 °C	-20 C	4.75 V	5.25 V	Analog Voltage	Differential	4.75 V	0.25 V	20.31 PSI	140 kPa
