CC1000 Series

Catalog

IC RF TXRX ISM<1GHZ 28TSSOP

Part	Modulation	Serial Interfaces	Power - Output [Max]	Type	Sensitivity	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Transmitting [Max]	Current - Transmitting [Min]	RF Family/Standard	Data Rate (Max) [Max]	Current - Receiving [Min]	Current - Receiving [Max]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Frequency	Package / Case	Package / Case	Package / Case [y]	Supplied Contents
Texas Instruments CC1000PWG3	FSK	UART	10 dBm	TxRx Only	-110 dBm	Surface Mount	2.1 V	3.6 V	26.7 mA	5.3 mA	General ISM < 1GHz	76.8 kBaud	7.4 mA	9.6 mA	28-TSSOP	85 °C	-40 °C	315 MHz 433 MHz 868 MHz 915 MHz	28-TSSOP	0.173 in	4.4 mm
Texas Instruments CC1000PWR	FSK	UART	10 dBm	TxRx Only	-110 dBm	Surface Mount	2.1 V	3.6 V	26.7 mA	5.3 mA	General ISM < 1GHz	76.8 kBaud	7.4 mA	9.6 mA	28-TSSOP	85 °C	-40 °C	315 MHz 433 MHz 868 MHz 915 MHz	28-TSSOP	0.173 in	4.4 mm
Texas Instruments CC1000PPK-433				Transceiver														433 MHz				Board(s)

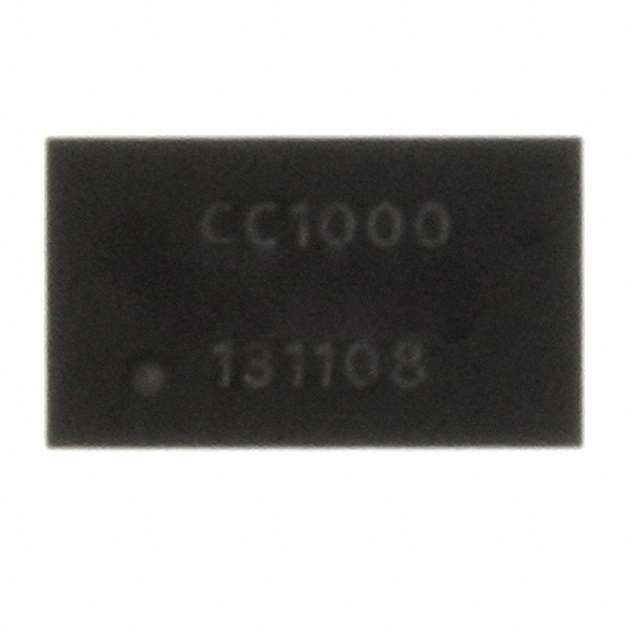

Texas Instruments CC1000YZ	FSK	UART	10 dBm	TxRx Only	-110 dBm	Surface Mount	2.1 V	3.6 V	26.7 mA	5.3 mA	General ISM < 1GHz	76.8 kBaud	7.4 mA	9.6 mA	28-UltraCSP™	85 °C	-40 °C	315 MHz 433 MHz 868 MHz 915 MHz	28-WFBGA CSPBGA
Texas Instruments CC1000PW	FSK	UART	10 dBm	TxRx Only	-110 dBm	Surface Mount	2.1 V	3.6 V	26.7 mA	5.3 mA	General ISM < 1GHz	76.8 kBaud	7.4 mA	9.6 mA	28-TSSOP	85 °C	-40 °C	315 MHz 433 MHz 868 MHz 915 MHz	28-TSSOP	0.173 in	4.4 mm
Texas Instruments CC1000PWRG3	FSK	UART	10 dBm	TxRx Only	-110 dBm	Surface Mount	2.1 V	3.6 V	26.7 mA	5.3 mA	General ISM < 1GHz	76.8 kBaud	7.4 mA	9.6 mA	28-TSSOP	85 °C	-40 °C	315 MHz 433 MHz 868 MHz 915 MHz	28-TSSOP	0.173 in	4.4 mm
Texas Instruments CC1000-RTR1	FSK	UART	10 dBm	TxRx Only	-110 dBm	Surface Mount	2.1 V	3.6 V	26.7 mA	5.3 mA	General ISM < 1GHz	76.8 kBaud	7.4 mA	9.6 mA	28-TSSOP	85 °C	-40 °C	315 MHz 433 MHz 868 MHz 915 MHz	28-TSSOP	0.173 in	4.4 mm
Texas Instruments CC1000-RTB1	FSK	UART	10 dBm	TxRx Only	-110 dBm	Surface Mount	2.1 V	3.6 V	26.7 mA	5.3 mA	General ISM < 1GHz	76.8 kBaud	7.4 mA	9.6 mA	28-TSSOP	85 °C	-40 °C	315 MHz 433 MHz 868 MHz 915 MHz	28-TSSOP	0.173 in	4.4 mm
