39-601 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
SWITCH PUSH SPST-NO 0.15A 5V
| Part | Electrical Life | Termination Style | Actuator Marking | Mounting Type | Switch Function | Panel Cutout Dimensions [diameter] | Voltage Rating - DC | Color - Actuator/Cap | Circuit | Actuator Type | Current Rating (Amps) | Features | Operating Temperature [Max] | Operating Temperature [Min] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

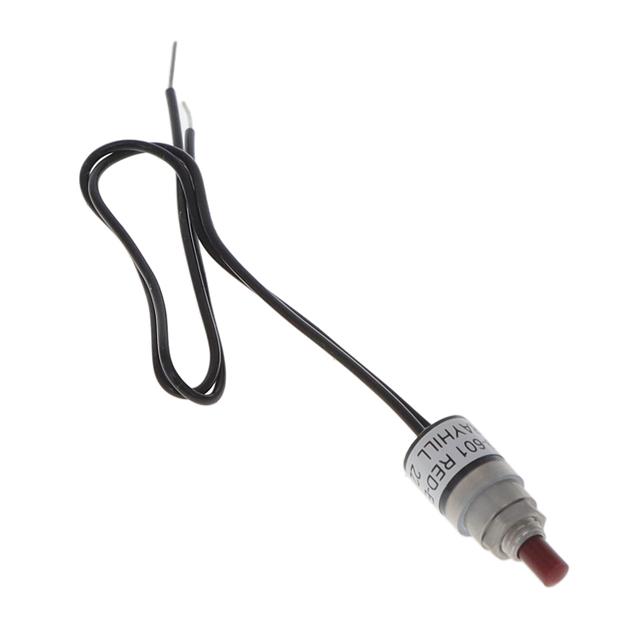

 Grayhill Inc. | 1000000 Cycles | Wire Leads | No Marking | Panel Mount Rear | Off-Mom | 4.37 mm | 5 V | Red | SPST-NO | Plunger Round | 150 mA | Epoxy Sealed Terminals | 85 °C | -40 C | Standard |
 Grayhill Inc. | 1000000 Cycles | Solder Lug | No Marking | Panel Mount Rear | Off-Mom | 4.37 mm | 5 V | Red | SPST-NO | Plunger Round | 150 mA | 85 °C | -40 C | Standard | |
 Grayhill Inc. | 1000000 Cycles | Wire Leads | No Marking | Panel Mount Rear | Off-Mom | 4.37 mm | 5 V | Black | SPST-NO | Plunger Round | 150 mA | Epoxy Sealed Terminals | 85 °C | -40 C | Standard |
