97-3101A18 Series
Manufacturer: Amphenol Industrial Operations
Catalog
CONN RCPT FMALE 5P SOLDER CUP
| Part | Contact Material | Insert Material | Applications | Shell Material | Features | Contact Finish - Mating | Shielding | Color | Connector Type | Mounting Type | Primary Material | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Orientation | Shell Finish | Number of Positions | Shell Size - Insert |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

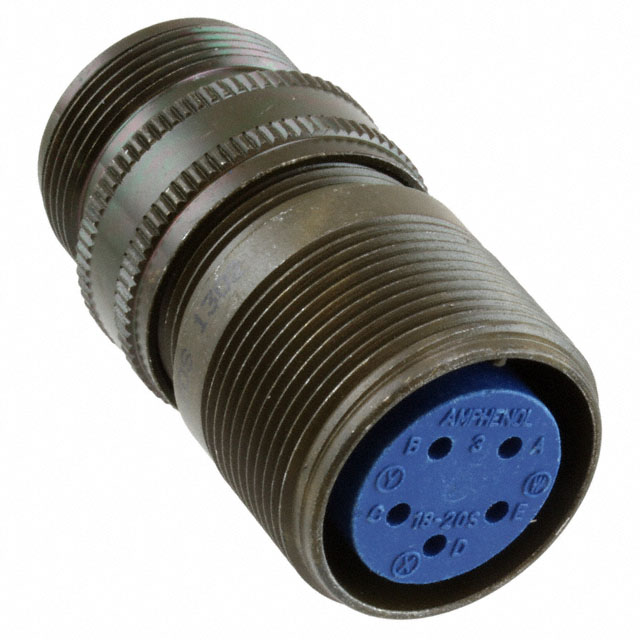

 Amphenol Industrial Operations | Copper Alloy | Diallyl Phthalate (DAP) | Automotive Industrial | Aluminum Alloy | Backshell | Silver | Unshielded | Olive Drab | Receptacle Female Sockets | Free Hanging (In-Line) | Metal | 18 | 20 | -55 °C | 125 °C | N | Olive Drab Chromate over Cadmium | ||

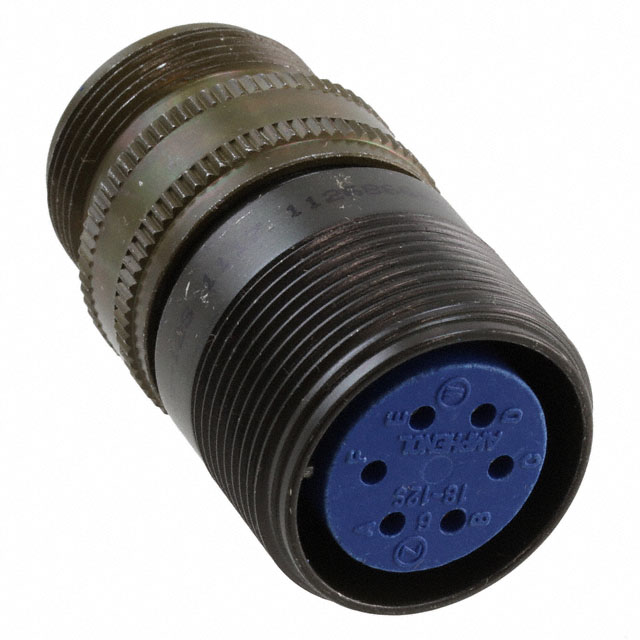

 Amphenol Industrial Operations | Copper Alloy | Diallyl Phthalate (DAP) | Automotive Industrial | Aluminum Alloy | Backshell | Silver | Unshielded | Olive Drab | Receptacle Female Sockets | Free Hanging (In-Line) | Metal | -55 °C | 125 °C | N | Olive Drab Chromate over Cadmium | 6 | 18-12 | ||

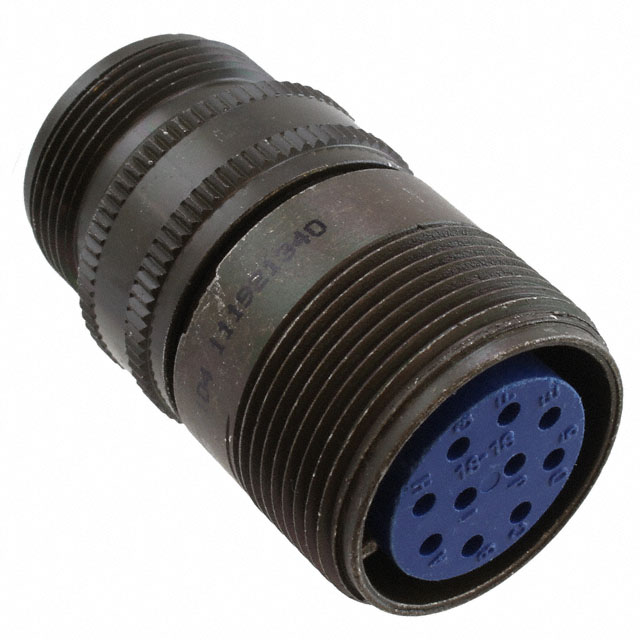

 Amphenol Industrial Operations | Copper Alloy | Diallyl Phthalate (DAP) | Automotive Industrial | Aluminum Alloy | Backshell | Silver | Unshielded | Olive Drab | Receptacle Female Sockets | Free Hanging (In-Line) | Metal | 18 | 1 | -55 °C | 125 °C | N | Olive Drab Chromate over Cadmium | 10 | |

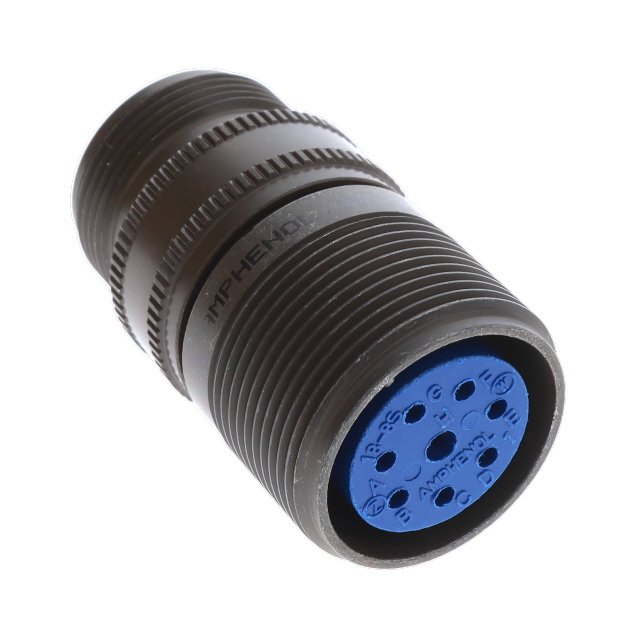

 Amphenol Industrial Operations | Copper Alloy | Diallyl Phthalate (DAP) | Automotive Industrial | Aluminum Alloy | Backshell | Silver | Unshielded | Olive Drab | Receptacle Female Sockets | Free Hanging (In-Line) | Metal | -55 °C | 125 °C | N | Olive Drab Chromate over Cadmium | 8 | 18-8 |
