DP1203 Series

Catalog

RF TXRX MOD ISM<1GHZSMD

Part	Current - Receiving	Antenna Type	Utilized IC / Part	RF Family/Standard	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensitivity	Power - Output	Data Rate	Current - Transmitting [Max]	Current - Transmitting [Min]	Mounting Type	Serial Interfaces	Frequency	Operating Temperature [Max]	Operating Temperature [Min]

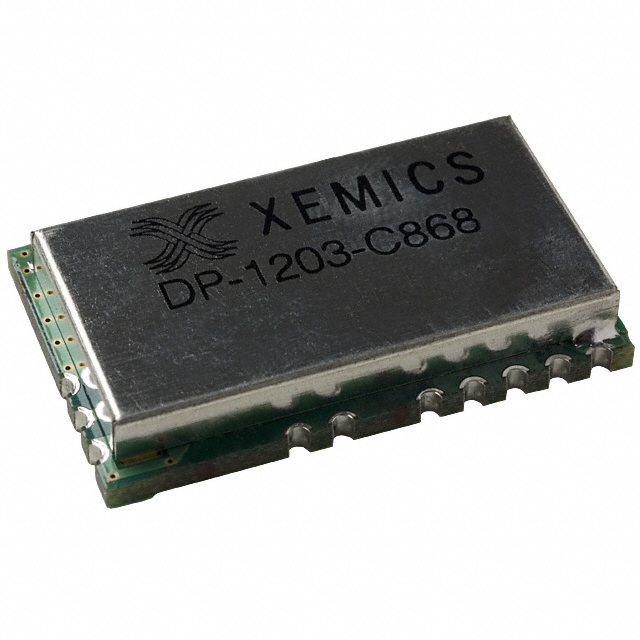

Semtech Corporation DP1203C868	14 mA	Antenna Not Included	XE1203	General ISM < 1GHz	Module	3.6 V	2.4 V	-111 dBc	11 dBm	152.3 kbps	62 mA	33 mA	Surface Mount	SPI	868 MHz	85 °C	-40 C
Semtech Corporation DP1203C9153LF	14 mA	Antenna Not Included	XE1203	General ISM < 1GHz	Module	3.6 V	2.4 V	-111 dBc	11 dBm	152.3 kbps	62 mA	33 mA	Surface Mount	SPI	915 MHz	85 °C	-40 C

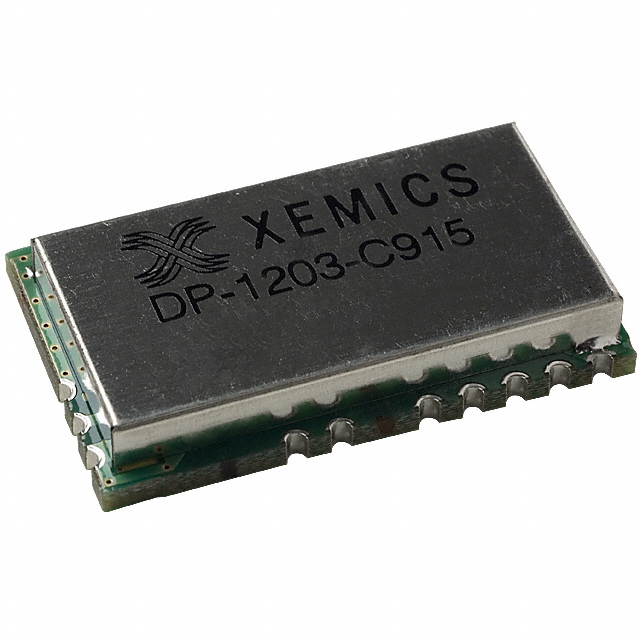

Semtech Corporation DP1203C915	14 mA	Antenna Not Included	XE1203	General ISM < 1GHz	Module	3.6 V	2.4 V	-111 dBc	11 dBm	152.3 kbps	62 mA	33 mA	Surface Mount	SPI	915 MHz	85 °C	-40 C

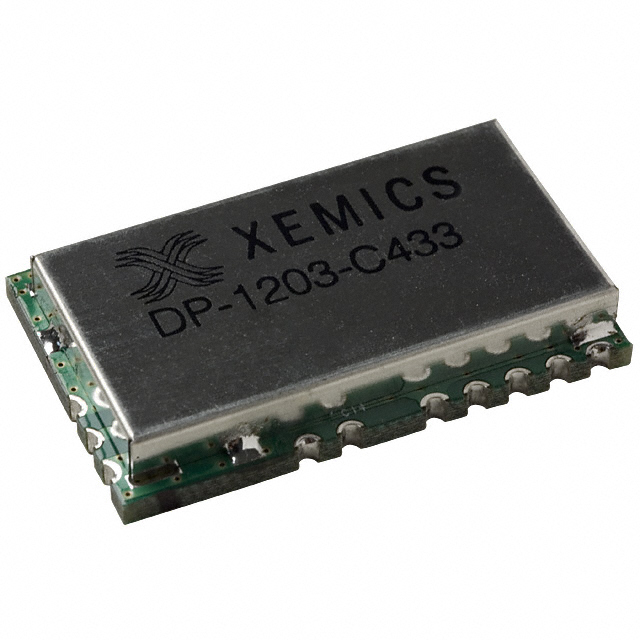

Semtech Corporation DP1203C4333	14 mA	Antenna Not Included	XE1203	General ISM < 1GHz	Module	3.6 V	2.4 V	-111 dBc	11 dBm	152.3 kbps	62 mA	33 mA	Surface Mount	SPI	433 MHz	85 °C	-40 C
Semtech Corporation DP1203C8683LF	14 mA	Antenna Not Included	XE1203	General ISM < 1GHz	Module	3.6 V	2.4 V	-111 dBc	11 dBm	152.3 kbps	62 mA	33 mA	Surface Mount	SPI	868 MHz	85 °C	-40 C
