NDL46 Series

Manufacturer: Insignis Technology Corporation

Catalog

IC DRAM 4GBIT PAR 96FBGA

Part	Memory Interface (Type)	Memory Type	Memory Size	Access Time	Write Cycle Time - Word	Write Cycle Time - Page	Memory Format	Clock Frequency	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Technology	Memory Width	Memory Depth	Package Length	Package Name	Package Width	Package / Case	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)
Insignis Technology Corporation NDL46PFP-9MIT TR	Parallel	Volatile	4 Gbit	20 ns	15 ns	15 ns	DRAM	933 MHz	95 °C	-40 °C	Surface Mount	SDRAM - DDR3L	16 bit	256 M	7.5 mm	96-FBGA	13.5 mm	96-TFBGA	1.45 V	1.283 V
Insignis Technology Corporation NDL46PFP-5GET	Parallel	Volatile	4 Gbit	20 ns	15 ns	15 ns	DRAM	1.066 GHz	95 °C	0 °C	Surface Mount	SDRAM - DDR3L	16 bit	256 M	7.5 mm	96-FBGA	13.5 mm	96-TFBGA	1.45 V	1.283 V
Insignis Technology Corporation NDL46PFP-5GIT	Parallel	Volatile	4 Gbit	20 ns	15 ns	15 ns	DRAM	1.066 GHz	95 °C	-40 °C	Surface Mount	SDRAM - DDR3L	16 bit	256 M	7.5 mm	96-FBGA	13.5 mm	96-TFBGA	1.45 V	1.283 V
Insignis Technology Corporation NDL46PFP-8KIT	Parallel	Volatile	4 Gbit	20 ns	15 ns	15 ns	DRAM	800 MHz	95 °C	-40 °C	Surface Mount	SDRAM - DDR3L	16 bit	256 M	7.5 mm	96-FBGA	13.5 mm	96-TFBGA	1.45 V	1.283 V
Insignis Technology Corporation NDL46PFP-9MET TR	Parallel	Volatile	4 Gbit				DRAM	933 MHz	95 °C	0 °C	Surface Mount	SDRAM - DDR3L	16 bit	256 M	7.5 mm	96-FBGA	13.5 mm	96-TFBGA	1.45 V	1.283 V
Insignis Technology Corporation NDL46PFP-9MET	Parallel	Volatile	4 Gbit				DRAM	933 MHz	95 °C	0 °C	Surface Mount	SDRAM - DDR3L	16 bit	256 M	7.5 mm	96-FBGA	13.5 mm	96-TFBGA	1.45 V	1.283 V
Insignis Technology Corporation NDL46PFP-8KET TR	Parallel	Volatile	4 Gbit				DRAM	800 MHz	95 °C	0 °C	Surface Mount	SDRAM - DDR3L	16 bit	256 M	7.5 mm	96-FBGA	13.5 mm	96-TFBGA	1.45 V	1.283 V

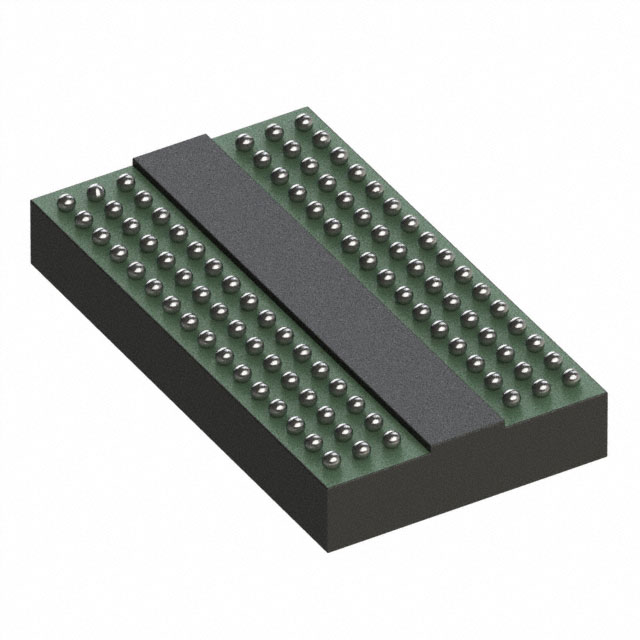

Insignis Technology Corporation NDL46PFP-9MIT	Parallel	Volatile	4 Gbit	20 ns	15 ns	15 ns	DRAM	933 MHz	95 °C	-40 °C	Surface Mount	SDRAM - DDR3L	16 bit	256 M	7.5 mm	96-FBGA	13.5 mm	96-TFBGA	1.45 V	1.283 V
Insignis Technology Corporation NDL46PFP-8KET	Parallel	Volatile	4 Gbit				DRAM	800 MHz	95 °C	0 °C	Surface Mount	SDRAM - DDR3L	16 bit	256 M	7.5 mm	96-FBGA	13.5 mm	96-TFBGA	1.45 V	1.283 V
