59S301 Series
Manufacturer: Rosenberger
Beta
⌘K

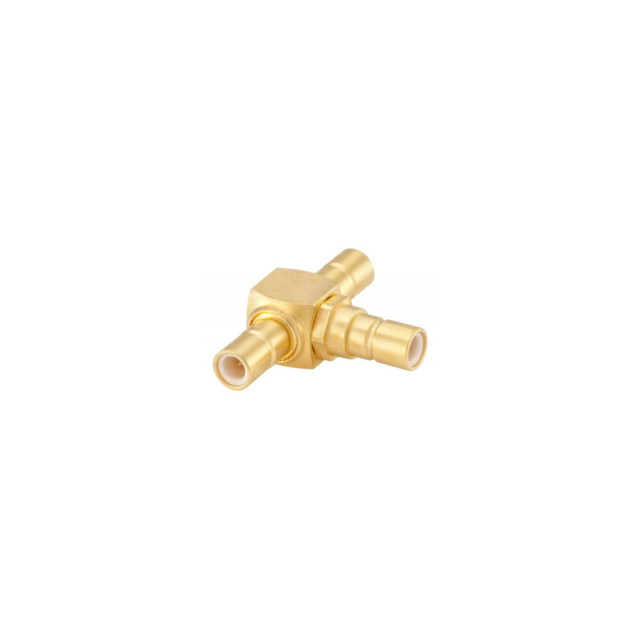

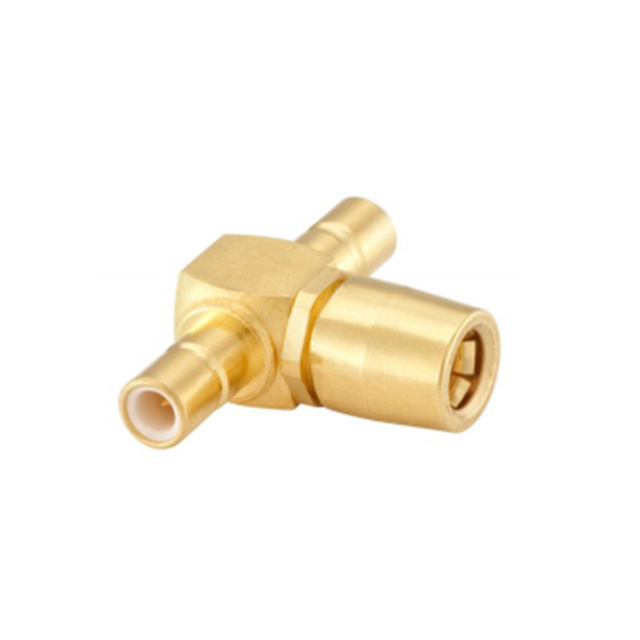

CONN T ADAPT SMB JACK TO 2 SMB P
| Part | Body Material | Operating Temperature [Max] | Operating Temperature [Min] | Body Finish | Mating Cycles | Center Contact Material | Dielectric Material | Adapter Type | Fastening Type | Fastening Type | Frequency - Max [Max] | Adapter Series | Convert From (Adapter End) | Center Contact Plating | Mounting Type | Style | Conversion Type | Impedance | Convert To (Adapter End) | Center Gender |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Brass | 155 C | -55 C | Gold | 500 | Beryllium Copper Brass | Polytetrafluoroethylene (PTFE) | Plug to Jack | Snap-On | Snap-On | 4 GHz | SMB to SMB Dual | SMB Jack Female Socket | Gold | Free Hanging (In-Line) | T-Shape | Same Series | 50 Ohms | SMB Plug Male Pin (2) | |
 Rosenberger | Brass | 155 C | -55 C | Gold | 500 | Brass | Polytetrafluoroethylene (PTFE) | Plug to Plug | Snap-On | Snap-On | 4 GHz | SMB to SMB | Gold | Free Hanging (In-Line) | T-Shape | Same Series | 50 Ohms | SMB Plug Male Pin (2) | Male to Male |
