1080 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

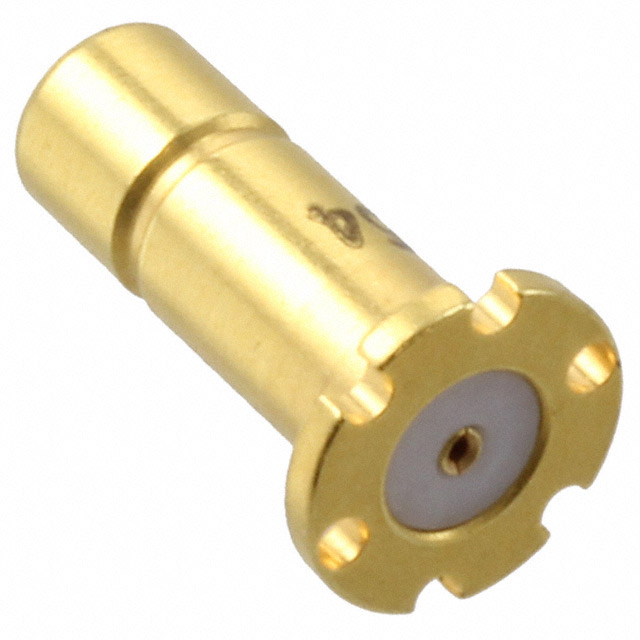

CONN SMB RCPT STR 50 OHM SMD
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Voltage Rating | Body Material | Mating Cycles | Center Contact Plating | Insertion Loss | Connector Style | Shield Termination | Mounting Type | Frequency - Max [Max] | Features | Center Contact Material | Mounting Feature | Housing Color | Contact Termination | Number of Ports | Fastening Type | Impedance | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | 335 V | Brass | 500 | Gold | 0.3 dB | SMB | Screw | Surface Mount | 4 GHz | Field Replaceable For Hermetically Sealed Pin | Beryllium Copper | Flange | Gold | Compression | 1 | Snap-On | 50 Ohms | Receptacle Male Pin |
