GLAC0 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 0.1A 50V
| Part | Switch Function | Mechanical Life | Operating Force | Current Rating (Amps) | Voltage Rating - DC | Circuit | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Pretravel | Pretravel | Actuator Type | Mounting Type | Voltage Rating - AC | Ingress Protection | Overtravel | Overtravel | Operating Position [custom] | Operating Position [custom] | Differential Travel | Features | Operating Position |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

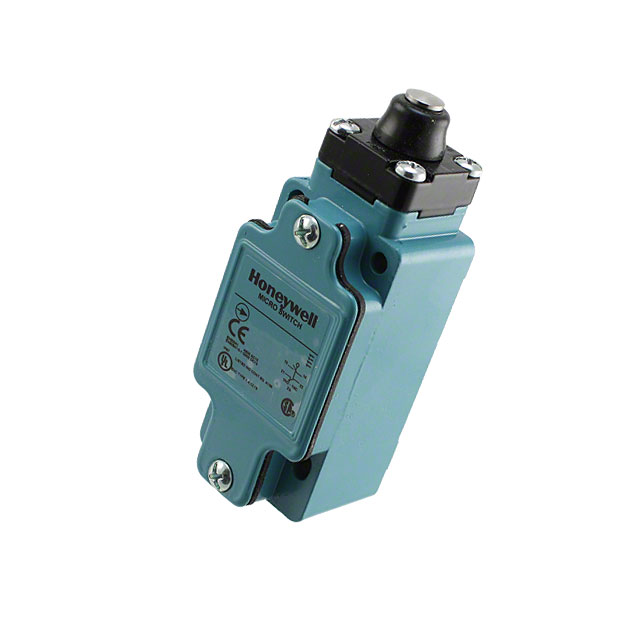

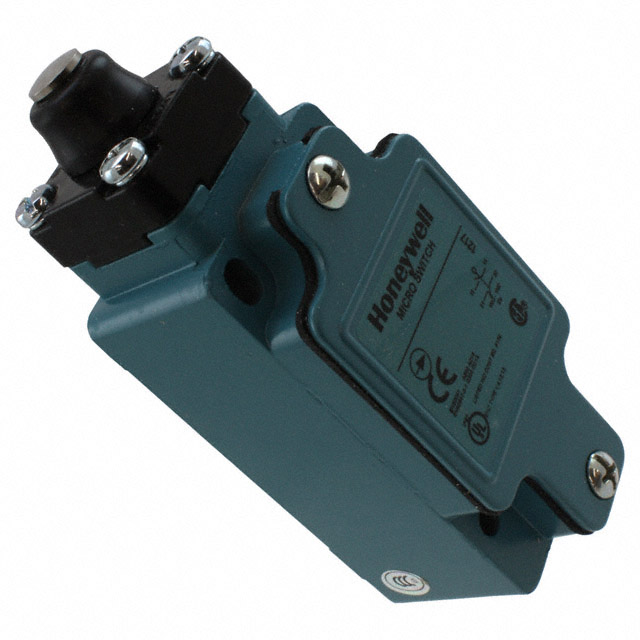

 Honeywell Sensing and Productivity Solutions | On-Mom | 15000000 Cycles | 1632 gf | 100 mA | 50 VDC | SPDT | -25 °C | 85 °C | Screw Terminal | 0.1 in | 2.5 mm | Round (Pin Plunger) | Chassis Mount | 50 V | IP67 - Dust Tight Waterproof | 0.18 in | 4.6 mm | 35 mm | 1.38 in | |||
 Honeywell Sensing and Productivity Solutions | On-Mom | 15000000 Cycles | 1632 gf | 6 A 550 mA | 125 VDC | SPDT | -25 °C | 85 °C | Screw Terminal | 0.1 in | 2.5 mm | Round (Pin Plunger) | Chassis Mount | 120 V | IP67 - Dust Tight Waterproof | 0.18 in | 4.6 mm | 35 mm | 1.38 in | |||

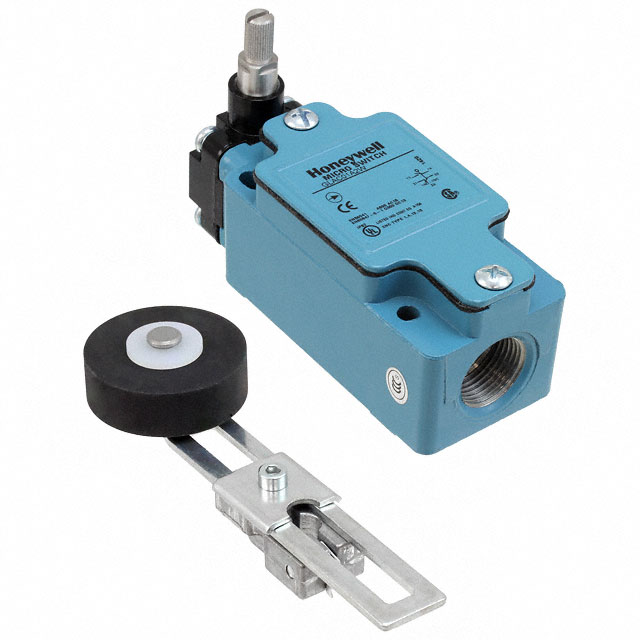

 Honeywell Sensing and Productivity Solutions | On-Mom | 15000000 Cycles | 33 gfm | 6 A 550 mA | 125 VDC | SPDT | -25 °C | 85 °C | Screw Terminal | 26 ° | Side Rotary Adjustable Roller | Chassis Mount | 120 V | IP67 - Dust Tight Waterproof | 59 ° | 12 ° | Rubber Roller | 26 ° | ||||

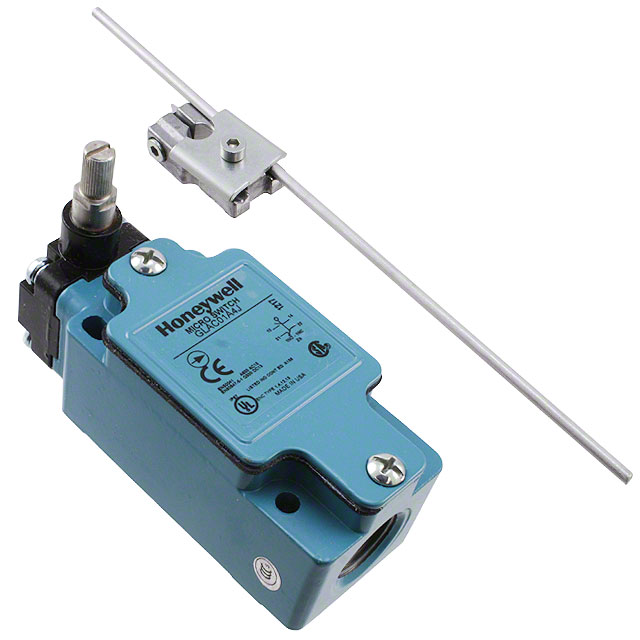

 Honeywell Sensing and Productivity Solutions | On-Mom | 15000000 Cycles | 33 gfm | 6 A 550 mA | 125 VDC | SPDT | -25 °C | 85 °C | Screw Terminal | 26 ° | Side Rotary Adjustable Rod | Chassis Mount | 120 V | IP67 - Dust Tight Waterproof | 59 ° | 12 ° | 26 ° |
