VIBLSD1 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 5V 1W

Part	Voltage - Input (Max) [Max]	Efficiency	Voltage - Input (Min) [Min]	Number of Outputs	Current - Output (Max) [Max]	Voltage - Isolation	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Size / Dimension [y]	Size / Dimension [z]

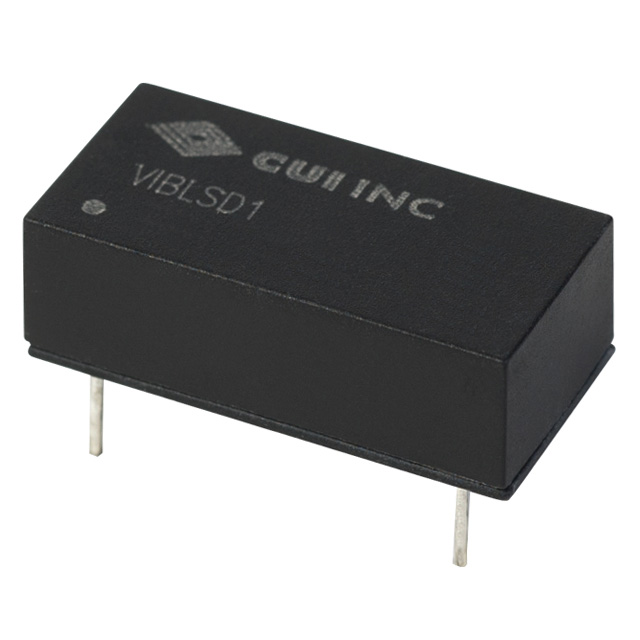

CUI Inc. VIBLSD1-S5-S5-DIP	5.25 V	69 %	4.75 V	1	200 mA	1000 V	5 V	0.8 "	6.5 mm	20.4 mm	0.39 in	10 mm	0.26 in	14-DIP Module (300 mil 5 Leads)	Isolated Module	SCP	85 °C	-40 C	Through Hole	ITE (Commercial)
CUI Inc. VIBLSD1-S12-S5-DIP	12.6 V	69 %	11.4 V	1	150 mA	1000 V	5 V	0.8 "	6.5 mm	20.4 mm	0.39 in	10 mm	0.26 in	14-DIP Module (300 mil 5 Leads)	Isolated Module	SCP	85 °C	-40 C	Through Hole	ITE (Commercial)

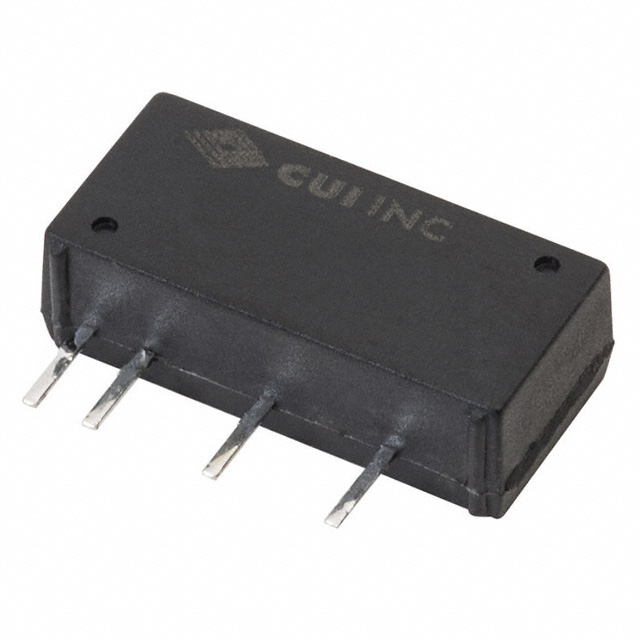

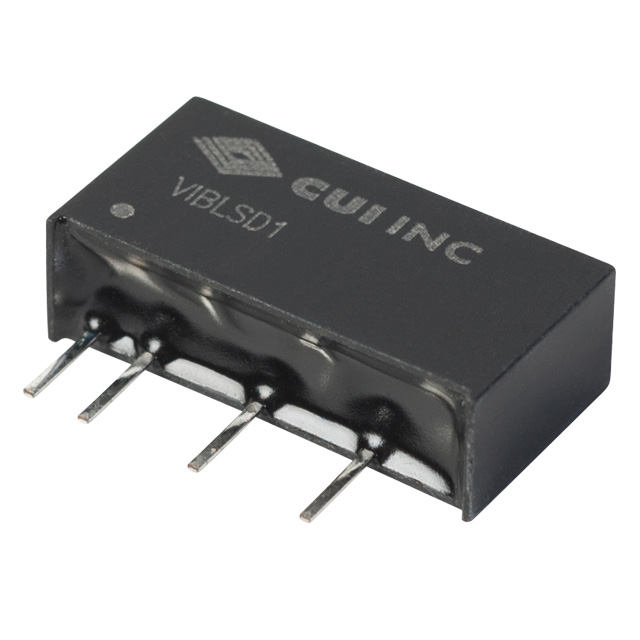

CUI Inc. VIBLSD1-S5-S5-SIP	5.25 V	69 %	4.75 V	1	150 mA	1000 V	5 V	0.77 in	10.2 mm	19.6 mm	0.24 "	6 mm	0.4 "	6-SIP Module 4 Leads	Isolated Module	SCP	85 °C	-40 C	Through Hole	ITE (Commercial)
CUI Inc. VIBLSD1-S5-S24-SIP	5.25 V	68 %	4.75 V	1	42 mA	1000 V	24 V	0.77 in	9.9 mm	19.6 mm	0.24 "	6.1 mm	0.39 "	6-SIP Module 4 Leads	Isolated Module	SCP	85 °C	-40 C	Through Hole	ITE (Commercial)
CUI Inc. VIBLSD1-S24-S24-DIP	25.2 V	68 %	22.8 V	1	42 mA	1000 V	24 V	0.79 "	7.2 mm	20.1 mm	0.39 in	9.9 mm	0.28 "	14-DIP Module 5 Leads	Isolated Module	SCP	85 °C	-40 C	Through Hole	ITE (Commercial)
CUI Inc. VIBLSD1-S24-S5-SIP	25.2 V	70 %	22.8 V	1	200 mA	1000 V	5 V	0.77 in	10.2 mm	19.6 mm	0.24 "	6 mm	0.4 "	6-SIP Module 4 Leads	Isolated Module	SCP	85 °C	-40 C	Through Hole	ITE (Commercial)
CUI Inc. VIBLSD1-S12-S15-DIP	12.6 V	72 %	11.4 V	1	67 mA	1000 V	15 V	0.8 "	6.5 mm	20.4 mm	0.39 in	10 mm	0.26 in	14-DIP Module (300 mil 5 Leads)	Isolated Module	SCP	85 °C	-40 C	Through Hole	ITE (Commercial)
CUI Inc. VIBLSD1-S5-S12-SIP	5.25 V	71 %	4.75 V	1	83 mA	1000 V	12 V	0.77 in	10.2 mm	19.6 mm	0.24 "	6 mm	0.4 "	6-SIP Module 4 Leads	Isolated Module	SCP	85 °C	-40 C	Through Hole	ITE (Commercial)
CUI Inc. VIBLSD1-S12-S9-SIP	12.6 V	72 %	11.4 V	1	111 mA	1000 V	9 V	0.77 in		19.6 mm	0.24 "		0.39 "	6-SIP Module 4 Leads	Isolated Module	SCP	85 °C	-40 C	Through Hole	ITE (Commercial)	6 mm	10 mm
CUI Inc. VIBLSD1-S12-S15-SIP	12.6 V	72 %	11.4 V	1	67 mA	1000 V	15 V	0.77 in	10.2 mm	19.6 mm	0.24 "	6 mm	0.4 "	6-SIP Module 4 Leads	Isolated Module	SCP	85 °C	-40 C	Through Hole	ITE (Commercial)
