0520-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC .080DIA SNNI
| Part | Contact Finish | Length - Overall [x] | Length - Overall [x] | Terminal Type | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Insulation | Terminal Style | Length - Above Flange [x] | Length - Above Flange [x] | Pin Size - Above Flange | Pin Size - Above Flange [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Contact Material | Termination | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

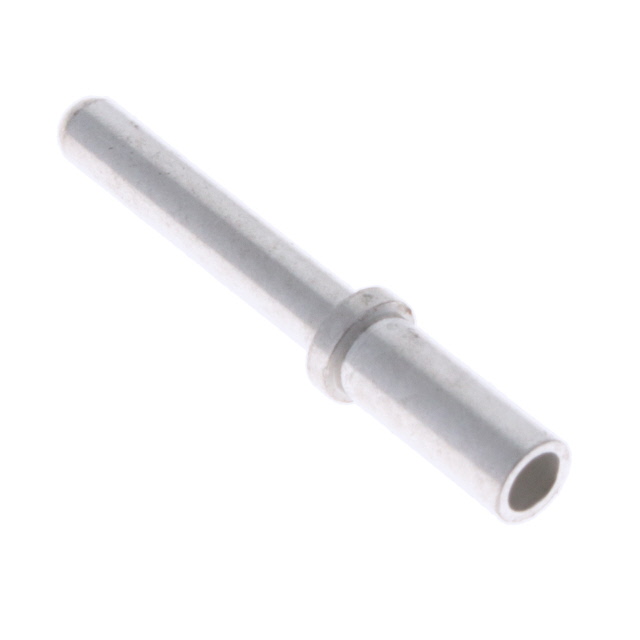

 Mill-Max Manufacturing Corp. | Tin-Lead | 18.8 mm | 0.74 in | PC Pin | 200 Áin | 5.08 Ám | Free Hanging (In-Line) | Non-Insulated | Wire | 11.68 mm | 0.46 in | 2.03 mm | 0.08 in | 6.35 mm | 0.25 " | Brass Alloy | Crimp | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm |

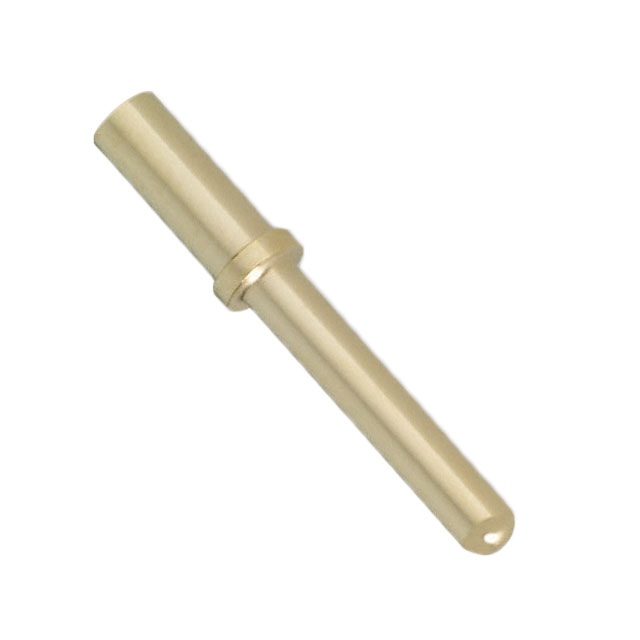

 Mill-Max Manufacturing Corp. | Gold | 18.8 mm | 0.74 in | PC Pin | 20 µin | 0.51 µm | Free Hanging (In-Line) | Non-Insulated | Wire | 11.68 mm | 0.46 in | 2.03 mm | 0.08 in | 6.35 mm | 0.25 " | Brass Alloy | Crimp | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm |
Mill-Max Manufacturing Corp. | Gold | 18.8 mm | 0.74 in | PC Pin | 50 µin | 1.27 µm | Free Hanging (In-Line) | Non-Insulated | Wire | 11.68 mm | 0.46 in | 2.03 mm | 0.08 in | 6.35 mm | 0.25 " | Brass Alloy | Crimp | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm |
 Mill-Max Manufacturing Corp. | Tin-Lead | 18.8 mm | 0.74 in | PC Pin | 200 Áin | 5.08 Ám | Free Hanging (In-Line) | Non-Insulated | Wire | 11.68 mm | 0.46 in | 2.03 mm | 0.08 in | 6.35 mm | 0.25 " | Brass Alloy | Crimp | 0.1 in | 2.54 mm | 0.125 in | 3.18 mm |
