PPTC261 Series

Catalog

CONN HDR 26POS 0.1 TIN PCB

Part	Contact Material	Contact Shape	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Number of Positions Loaded	Current Rating (Amps)	Contact Type	Pitch - Mating	Pitch - Mating	Insulation Color	Contact Finish - Post	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Fastening Type	Mounting Type	Insulation Height	Insulation Height	Number of Positions	Number of Rows	Voltage Rating	Contact Length - Post	Contact Length - Post
Sullins Connector Solutions PPTC261LFBN	Phosphor Bronze	Square	Polyester	-40 C	105 ░C	Solder	All	3 A	Female Socket	0.1 "	2.54 mm	Black	Tin	Header	0.126 "	3.2 mm	UL94 V-0	Push-Pull	Through Hole	0.335 "	8.51 mm	26	1	250 V
Sullins Connector Solutions PPTC261LFBN-RC	Phosphor Bronze	Square	Polyester	-40 C	105 ░C	Solder	All	3 A	Female Socket	0.1 "	2.54 mm	Black	Tin	Header	0.126 "	3.2 mm	UL94 V-0	Push-Pull	Through Hole	0.335 "	8.51 mm	26	1	250 V

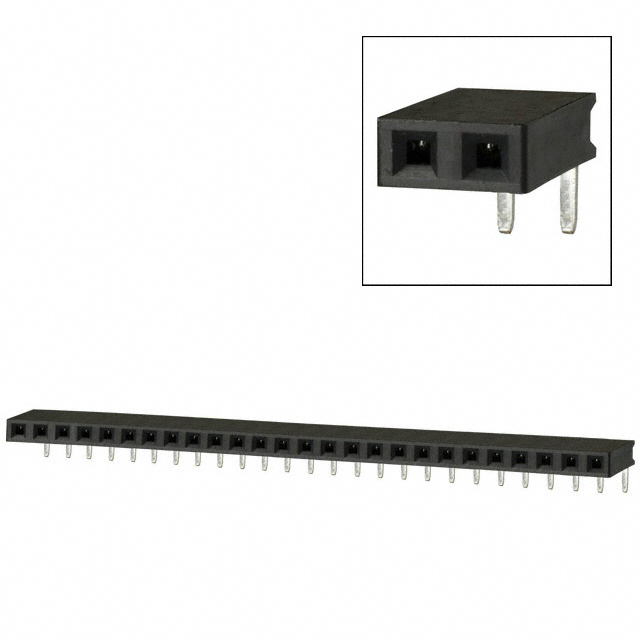

Sullins Connector Solutions PPTC261LGBN	Phosphor Bronze	Square	Polyester	-40 C	105 ░C	Solder	All	3 A	Female Socket	0.1 "	2.54 mm	Black	Tin	Header			UL94 V-0	Push-Pull	Right Angle Through Hole	0.1 in	2.54 mm	26	1	250 V	0.124 in	3.15 mm
Sullins Connector Solutions PPTC261LGBN-RC	Phosphor Bronze	Square	Polyester	-40 C	105 ░C	Solder	All	3 A	Female Socket	0.1 "	2.54 mm	Black	Tin	Header			UL94 V-0	Push-Pull	Right Angle Through Hole	0.1 in	2.54 mm	26	1	250 V	0.124 in	3.15 mm
