A21ASQ Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
RELAY AUTOMOTIVE SPST 40A 24V
| Part | Contact Material | Coil Power | Coil Resistance | Mounting Type | Switching Voltage [Max] | Coil Voltage | Must Operate Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Must Release Voltage | Coil Type | Operate Time | Contact Form | Termination Style | Coil Current | Contact Rating (Current) | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

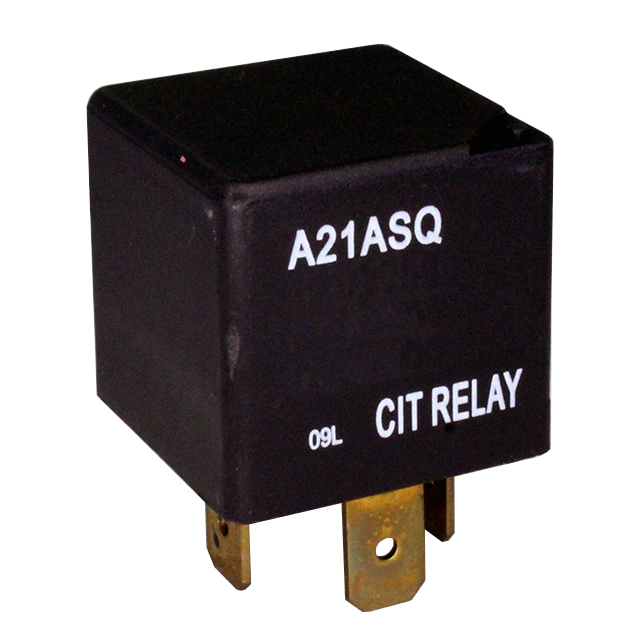

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.6 W | 360 Ohms | Socketable | 75 VDC | 24 VDC | 16.8 VDC | 125 °C | -40 C | 5 ms | 2.4 VDC | Non Latching | 7 ms | SPST-NO (1 Form A) | Plug In Quick Connect - 0.250" (6.3mm) | 66.7 mA | 40 A | Resistor Sealed - Fully |

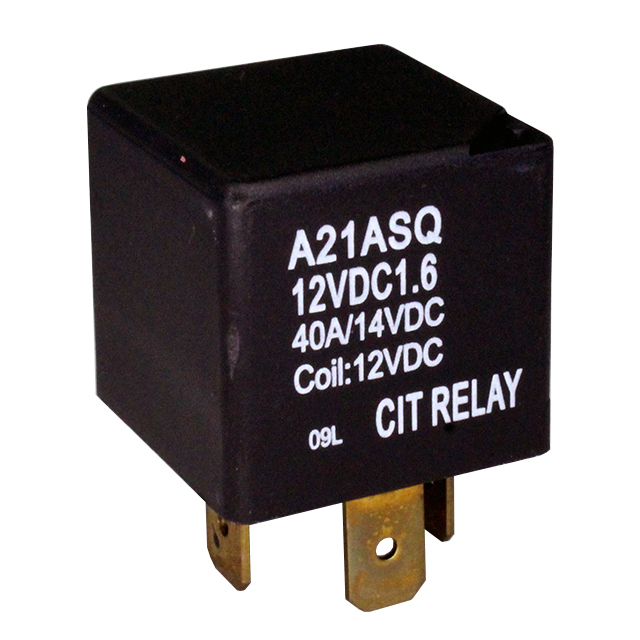

 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.6 W | 90 Ohms | Socketable | 75 VDC | 12 VDC | 8.4 VDC | 125 °C | -40 C | 5 ms | 1.2 VDC | Non Latching | 7 ms | SPST-NO (1 Form A) | Plug In Quick Connect - 0.250" (6.3mm) | 133.3 mA | 40 A | Diode Sealed - Fully |
 CIT Relay and Switch | Silver Tin Oxide (AgSnO) | 1.6 W | 360 Ohms | Socketable | 75 VDC | 24 VDC | 16.8 VDC | 125 °C | -40 C | 5 ms | 2.4 VDC | Non Latching | 7 ms | SPST-NO (1 Form A) | Plug In Quick Connect - 0.250" (6.3mm) | 66.7 mA | 40 A | Diode Sealed - Fully |
