S12B-XH Series

Catalog

CONN HEADER R/A 12POS 2.5MM

Part	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Contact Shape	Insulation Material	Number of Positions	Contact Type	Current Rating (Amps)	Fastening Type	Number of Positions Loaded	Insulation Color	Shrouding	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post	Number of Rows	Style	Mounting Type	Contact Material	Connector Type	Voltage Rating

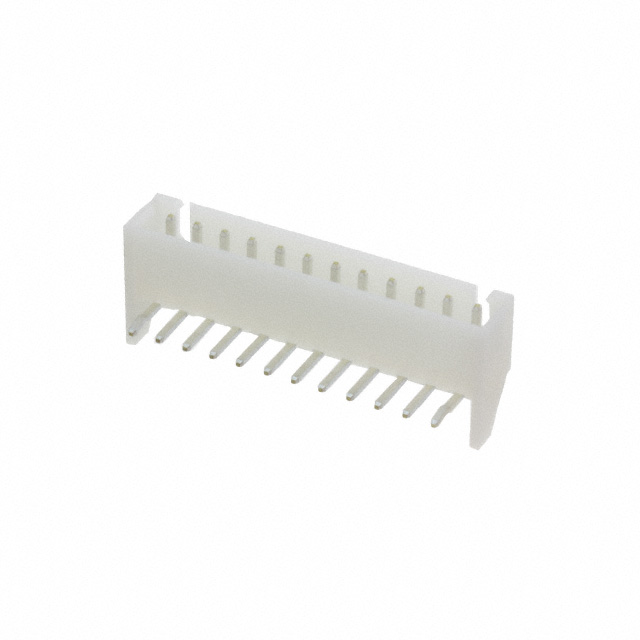

JST Sales America Inc. S12B-XH-A-1	85 °C	-25 °C	Press-Fit Solder	Square	Nylon 6/6 Polyamide (PA66)	12	Male Pin	3 A	Detent Lock	All	Natural	Shrouded - 4 Wall	Tin	6.1 mm	0.24 in	UL94 V-0	2.5 mm	0.098 in	0.134 "	3.4 mm	1	Board to Cable/Wire	Right Angle Through Hole	Brass	Header	250 V

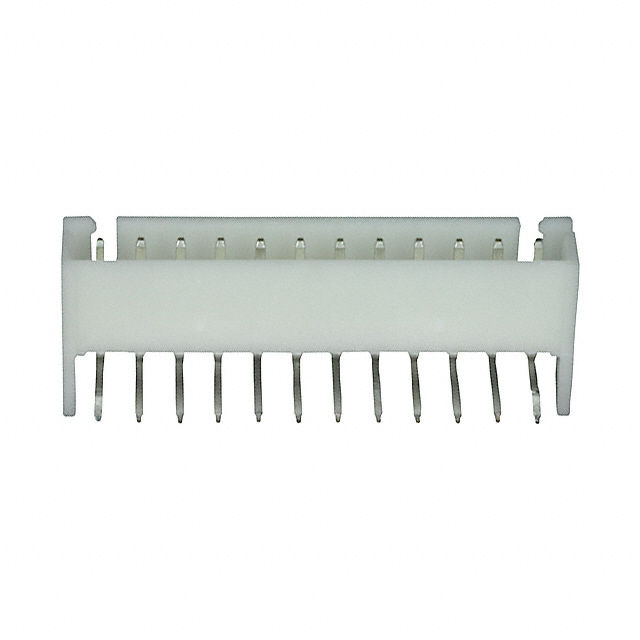

JST Sales America Inc. S12B-XH-A	85 °C	-25 °C	Press-Fit Solder	Square	Nylon 6/6 Polyamide (PA66)	12	Male Pin	3 A	Detent Lock	All	Natural	Shrouded - 4 Wall	Tin	6.1 mm	0.24 in	UL94 V-0	2.5 mm	0.098 in	0.134 "	3.4 mm	1	Board to Cable/Wire	Right Angle Through Hole	Brass	Header	250 V
