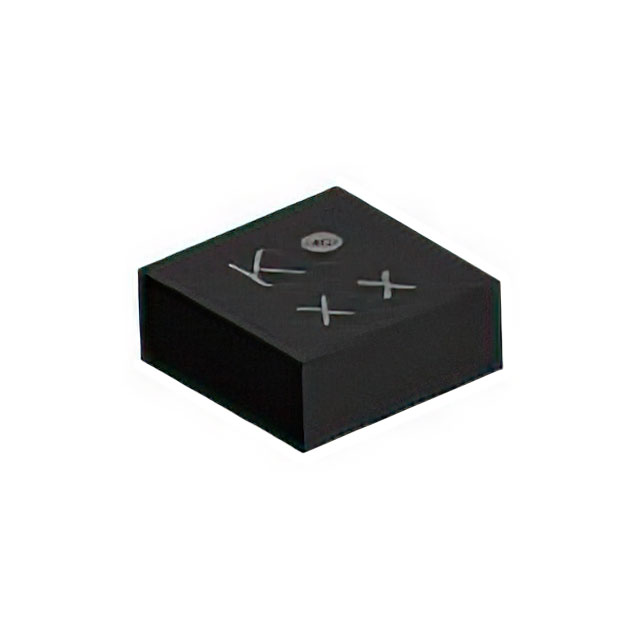

MMC3630 Series
Manufacturer: Memsic Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
MAGNETIC SENSOR 3-AXIS 1.2X1.2MM
| Part | Voltage - Supply (Minimum) | Voltage - Supply (Maximum) | Package / Case | Operating Temperature (Min) | Operating Temperature (Max) | Technology | Axis | Mounting Type | Current - Supply (Max) | Features | Package Name | Package Length | Package Width | Sensing Range (Min) | Sensing Range (Max) | Output Type | Resolution | Bandwidth |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Memsic Inc. | 1.62 V | 3.6 V | 8-WFBGA FCBGA | -40 °C | 85 °C | Magnetoresistive | X Y Z | Surface Mount | 300 µA | Internal Magnet Temperature Compensated | 8-BGA | 1.2 mm | 1.2 mm | -3 mT | 3 mT | I2C | 16 b | 600 Hz |
