171857 Series

2.54mm Pitch, KK 254 RPC Wire-to-Board Right-Angle Header with Friction Lock, Tin (Sn) Plating, Bag, 8 Circuits

Manufacturer: Molex

Catalog

2.54mm Pitch, KK 254 RPC Wire-to-Board Right-Angle Header with Friction Lock, Tin (Sn) Plating, Bag, 8 Circuits

Part	Contact Shape	Connector Type	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Fastening Type	Insulation Color	Insulation Material	Number of Positions	Number of Positions Loaded	Style	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Type	Material Flammability Rating	Applications	Shrouding	Mounting Type	Insulation Height	Insulation Height	Termination	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating

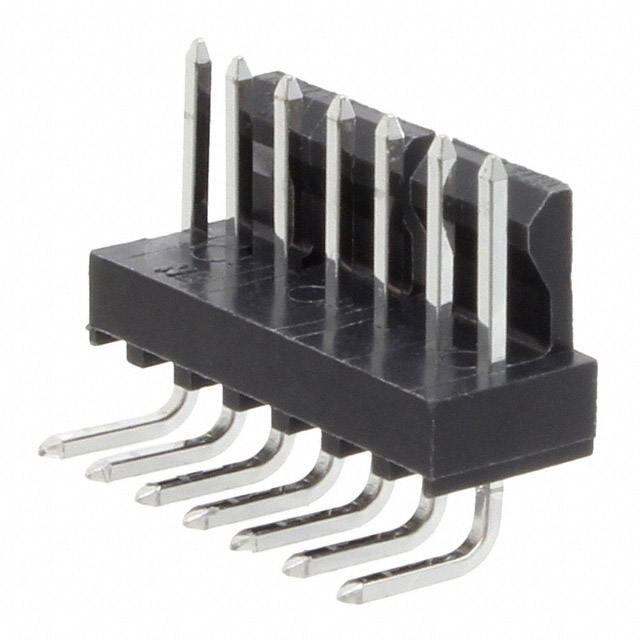

Molex 1718570007	Square	Header	1	60 µin	1.52 µm	Friction Lock	Black	Nylon Polyamide (PA)	7	All	Board to Board Cable	0.265 in	6.73 mm	Male Pin	UL94 V-2	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	Through Hole Right Angle	6.35 mm	0.25 in	Solder	Tin	2.54 mm	0.1 in	Brass	60 Áin	1.52 Ám	0.1 in	2.54 mm

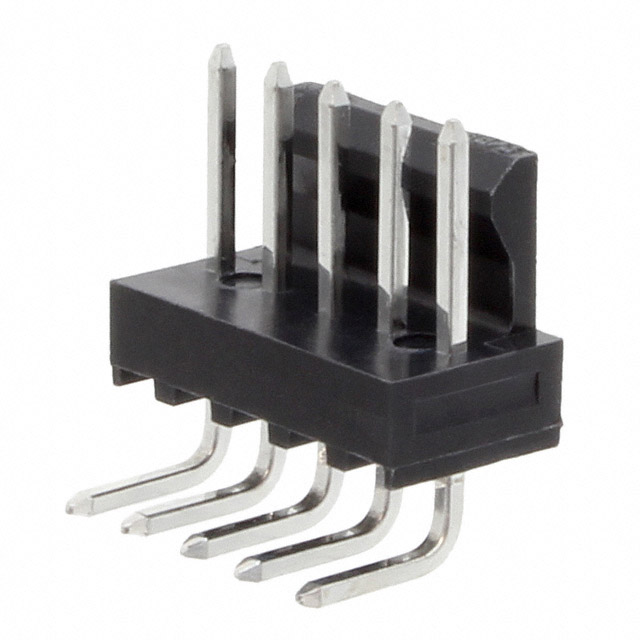

Molex 1718570005	Square	Header	1	60 µin	1.52 µm	Friction Lock	Black	Nylon Polyamide (PA)		All	Board to Board Cable	0.265 in	6.73 mm	Male Pin	UL94 V-2	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	Through Hole Right Angle	6.35 mm	0.25 in	Solder	Tin	2.54 mm	0.1 in	Brass	60 Áin	1.52 Ám	0.1 in	2.54 mm
Molex 1718574005	Square	Header	1	100 µin	2.54 µm	Friction Lock	Black	Nylon Polyamide (PA)		All	Board to Board Cable	0.265 in	6.73 mm	Male Pin	UL94 V-2	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	Through Hole Right Angle	6.35 mm	0.25 in	Solder	Tin	2.54 mm	0.1 in	Brass	15 µin	0.38 µm	0.1 in	2.54 mm	Gold

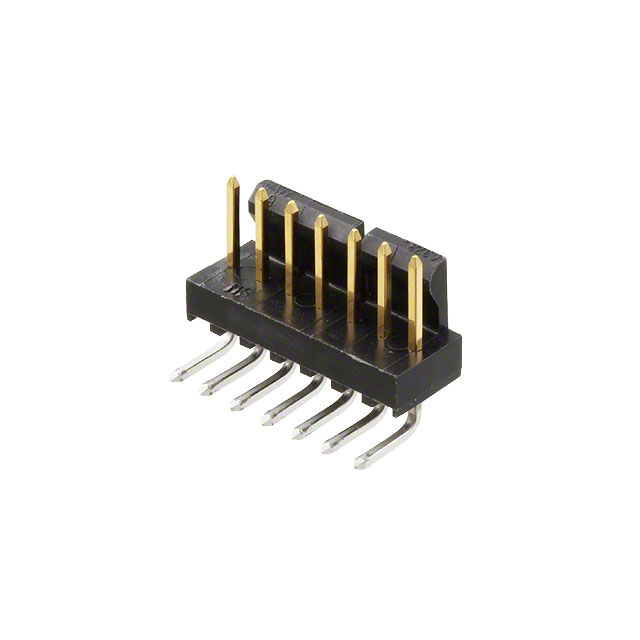

Molex 1718571007	Square	Header	1	100 µin	2.54 µm	Friction Lock	Black	Nylon Polyamide (PA)	7	All	Board to Board Cable	0.265 in	6.73 mm	Male Pin	UL94 V-2	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	Through Hole Right Angle	6.35 mm	0.25 in	Solder	Tin	2.54 mm	0.1 in	Brass	15 µin	0.38 µm	0.1 in	2.54 mm	Gold

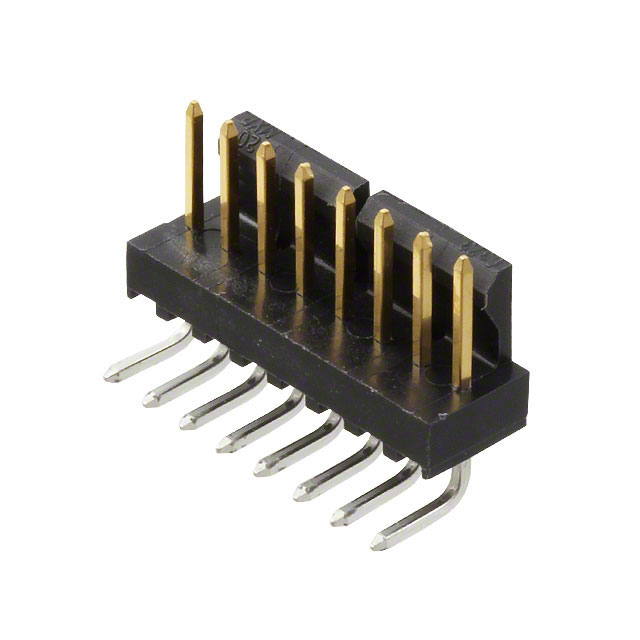

Molex 1718571008	Square	Header	1	100 µin	2.54 µm	Friction Lock	Black	Nylon Polyamide (PA)	8	All	Board to Board Cable	0.265 in	6.73 mm	Male Pin	UL94 V-2	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	Through Hole Right Angle	6.35 mm	0.25 in	Solder	Tin	2.54 mm	0.1 in	Brass	15 µin	0.38 µm	0.1 in	2.54 mm	Gold

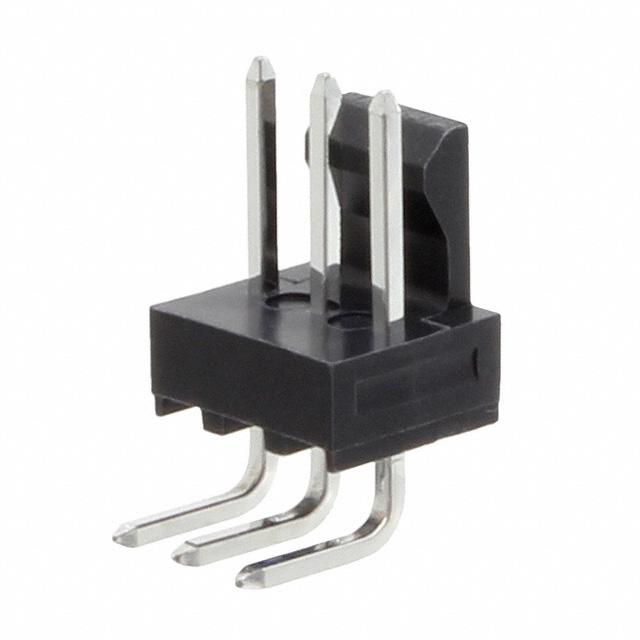

Molex 1718570003	Square	Header	1	60 µin	1.52 µm	Friction Lock	Black	Nylon Polyamide (PA)		All	Board to Board Cable	0.265 in	6.73 mm	Male Pin	UL94 V-2	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	Through Hole Right Angle	6.35 mm	0.25 in	Solder	Tin	2.54 mm	0.1 in	Brass	60 Áin	1.52 Ám	0.1 in	2.54 mm
Molex 1718571010	Square	Header	1	100 µin	2.54 µm	Friction Lock	Black	Nylon Polyamide (PA)	10	All	Board to Board Cable	0.265 in	6.73 mm	Male Pin	UL94 V-2	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	Through Hole Right Angle	6.35 mm	0.25 in	Solder	Tin	2.54 mm	0.1 in	Brass	15 µin	0.38 µm	0.1 in	2.54 mm	Gold
Molex 1718573012	Square	Header	1	60 µin	1.52 µm	Friction Lock	Black	Nylon Polyamide (PA)	12	All	Board to Board Cable	0.265 in	6.73 mm	Male Pin	UL94 V-2	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	Through Hole Right Angle	6.35 mm	0.25 in	Solder	Tin	2.54 mm	0.1 in	Brass	60 Áin	1.52 Ám	0.1 in	2.54 mm

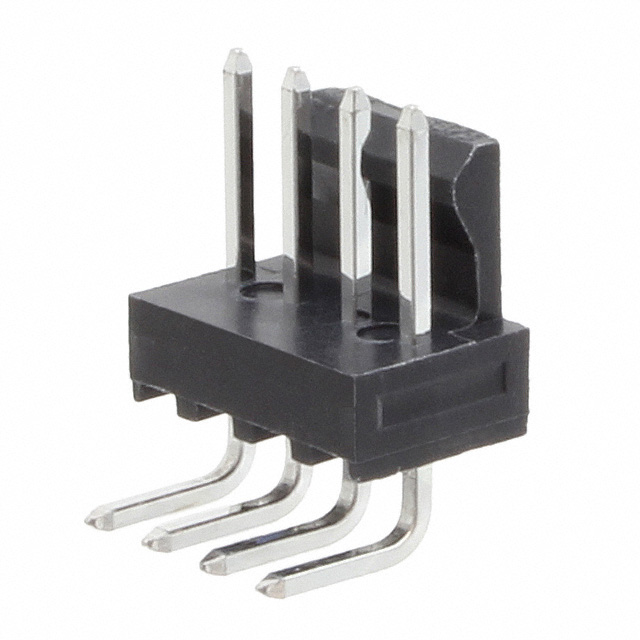

Molex 1718570004	Square	Header	1	60 µin	1.52 µm	Friction Lock	Black	Nylon Polyamide (PA)	4	All	Board to Board Cable	0.265 in	6.73 mm	Male Pin	UL94 V-2	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	Through Hole Right Angle	6.35 mm	0.25 in	Solder	Tin	2.54 mm	0.1 in	Brass	60 Áin	1.52 Ám	0.1 in	2.54 mm

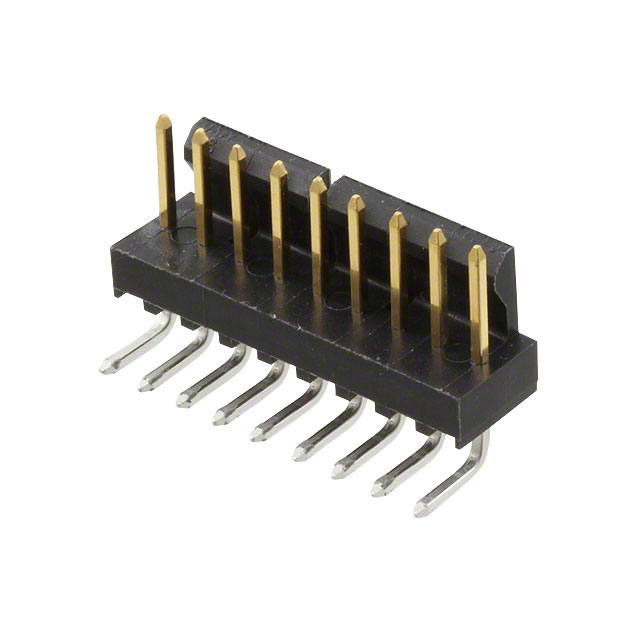

Molex 1718571009	Square	Header	1	100 µin	2.54 µm	Friction Lock	Black	Nylon Polyamide (PA)	9	All	Board to Board Cable	0.265 in	6.73 mm	Male Pin	UL94 V-2	Automotive General Purpose Medical Telecommunications	Shrouded - 1 Wall	Through Hole Right Angle	6.35 mm	0.25 in	Solder	Tin	2.54 mm	0.1 in	Brass	15 µin	0.38 µm	0.1 in	2.54 mm	Gold
