PJA Series

Catalog

SWITCHING POWER SUPPLIES AC-DC POWER SUPPLY, ENCLOSED TYPE,1500W 24V 65A W/ EXTERNAL POTENTIOMETER

...

Part	Current - Output 1	Efficiency	Applications	Voltage - Isolation	Type	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Features	Approval Agency	Power (Watts)	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Standard Number	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Current - Output (Max) [Max]	Input Type	Voltage - Output 1 [custom]

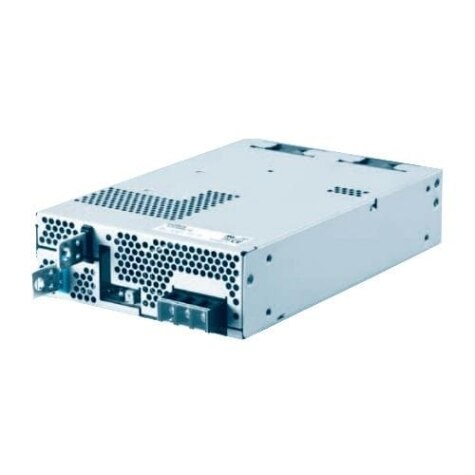

Cosel USA, Inc. PJA1500F-24-V	64 A	88 %	ITE (Commercial)	3000 V	Enclosed	1	70 °C	-20 °C	24 V	Adjustable Output PFC Universal Input	CE cURus DEMKO	1.536 kW	Chassis Mount	10.55 "	178.1 mm	2.4 in	7.01 in	61 mm	268 mm
Cosel USA, Inc. PJA1500F-12-R	125 A	85 %	ITE (Commercial)	3000 V	Enclosed	1	70 °C	-20 °C	12 V	Adjustable Output PFC Remote On/Off Universal Input	CE cURus DEMKO	1500 W	Chassis Mount	10.55 "	178.1 mm	2.4 in	7.01 in	61 mm	268 mm
Cosel USA, Inc. PJA1000F-48	21 A	88 %	ITE (Commercial)	3000 V	Enclosed	1	70 °C	-20 °C	48 V	Universal Input	CE CSA cURus DEMKO UL	1 kW	Chassis Mount	9.45 "	150.1 mm	2.4 in	5.91 in	61 mm	240 mm	508; 60950-1; 62368-1
Cosel USA, Inc. PJA1000F-12-R	84 A	85 %	ITE (Commercial)	3000 V	Enclosed	1	70 °C	-20 °C	12 V	Adjustable Output PFC Remote On/Off Universal Input	CE cURus DEMKO	1.008 kW	Chassis Mount	9.45 "	150.1 mm	2.4 in	5.91 in	61 mm	240 mm

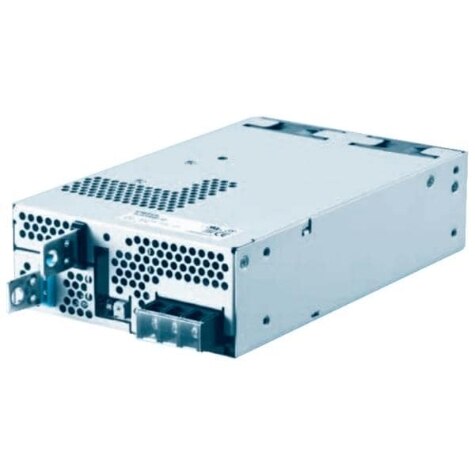

Cosel USA, Inc. PJA1000F-12-G	84 A	85 %	ITE (Commercial)	3000 V	Enclosed	1	70 °C	-20 °C	12 V	Adjustable Output PFC Universal Input	CE cURus DEMKO	1.008 kW	Chassis Mount	9.45 "	150.1 mm	2.4 in	5.91 in	61 mm	240 mm
Cosel USA, Inc. PJA150F-15-R	10 A	87 %	ITE (Commercial)	3000 V	Enclosed	1	70 °C	-20 °C	15 V		CE CSA cURus DEMKO UL	150 W	Chassis Mount	5.08 "	40.9 mm	3.82 "	1.61 in	97 mm	129 mm	508; 60950-1; 62368-1
Cosel USA, Inc. PJA1500F-24-W	64 A	88 %	ITE (Commercial)	3000 V	Enclosed	1	70 °C	-20 °C	24 V	Adjustable Output PFC Remote Sense Universal Input	CE cURus DEMKO	1.536 kW	Chassis Mount	10.55 "	178.1 mm	2.4 in	7.01 in	61 mm	268 mm
Cosel USA, Inc. PJA100F-24-N2		88 %	ITE (Commercial)	3000 V		1	70 °C	-20 °C	24 V	Universal Input	CE CSA cURus DEMKO UL	103 W		4.29 "	40.9 mm	3.82 "	1.61 in	97 mm	109 mm	508; 60950-1; 62368-1	264 VAC	85 VAC	4.3 A	AC
Cosel USA, Inc. PJA1000F-48-R	21 A	88 %	ITE (Commercial)	3000 V	Enclosed	1	70 °C	-20 °C	48 V	Adjustable Output PFC Remote On/Off Universal Input	CE cURus DEMKO	1.008 kW	Chassis Mount	9.45 "	150.1 mm	2.4 in	5.91 in	61 mm	240 mm
Cosel USA, Inc. PJA1500F-36-G	42 A	88 %	ITE (Commercial)	3000 V	Enclosed	1	70 °C	-20 °C		Adjustable Output PFC Universal Input	CE cURus DEMKO	1512 W	Chassis Mount	10.55 "	178.1 mm	2.4 in	7.01 in	61 mm	268 mm						36 V
