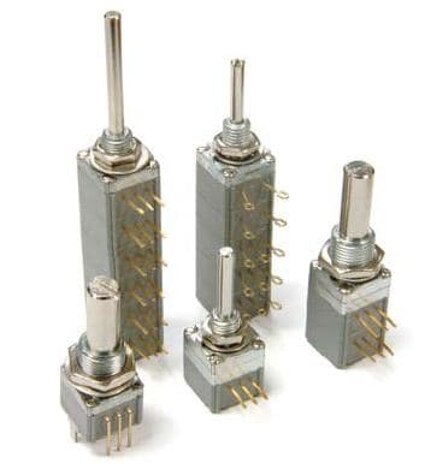

P261P Series

Potentiometers 1/2W 20K Ohms 10% 350 Volts

Manufacturer: TT Electronics/BI

Catalog

Potentiometers 1/2W 20K Ohms 10% 350 Volts

Catalog

Potentiometers 1/2W 20K Ohms 10% 350 Volts

Part	Mounting Type	Built in Switch	Actuator Length [x]	Actuator Length [x]	Power (Watts)	Power (Watts)	Adjustment Type	Taper	Actuator Type	Bushing Thread	Termination Style	Number of Turns	Resistance (Ohms)	Size - Body [x]	Size - Body [x]	Size - Body [y]	Size - Body [y]	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Features	Rotation	Number of Gangs	Tolerance	Resistive Material	Resistance (Ohms)
TT Electronics/BI P261P-D1AS2AB10K	Panel Mount	None	0.63 in	16 mm	0.5 W	0.5 W	User Defined	Linear	Slotted	1/4-32	Solder Lug	1	10k	0.5 "	12.7 mm	0.5 "	12.7 mm	3.2 mm	0.126 in	Sealed	295 °	1	10 %	Conductive Plastic
TT Electronics/BI P261P-S1AS1CB20K	Panel Mount	None	0.472 in	12 mm	0.5 W	0.5 W	User Defined	Linear	Slotted	1/4-32	Solder Lug	1		0.5 "	12.7 mm	0.5 "	12.7 mm	3.2 mm	0.126 in	Sealed	295 °	1	10 %	Conductive Plastic	20 kOhms
TT Electronics/BI P261P-S1BS1CB200K	Panel Mount	None	0.472 in	12 mm	0.5 W	0.5 W	User Defined	Linear	Slotted	3/8-32	Solder Lug	1		0.5 "	12.7 mm	0.5 "	12.7 mm	6.35 mm	0.25 in	Sealed	295 °	1	10 %	Conductive Plastic
TT Electronics/BI P261P-S1BS1CB5K	Panel Mount	None	0.472 in	12 mm	0.5 W	0.5 W	User Defined	Linear	Slotted	3/8-32	Solder Lug	1		0.5 "	12.7 mm	0.5 "	12.7 mm	6.35 mm	0.25 in	Sealed	295 °	1	10 %	Conductive Plastic	5 kOhms
TT Electronics/BI P261P-D1BS2AB10K	Panel Mount	None	0.63 in	16 mm	0.5 W	0.5 W	User Defined	Linear	Slotted	3/8-32	Solder Lug	1	10k	0.5 "	12.7 mm	0.5 "	12.7 mm	6.35 mm	0.25 in	Sealed	295 °	1	10 %	Conductive Plastic
TT Electronics/BI P261P-S1BS3CA500K	Panel Mount	None	0.787 in	20 mm	0.25 W	0.25 W	User Defined	Logarithmic	Slotted	3/8-32	Solder Lug	1		0.5 "	12.7 mm	0.5 "	12.7 mm	6.35 mm	0.25 in	Sealed	295 °	1	10 %	Conductive Plastic	500 kOhms
TT Electronics/BI P261P-S1BS6CA10K	Panel Mount	None	1.26 in	32 mm	0.25 W	0.25 W	User Defined	Logarithmic	Slotted	3/8-32	Solder Lug	1	10k	0.5 "	12.7 mm	0.5 "	12.7 mm	6.35 mm	0.25 in	Sealed	295 °	1	10 %	Conductive Plastic
TT Electronics/BI P261P-S2AS1CB20K	Panel Mount	None	0.472 in	12 mm	0.5 W	0.5 W	User Defined	Linear	Slotted	1/4-32	Solder Lug	1		0.5 "	12.7 mm	0.5 "	12.7 mm	3.2 mm	0.126 in	Sealed	295 °	2	10 %	Conductive Plastic	20 kOhms
TT Electronics/BI P261P-S1BS3CB200K	Panel Mount	None	0.787 in	20 mm	0.5 W	0.5 W	User Defined	Linear	Slotted	3/8-32	Solder Lug	1		0.5 "	12.7 mm	0.5 "	12.7 mm	6.35 mm	0.25 in	Sealed	295 °	1	10 %	Conductive Plastic
