627-W25 Series

Manufacturer: EDAC Inc.

Catalog

627W (WATERPROOF) SERIES VERTICA

Part	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Dielectric Material	Color	Features	Contact Finish	Contact Finish Thickness	Connector Type	Shell Material, Finish	Current Rating (Amps)	Material Flammability Rating	Number of Positions	Number of Rows [custom]	Flange Feature	Connector Style	Contact Type	Ingress Protection	Shell Size, Connector Layout	Shell Size, Connector Layout [x]	Termination	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 627-W25-220-013	85 °C	-25 °C	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Black	Board Lock Grounding Indents	Gold	Flash	Plug Male Pins	Nickel Plated Steel	5 A	UL94 V-0	25	2	Board Side (4-40)	D-Sub	Signal and Power	IP67 - Dust Tight Waterproof	B DB	3	Solder	Panel Mount Through Hole
EDAC Inc. 627-W25-622-012	85 °C	-25 °C	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Black	Grounding Indents	Gold		Plug Male Pins	Nickel Plated Steel	5 A	UL94 V-0	25	2	Board Side (4-40)	D-Sub	Signal and Power	IP67 - Dust Tight Waterproof	B DB	3		Free Hanging (In-Line)	30 Áin	0.76 Ám

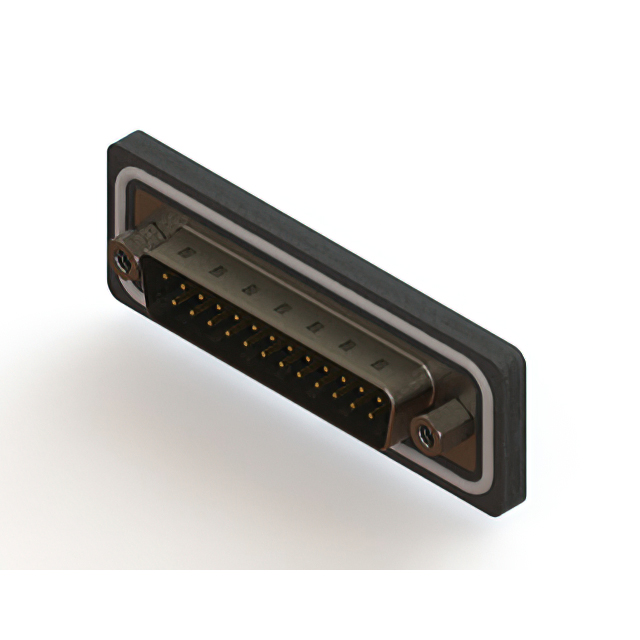

EDAC Inc. 627-W25-320-012	85 °C	-25 °C	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Black	Grounding Indents	Gold		Plug Male Pins	Nickel Plated Steel	5 A	UL94 V-0	25	2	Board Side (4-40)	D-Sub	Signal and Power	IP67 - Dust Tight Waterproof	B DB	3	Solder	Panel Mount Through Hole	15 µin	0.38 µm

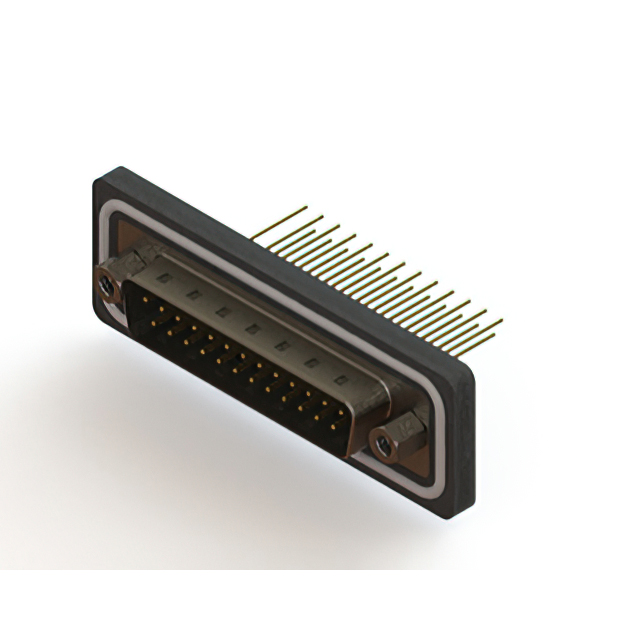

EDAC Inc. 627-W25-621-012	85 °C	-25 °C	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Black	Grounding Indents	Gold		Plug Male Pins	Nickel Plated Steel	5 A	UL94 V-0	25	2	Board Side (4-40)	D-Sub	Signal and Power	IP67 - Dust Tight Waterproof	B DB	3	Solder	Panel Mount Through Hole	30 Áin	0.76 Ám
EDAC Inc. 627-W25-320-013	85 °C	-25 °C	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Black	Board Lock Grounding Indents	Gold		Plug Male Pins	Nickel Plated Steel	5 A	UL94 V-0	25	2	Board Side (4-40)	D-Sub	Signal and Power	IP67 - Dust Tight Waterproof	B DB	3	Solder	Panel Mount Through Hole	15 µin	0.38 µm
EDAC Inc. 627-W25-620-012	85 °C	-25 °C	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Black	Grounding Indents	Gold		Plug Male Pins	Nickel Plated Steel	5 A	UL94 V-0	25	2	Board Side (4-40)	D-Sub	Signal and Power	IP67 - Dust Tight Waterproof	B DB	3	Solder	Panel Mount Through Hole	30 Áin	0.76 Ám

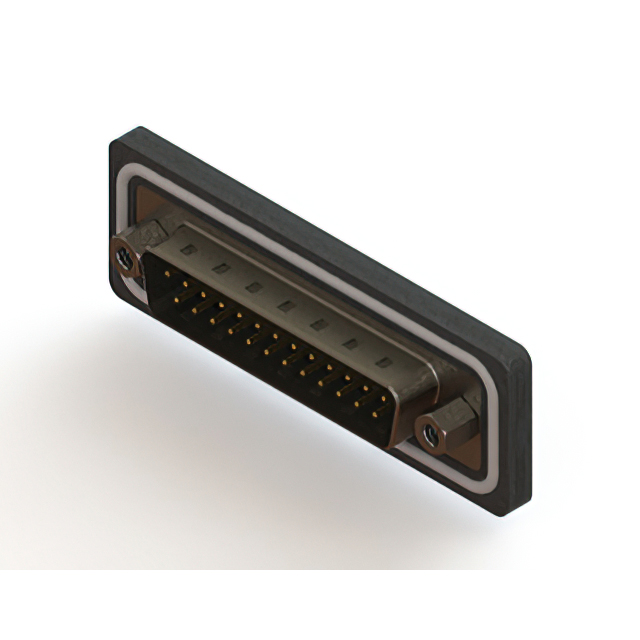

EDAC Inc. 627-W25-322-012	85 °C	-25 °C	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Black	Grounding Indents	Gold		Plug Male Pins	Nickel Plated Steel	5 A	UL94 V-0	25	2	Board Side (4-40)	D-Sub	Signal and Power	IP67 - Dust Tight Waterproof	B DB	3		Free Hanging (In-Line)	15 µin	0.38 µm
EDAC Inc. 627-W25-321-012	85 °C	-25 °C	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Black	Grounding Indents	Gold		Plug Male Pins	Nickel Plated Steel	5 A	UL94 V-0	25	2	Board Side (4-40)	D-Sub	Signal and Power	IP67 - Dust Tight Waterproof	B DB	3	Solder	Panel Mount Through Hole	15 µin	0.38 µm
EDAC Inc. 627-W25-221-012	85 °C	-25 °C	Copper Alloy	Polybutylene Terephthalate (PBT) Glass Filled	Black	Grounding Indents	Gold	Flash	Plug Male Pins	Nickel Plated Steel	5 A	UL94 V-0	25	2	Board Side (4-40)	D-Sub	Signal and Power	IP67 - Dust Tight Waterproof	B DB	3	Solder	Panel Mount Through Hole
