CBS-TF Series

Catalog

BRD SPT SNAP FIT SCREW MNT 5/8"

Part	Material	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Holding Type	Support Hole Diameter	Support Hole Diameter	Support Hole Diameter	Between Board Height	Between Board Height	Between Board Height	Features	Length - Overall	Length - Overall	Mounting Type	Length - Overall [x]	Length - Overall [x]	Mounting Hole Diameter

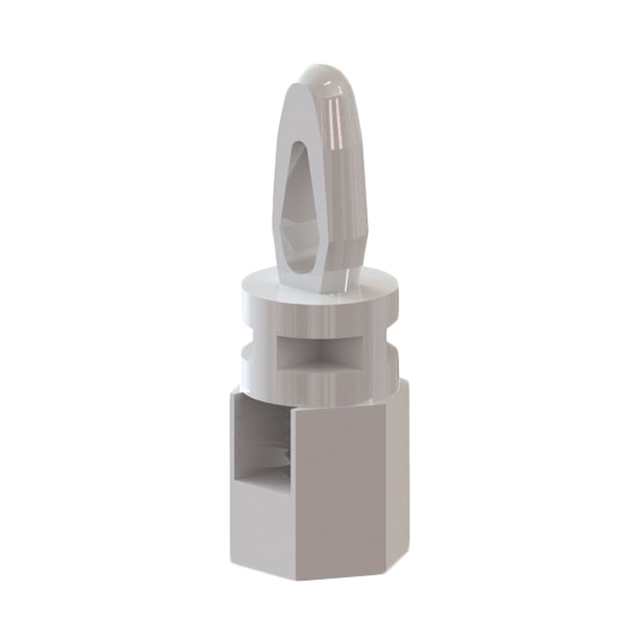

Essentra Components CBS-TF-10-19	Nylon	1.57 mm	0.062 in	0.0625 in	Snap Fit	3.96 mm	5 32"	0.156 in	15.88 mm	0.625 in	5 8	6-32 Thread	26.1 mm	1.028 in	Screw Mount
Essentra Components CBS-TF-6-19	Nylon	1.57 mm	0.062 in	0.0625 in	Snap Fit	3.96 mm	5 32"	0.156 in	9.53 mm	0.375 in	0.375 "	6-32 Thread			Screw Mount	0.776 in	19.7 mm

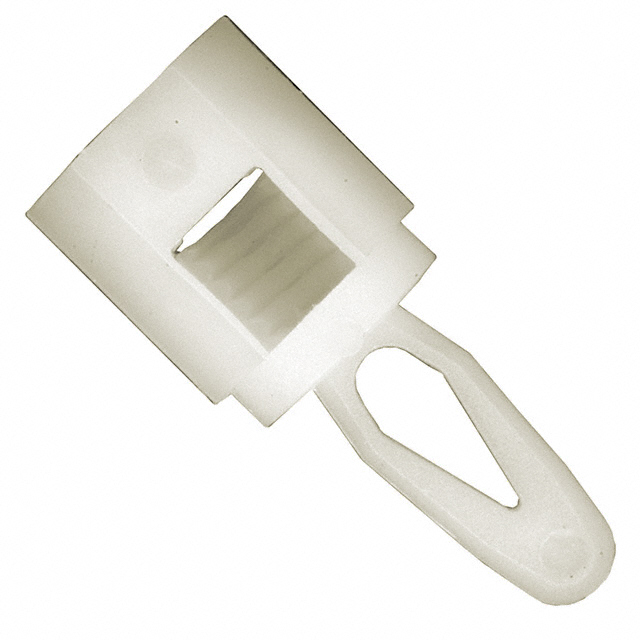

Essentra Components CBS-TF-6-01	Nylon	1.57 mm	0.062 in	0.0625 in	Snap Fit	3.96 mm	5 32"	0.156 in	9.53 mm	0.375 in	0.375 "	6-32 Thread			Screw Mount	0.776 in	19.7 mm
Essentra Components CBS-TF-8-19	Nylon	1.57 mm	0.062 in	0.0625 in	Snap Fit	3.96 mm	5 32"	0.156 in	12.7 mm	0.5 in	0.5 in	6-32 Thread			Screw Mount	0.902 in	22.9 mm
Essentra Components CBS-TF-8-01	Nylon	1.57 mm	0.062 in	0.0625 in	Snap Fit	3.96 mm	5 32"	0.156 in	12.7 mm	0.5 in	0.5 in	6-32 Thread			Screw Mount	0.902 in	22.9 mm

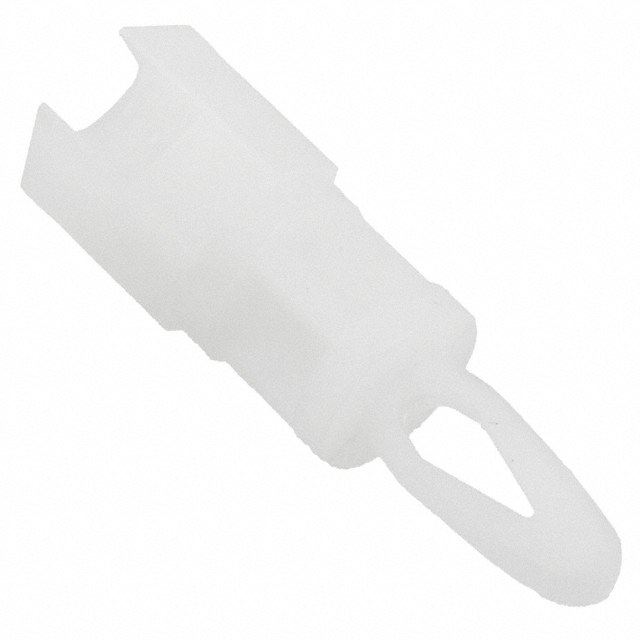

Essentra Components CBS-TF-10-01	Nylon	1.57 mm	0.062 in	0.0625 in	Snap Fit	3.96 mm	5 32"	0.156 in	15.88 mm	0.625 in	5 8	6-32 Thread	26.1 mm	1.028 in	Screw Mount
Essentra Components CBS-TF-M4-14-01

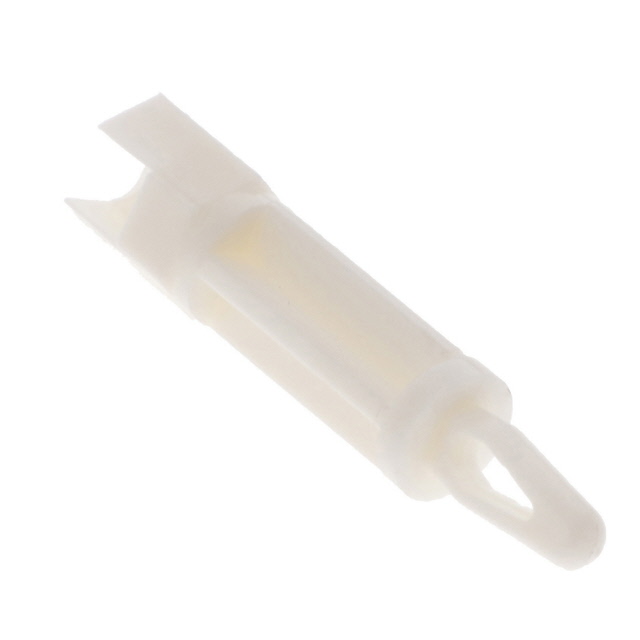

Essentra Components CBS-TF-M4-16-19	Nylon Flame Retardant	1.57 mm	0.062 in	0.0625 in	Arrowhead Snap Fit	3.96 mm	5 32"	0.156 in	25.4 mm	1 in								M4 Thread

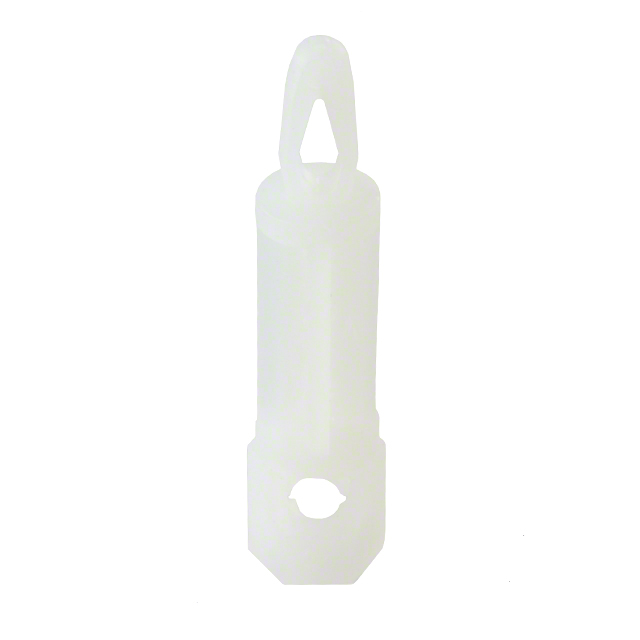

Essentra Components CBS-TF-16-01	Nylon	1.57 mm	0.062 in	0.0625 in	Snap Fit	3.96 mm	5 32"	0.156 in	25.4 mm	1 in		6-32 Thread			Screw Mount	1.402 in	35.6 mm
