AX01 Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS CONN RIGID SIDE R/A 140 POS

Part	Connector Type	Features	Number of Rows [custom]	Mounting Type	Contact Finish	Height Above Board [z]	Height Above Board [z]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Pitch	Pitch	Mated Stacking Heights [Min]	Mated Stacking Heights [Max]	Mated Stacking Heights

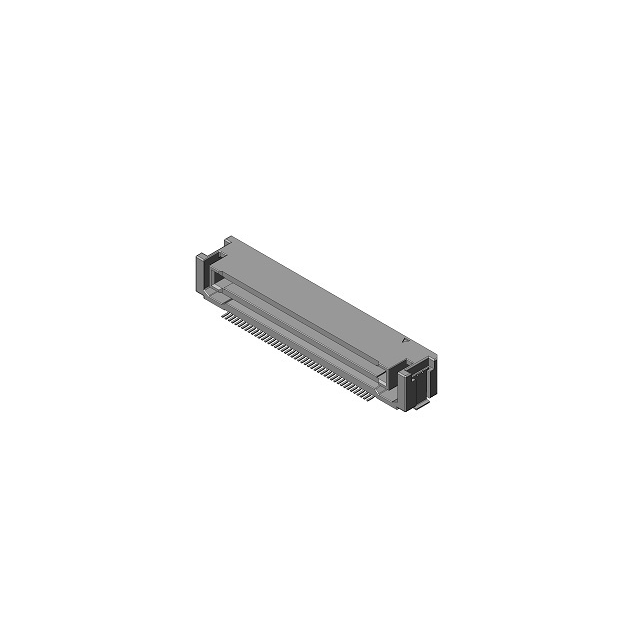

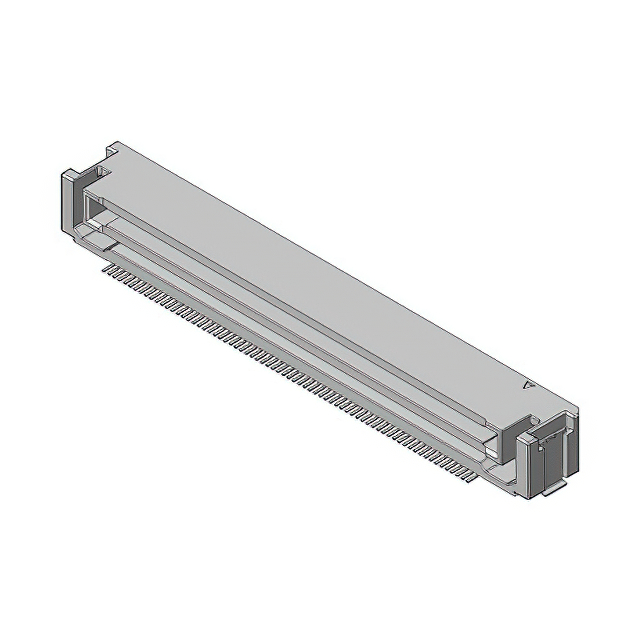

JAE Electronics AX01R140HAYBR600	Plug Outer Shroud Contacts	Board Guide Solder Retention	2	Right Angle Surface Mount	Gold	6.6 mm	0.26 in	0.1 Ám	4 Áin	140	0.64 mm	0.025 in
JAE Electronics AX01F080VACBR150	Receptacle Center Strip Contacts	Board Guide Solder Retention	2	Surface Mount	Gold	18.3 mm	0.72 in	0.1 Ám	4 Áin	80	0.64 mm	0.025 in
JAE Electronics AX01R090HAYBR600	Plug Outer Shroud Contacts	Board Guide Solder Retention	2	Right Angle Surface Mount	Gold	6.6 mm	0.26 in	0.1 Ám	4 Áin	90	0.64 mm	0.025 in

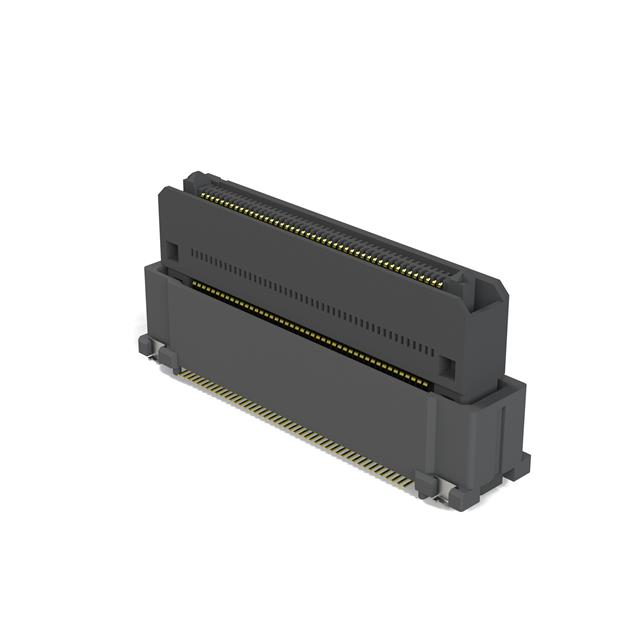

JAE Electronics AX01F090VACBR150	Receptacle Center Strip Contacts	Board Guide Solder Retention	2	Surface Mount	Gold	18.3 mm	0.72 in	0.1 Ám	4 Áin	90	0.64 mm	0.025 in	8 mm	30 mm

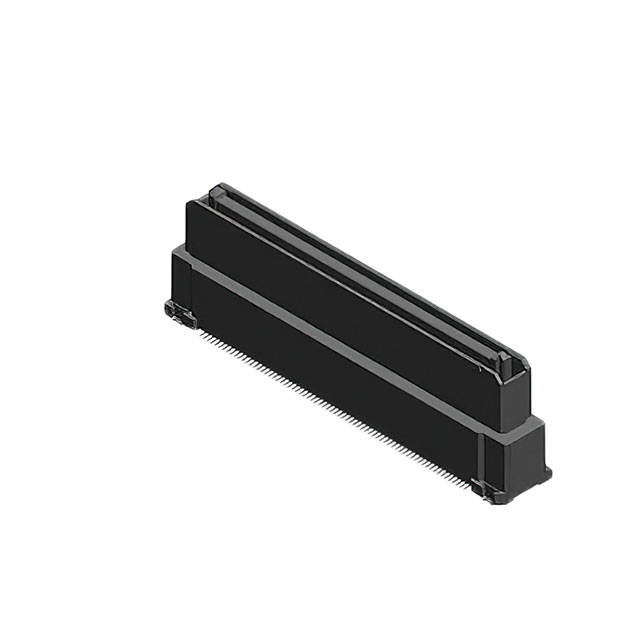

JAE Electronics AX01F140VACBR150	Receptacle Center Strip Contacts	Board Guide Solder Retention	2	Surface Mount	Gold	18.3 mm	0.72 in	0.1 Ám	4 Áin	140	0.64 mm	0.025 in			20 mm 22 mm 30 mm
JAE Electronics AX01F040VAABR500	Receptacle Center Strip Contacts	Board Guide Solder Retention	2	Surface Mount	Gold	6.3 mm	0.248 in	0.1 Ám	4 Áin	40	0.64 mm	0.025 in			8 mm 10 mm 18 mm
