895-020 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 20POS 0.100

...

Part	Material - Insulation	Termination Rows [custom]	Number of Rows [custom]	Contact Finish	Read Out	Pitch	Pitch	Mounting Type	Number of Positions	Flange Feature [diameter]	Flange Feature	Flange Feature [diameter]	Contact Material	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Card Type	Contact Finish Thickness	Contact Finish Thickness	Termination	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Color	Termination Rows	Number of Rows	Features

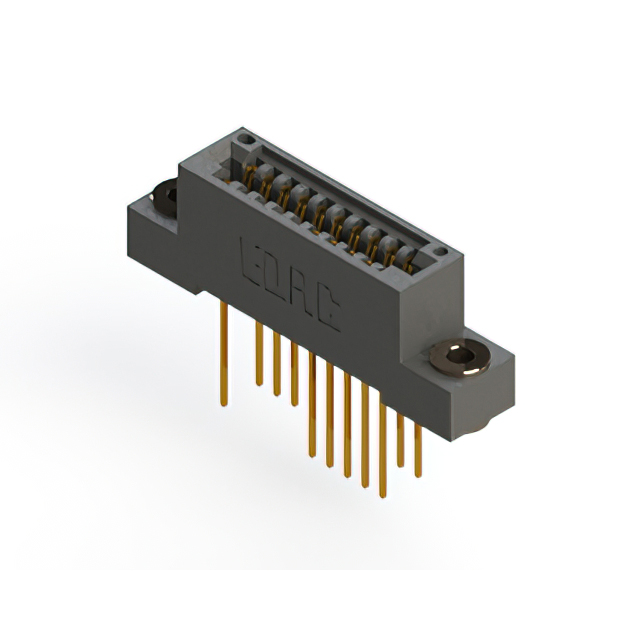

EDAC Inc. 895-020-540-203	Polyphenylene Sulfide (PPS)	2	2	Gold	Dual	0.1 "	2.54 mm	Through Hole	20	0.116 "	Floating Bobbin Flush Mount	2.95 mm	Copper Alloy	10	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.25 Ám	10 Áin	Wire Wrap	Female	125 °C	-40 C	Cantilever	Black

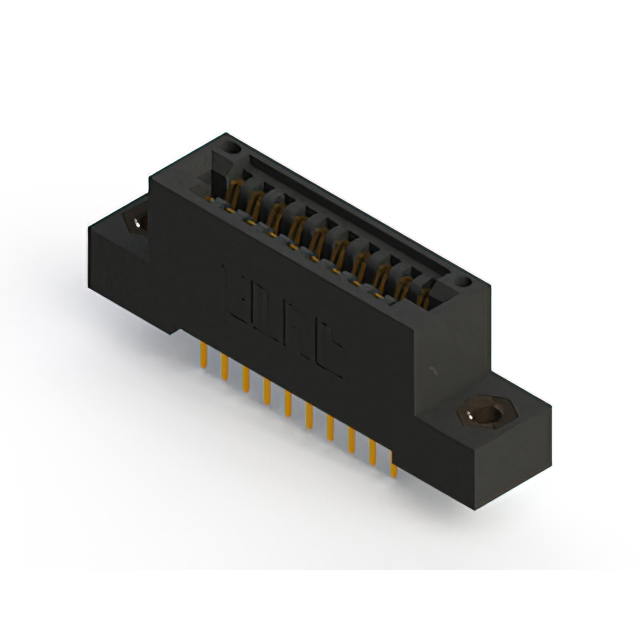

EDAC Inc. 895-020-525-207	Polyphenylene Sulfide (PPS)	2	2	Gold	Dual	0.1 "	2.54 mm	Through Hole	20		Flush Mount M3 Threaded Insert Top Opening		Copper Alloy	10	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.25 Ám	10 Áin	Solder	Female	125 °C	-40 C	Cantilever	Black

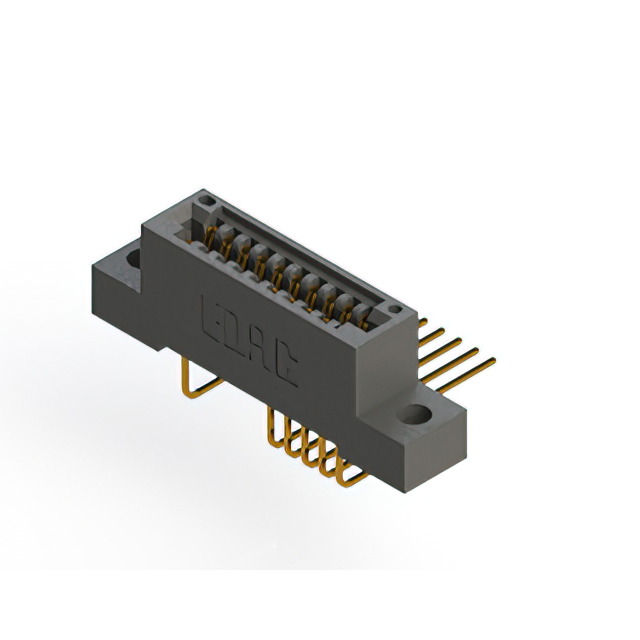

EDAC Inc. 895-020-558-204	Polyphenylene Sulfide (PPS)	2	2	Gold	Dual	0.1 "	2.54 mm	Right Angle Through Hole	20	0.156 "	Flush Mount Top Opening Unthreaded	3.96 mm	Copper Alloy	10	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.25 Ám	10 Áin	Solder	Female	125 °C	-40 C	Cantilever	Black

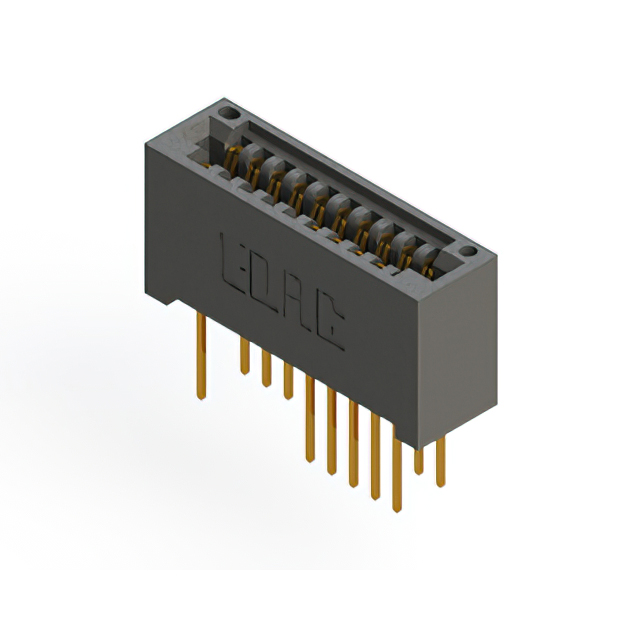

EDAC Inc. 895-020-523-201	Polyphenylene Sulfide (PPS)	2	2	Gold	Dual	0.1 "	2.54 mm	Through Hole	20				Copper Alloy	10	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.25 Ám	10 Áin	Solder	Female	125 °C	-40 C	Cantilever	Black

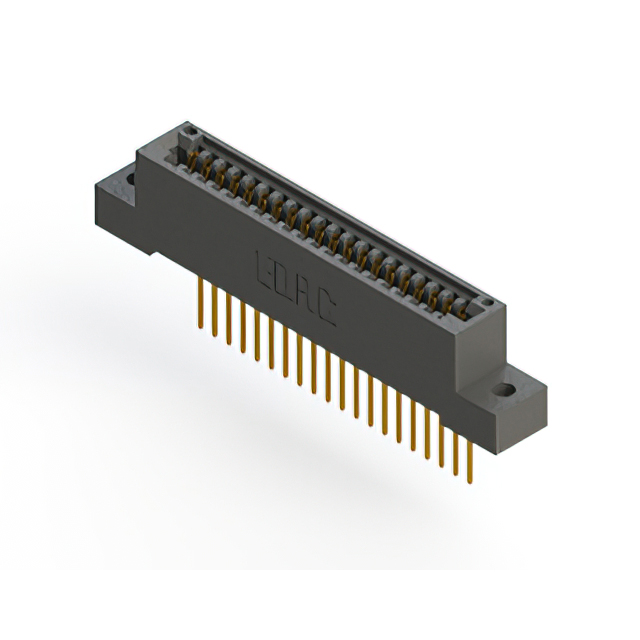

EDAC Inc. 895-020-540-102	Polyphenylene Sulfide (PPS)			Gold	Single	0.1 "	2.54 mm	Through Hole	20	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Copper Alloy	20 Bay/Row	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	0.25 Ám	10 Áin	Wire Wrap	Female	125 °C	-40 C	Cantilever	Black	1	1

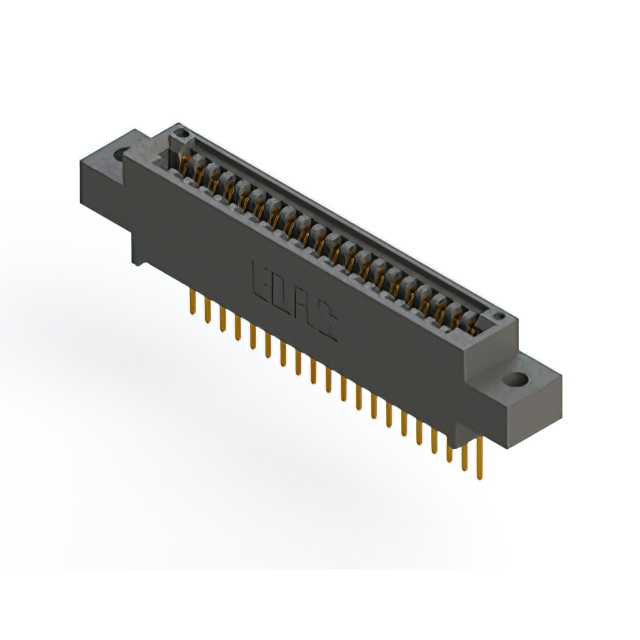

EDAC Inc. 895-020-523-602	Polyphenylene Sulfide (PPS)			Gold	Single	0.1 "	2.54 mm	Through Hole	20	0.128 "		3.25 mm	Copper Alloy	20 Bay/Row	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	0.25 Ám	10 Áin	Solder	Female	125 °C	-40 C	Cantilever	Black	1	1

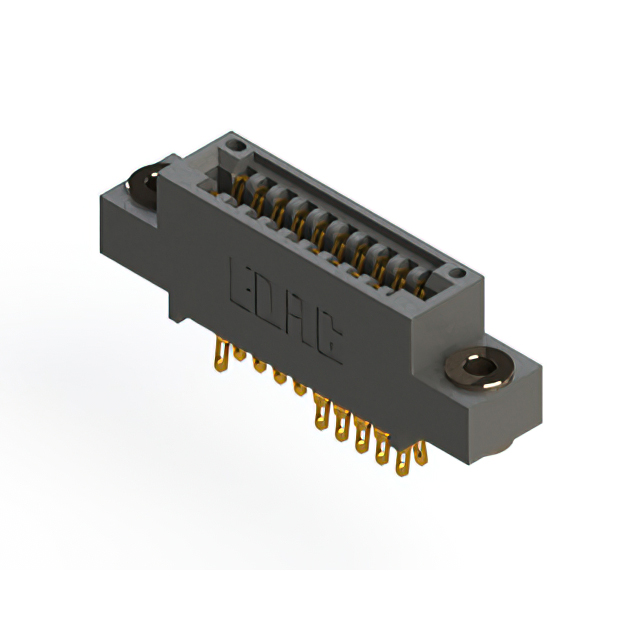

EDAC Inc. 895-020-555-503	Polyphenylene Sulfide (PPS)	2	2	Gold	Dual	0.1 "	2.54 mm	Board Edge Straddle Mount	20	0.116 "	Floating Bobbin Top Mount Opening	2.95 mm	Copper Alloy	10	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.25 Ám	10 Áin	Solder	Female	125 °C	-40 C	Cantilever	Black			Card Extender

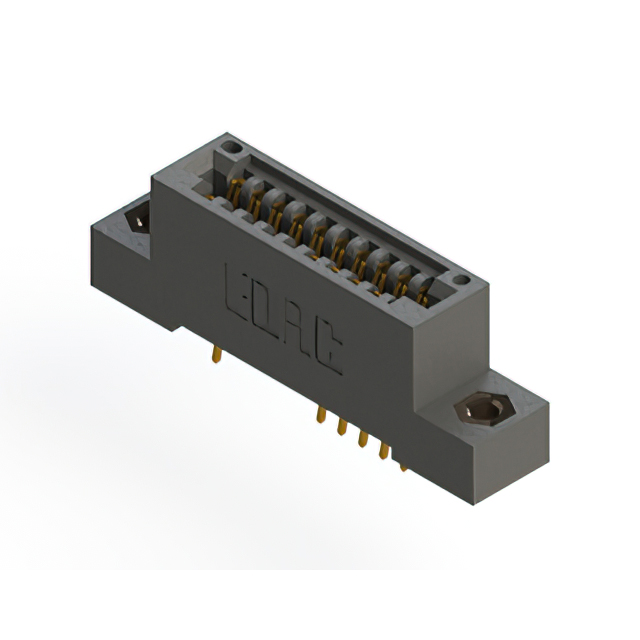

EDAC Inc. 895-020-556-207	Polyphenylene Sulfide (PPS)	2	2	Gold	Dual	0.1 "	2.54 mm	Board Edge Straddle Mount	20		Flush Mount M3 Threaded Insert Top Opening		Copper Alloy	10	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.25 Ám	10 Áin	Solder	Female	125 °C	-40 C	Cantilever	Black			Card Extender

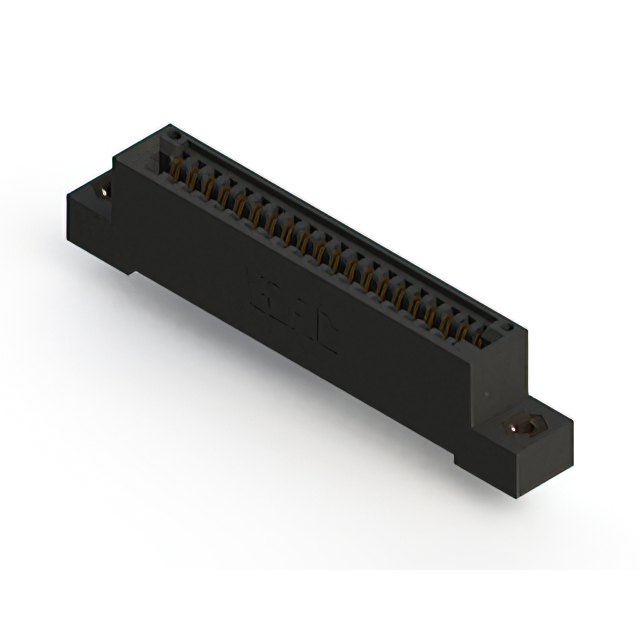

EDAC Inc. 895-020-500-108	Polyphenylene Sulfide (PPS)			Gold	Single	0.1 "	2.54 mm	Through Hole	20		4-40 Threaded Insert Top Mount Opening		Copper Alloy	20 Bay/Row	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Single Edge	0.25 Ám	10 Áin	Solder Eyelet(s)	Female	125 °C	-40 C	Cantilever	Black	1	1

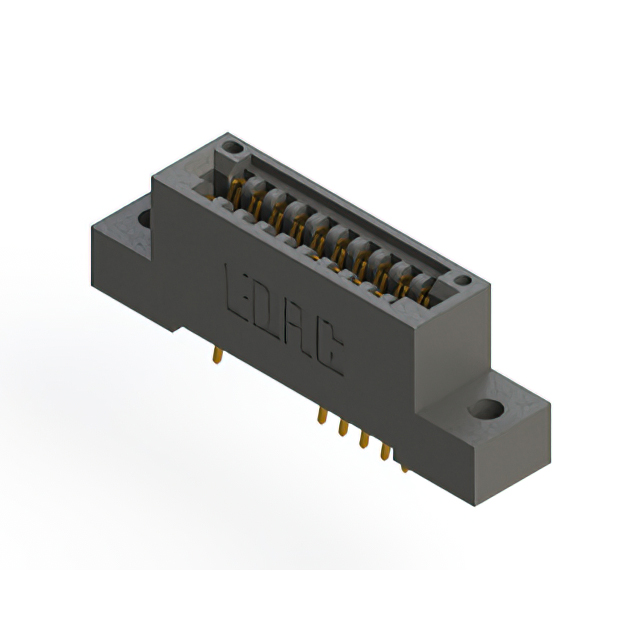

EDAC Inc. 895-020-556-202	Polyphenylene Sulfide (PPS)	2	2	Gold	Dual	0.1 "	2.54 mm	Board Edge Straddle Mount	20	0.128 "	Flush Mount Top Opening Unthreaded	3.25 mm	Copper Alloy	10	0.07 in 1.78 mm	0.054 in 1.37 mm	Non Specified - Dual Edge	0.25 Ám	10 Áin	Solder	Female	125 °C	-40 C	Cantilever	Black			Card Extender
